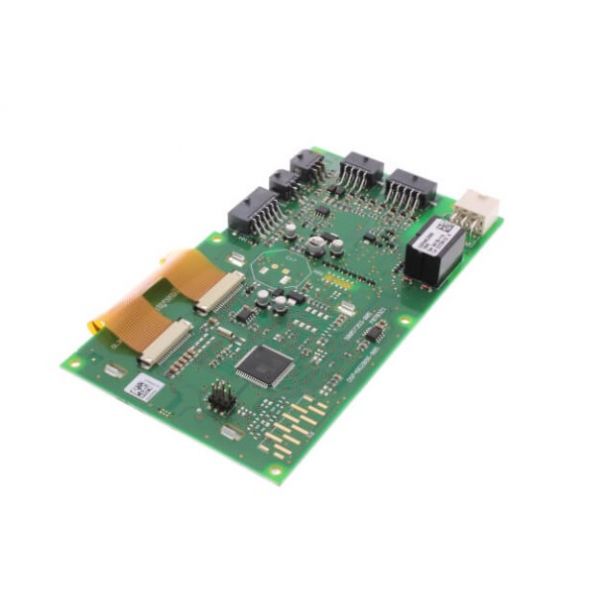

Weber Huff PTRKIT207 Trimax Display Control Module

Product Description

The WEBER HUFF PTRKIT207 is a Trimax display control module designed to serve as both the controller and monitor for condensing boiler systems. The module manages temperature regulation, pressure monitoring, and heating demand to maintain efficient boiler operation. Its digital interface supports system diagnostics, programming, and operational adjustments without requiring specialized programming tools. Licensed HVAC technicians and hydronic heating contractors install this module as part of boiler commissioning or control replacement service on residential and light commercial systems.

The PTRKIT207 is intended for use with Prestige Solo and Prestige Excellence condensing boilers. Its plug-and-play design reduces installation time and limits system downtime during servicing. The digital display allows technicians to read live system data and adjust parameters directly at the unit, making it practical for both initial setup and ongoing service calls in residential and light commercial hydronic heating applications.

Key Features

• Functions as combined controller and monitor for condensing boiler systems
• Manages temperature, pressure, and heating demand from a single module
• Digital interface supports diagnostics, programming, and system adjustments
• Plug-and-play installation reduces service time and system downtime
• Suited for residential and light commercial hydronic heating systems

Compatibility

Designed for use with Triangle Tube Prestige Solo and Prestige Excellence condensing boilers.

Installation Notes

Installation should be performed by a licensed HVAC technician or hydronic heating contractor familiar with condensing boiler controls. Power down the boiler and allow system pressure to normalize before removing or installing any control module. Follow the boiler manufacturer service documentation for wiring connections and parameter configuration. Local mechanical codes and the boiler manufacturer startup procedures should be observed during commissioning.

Technical Specifications

• Application: Condensing boiler display control module
• System Type: Residential and light commercial hydronic heating

Standard Information

• Brand: WEBER HUFF
• Manufacturer Part Number: PTRKIT207
