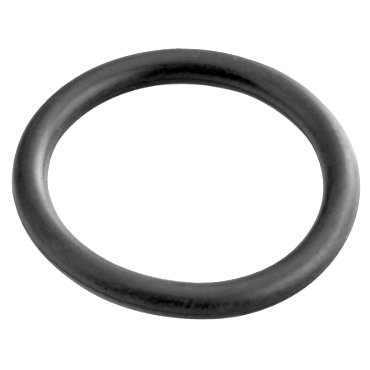

Weatherhead by Danfoss 4629X10 Replacement O-Ring

Product Description

The Weatherhead by Danfoss O-Ring with MPN 4629X10 is designed for sealing applications with five-eighths inch outer diameter tubes. This O-Ring plays a critical role in maintaining the integrity of hydraulic and pneumatic systems.

• Compatible with five-eighths inch outer diameter tubes
• Made from 90 Durometer Buna-N Nitrile Rubber
• Operating temperature range from minus forty degrees Fahrenheit to two hundred fifty degrees Fahrenheit

Product Highlights

This O-Ring enhances system reliability and protects against leaks, thus improving the efficiency of maintenance operations.

Product Information

Standard Information

• Brand: Weatherhead by Danfoss
• Part Number: 101773111

Technical Specifications

• Tube OD: 5/8 in
• Fitting Description: O-Ring, For Seal
• End Size: 5/8 Face Seal(f)
• Application: High Pressure Hydraulic, Pneumatic & Chemical Processing
• End Types: FOR-SEAL
• O.D.: 0.614 in
• Material: 90 Durometer Buna-N Nitrile Rubber
• Temperature Range (Max): 250 °F
• Temperature Range (Min): -40 °F
• Weight: 0.426 LB
• EAN or UPC: 725975046203
