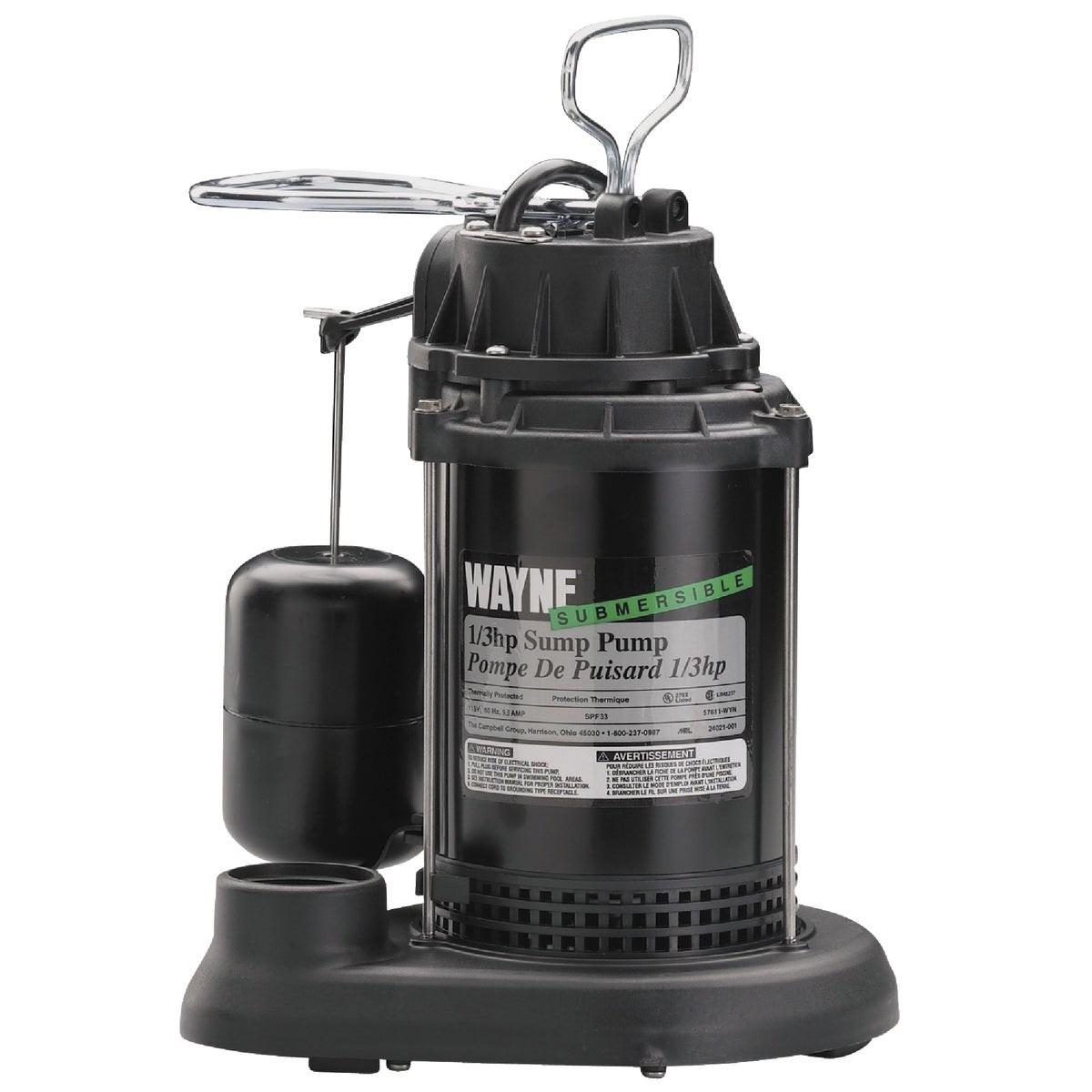

Wayne Water Systems SPF33-57610 Submersible Sump Pump 1/3 Hp

Product Description

The WAYNE WATER SYSTEMS SPF33-57610 is a 1/3 HP, 115-volt submersible sump pump designed for automatic water removal in residential sump pits. The float switch provides automatic start and stop operation with a 2-pole positive on/off action, and the disconnecting conductors are designed to reduce risk of lightning damage. A top suction strainer eliminates the need for additional intake protection. The motor is oil-encased for quiet, cool operation and permanent lubrication. A watertight ceramic shaft seal, liquid lubricated, keeps water out of the motor housing. Automatic overload protection prevents damage to motor windings during demanding conditions.

The SPF33-57610 is suited for residential sump pit applications and can operate in pits as small as 12 inches in diameter, making it compatible with tight installations where clearance is limited. The 1.5-inch discharge port connects to standard sump discharge piping. The pump ships with an 8-foot, 3-prong waterproof grounding-type cord set that is UL listed and CSA approved. This pump is typically installed by plumbers or knowledgeable homeowners in below-grade basement sump applications where groundwater intrusion management is required.

Key Features

• 1/3 HP motor with oil-encased housing for quiet and cool operation
• 2-pole float switch with positive on/off action for automatic operation
• Disconnecting 115V conductors designed to reduce lightning damage risk
• Watertight ceramic shaft seal, liquid lubricated, prevents water ingress into motor
• Automatic overload protection guards motor windings against damage
• Operates in sump pits as small as 12 inches in diameter
• 8-foot waterproof 3-prong grounding cord, UL listed and CSA approved

Compatibility

Designed as an OEM-style replacement or direct installation unit for residential sump pit systems requiring a 1/3 HP, 115-volt submersible pump with a 1.5-inch discharge connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with local plumbing codes. Disconnect power at the breaker before lowering the pump into the pit or making any wiring connections. Ensure the discharge line is properly sized and routed to an approved outlet point. Do not run the pump dry, and verify the float switch has adequate clearance to cycle without obstruction.

Technical Specifications

• Motor Output: 1/3 HP
• Voltage: 115 volts
• Discharge Size: 1.5 inches
• Minimum Pit Diameter: 12 inches
• Cord Length: 8 feet
• Weight: 13.55 pounds
• Certifications: UL Listed, CSA Approved
• Warranty: 1 year

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: SPF33-57610
