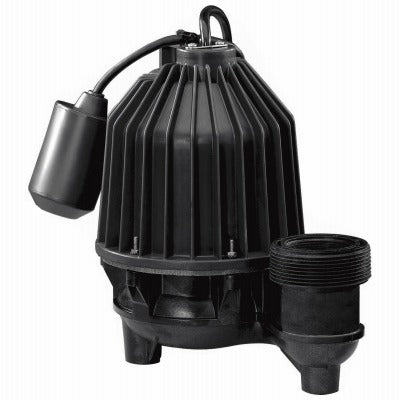

Wayne Water Systems SEL50 Submersible Sewage Pump 1/2 Hp

Product Description

The WAYNE WATER SYSTEMS SEL50 is a thermoplastic submersible sewage pump rated at 1/2 HP and designed for residential and light-commercial sewage ejection applications. It delivers a maximum flow rate of 7,800 gallons per hour and maintains 6,420 GPH at 10 feet of discharge lift. The pump features a combination 2-inch to 3-inch NPT discharge port and is capable of handling solids up to 2 inches in diameter. A piggyback tether float switch enables both automatic and manual operation. Licensed plumbers install this pump in below-grade sewage ejector pits as part of gravity-drain or lift-station systems.

The SEL50 is suited for residential sewage ejector systems where toilets, laundry fixtures, or other below-grade drains must pump effluent up to a gravity sewer line. The combination NPT discharge fitting accommodates existing 2-inch or 3-inch discharge piping, allowing installation in most ejector pits without plumbing modifications. The piggyback float switch allows the installer to run the pump manually during commissioning or testing by bypassing the float, then returning to automatic operation without rewiring.

Key Features

• Maximum flow rate of 7,800 GPH with 6,420 GPH at 10 feet of discharge lift
• Combination 2-inch to 3-inch NPT discharge handles solids up to 2 inches in diameter
• Piggyback tether float switch for automatic or manual operation without rewiring
• Corrosion-resistant reinforced thermoplastic construction with cast iron seal plate
• Lower ball bearings for reduced noise during operation
• Easy-access handle for portability and pit placement
• Drop-in replacement fit eliminates plumbing changes in most existing ejector systems

Compatibility

Designed as a replacement-style submersible sewage pump compatible with most residential sewage ejector pit installations using 2-inch or 3-inch NPT discharge piping, without requiring plumbing modifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Disconnect and lock out electrical power before lowering the pump into the ejector pit or servicing any components. Verify the discharge check valve is in good condition before commissioning. The piggyback float plug should be connected to the outlet before the pump plug to preserve automatic operation.

Technical Specifications

• Motor Output: 1/2 HP
• Maximum Flow Rate: 7,800 gallons per hour
• Flow Rate at 10 Feet Discharge Lift: 6,420 gallons per hour
• Discharge Connection: Combination 2-inch to 3-inch NPT
• Maximum Solid Size: 2 inches
• Construction Material: Reinforced thermoplastic with cast iron seal plate
• Float Switch: Piggyback tether float, automatic and manual operation
• Weight: 26 pounds
• Package Quantity: 1

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: SEL50
