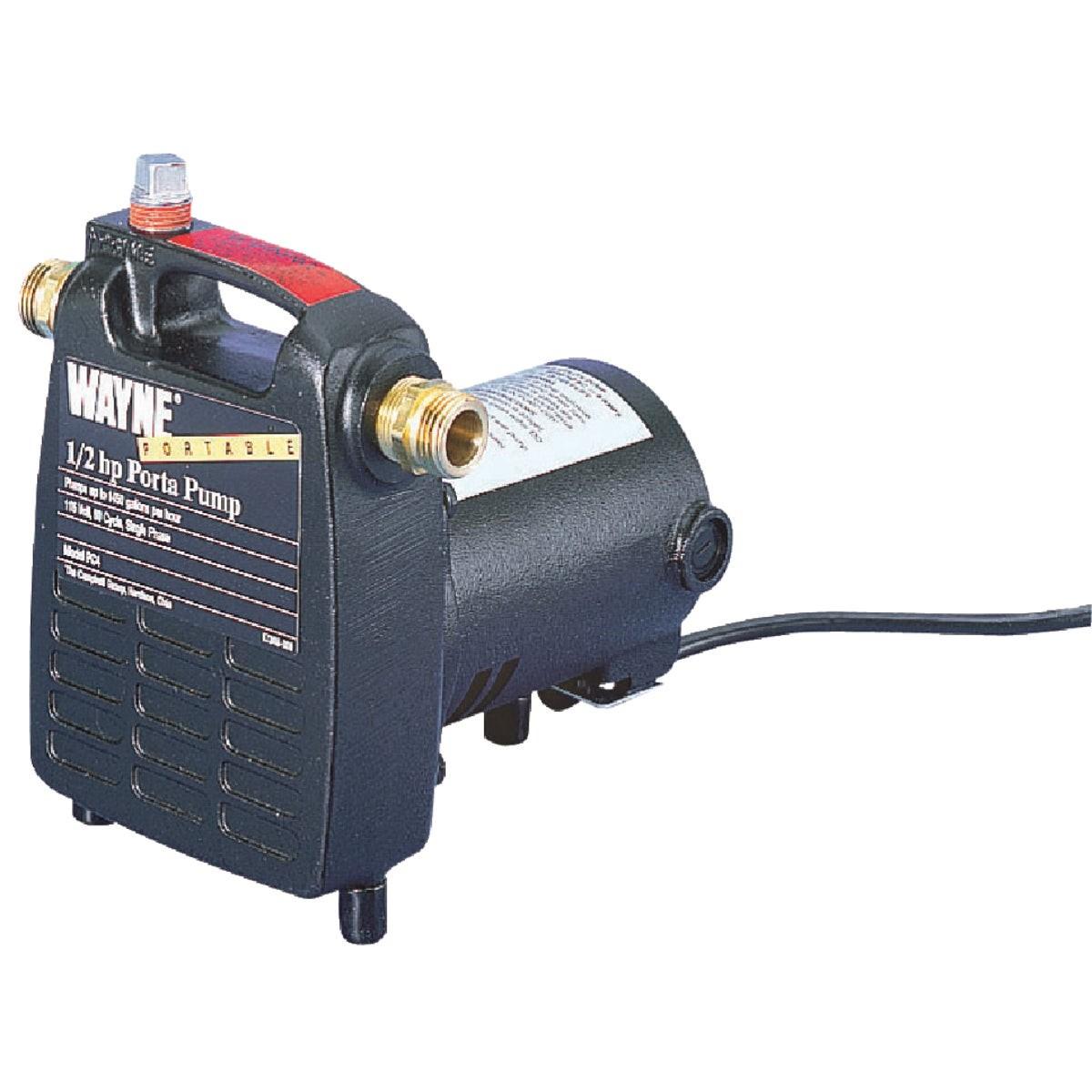

Wayne Water Systems PC4-55832 Portable Water Transfer Pump

Product Description

The WAYNE WATER SYSTEMS PC4-55832 is a portable, non-submersible electric water transfer pump built around a rugged cast iron pump and motor housing. Rated at 1/2 HP and 115 volts, it delivers a maximum flow rate of 1450 GPH and can generate up to 50 psi at the outlet hose, making it capable of handling far more than simple drainage tasks. The cast iron construction provides durability in demanding conditions, and the 3/4-inch brass hose connections resist thread stripping while accepting standard garden hoses. This pump is suited for plumbers, contractors, and property maintenance professionals who need a reliable, portable solution for water transfer or pressure tasks.

The PC4-55832 is designed for a wide range of portable water-moving applications. It can pump water out of flooded basements, stock tanks, and boats. It is also capable of boosting line pressure to irrigate lawns and gardens or wash vehicles and hard surfaces. At 15 feet of suction lift, the pump delivers 1270 GPH, maintaining strong performance in elevated-inlet scenarios. The included suction strainer filters debris at the inlet to protect the pump internals during operation.

Key Features

• 1/2 HP cast iron motor and pump housing for durability in heavy-use conditions
• Maximum flow rate of 1450 GPH; 1270 GPH at 15 feet of suction lift
• Generates up to 50 psi at the outlet hose for pressure washing and irrigation
• Up to 15 feet of suction lift at the inlet hose
• 3/4-inch brass hose connections compatible with standard garden hoses
• Included suction strainer filters debris before it enters the pump
• Non-submersible design for above-water portable use

Compatibility

Designed as a portable, non-submersible water transfer pump that connects to standard 3/4-inch garden hose fittings at both inlet and discharge.

Installation Notes

This pump is a non-submersible unit and must not be submerged during operation. Before connecting or disconnecting hoses, ensure the power supply is disconnected. Use the included suction strainer at the inlet and verify all hose connections are hand-tight and secure before energizing the pump. Consult local plumbing codes where applicable when using this pump for pressure-boosting applications.

Technical Specifications

• Power: 1/2 HP
• Voltage: 115 volts
• Maximum Flow Rate: 1450 GPH
• Flow Rate at 15 Feet Suction Lift: 1270 GPH
• Maximum Outlet Pressure: 50 psi
• Maximum Suction Lift: 15 feet
• Hose Connection Size: 3/4 inches
• Hose Connection Material: Brass
• Housing Material: Cast Iron
• Submersible: No
• Weight: 20.3 pounds

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: PC4-55832
