Product Description

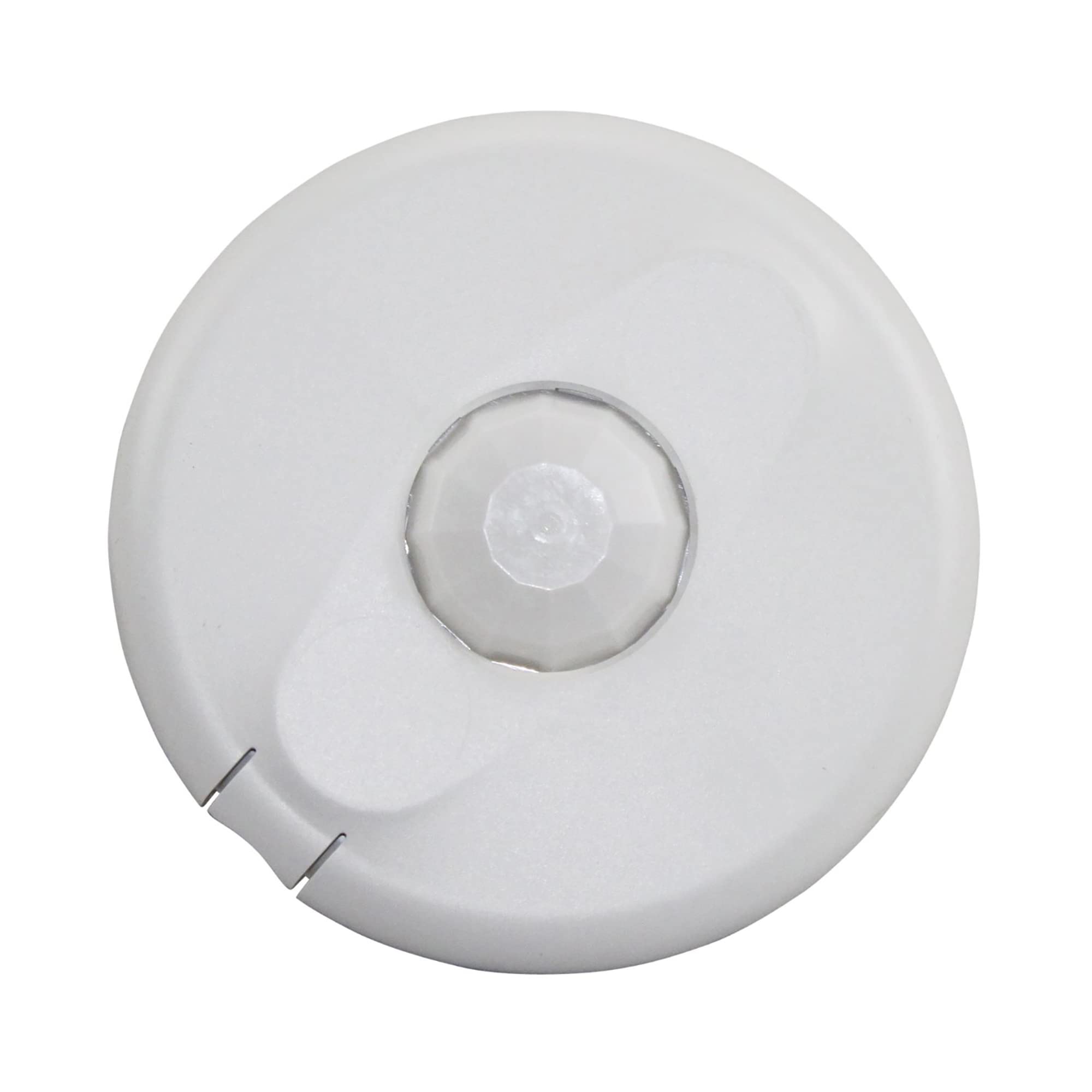

The WATTSTOPPER UT-305-3 Ultrasonic Ceiling Sensor automatically turns lighting on and off based on occupancy. This sensor mounts on the ceiling with a flat, unobtrusive appearance and provides 360° coverage. It has a sensing range of 2000 sq ft and operates on 24VDC/VAC.
- Ceiling mount with a flat, unobtrusive appearance
- Provides 360° coverage

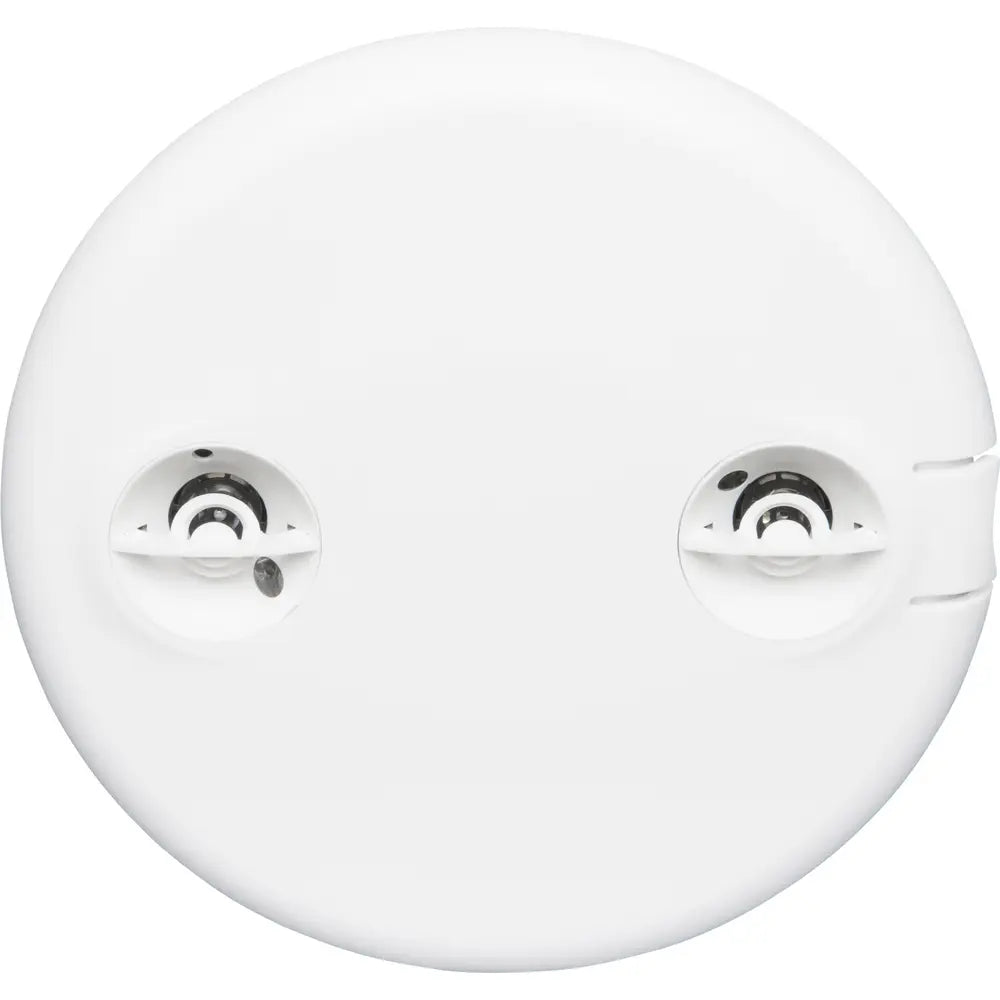

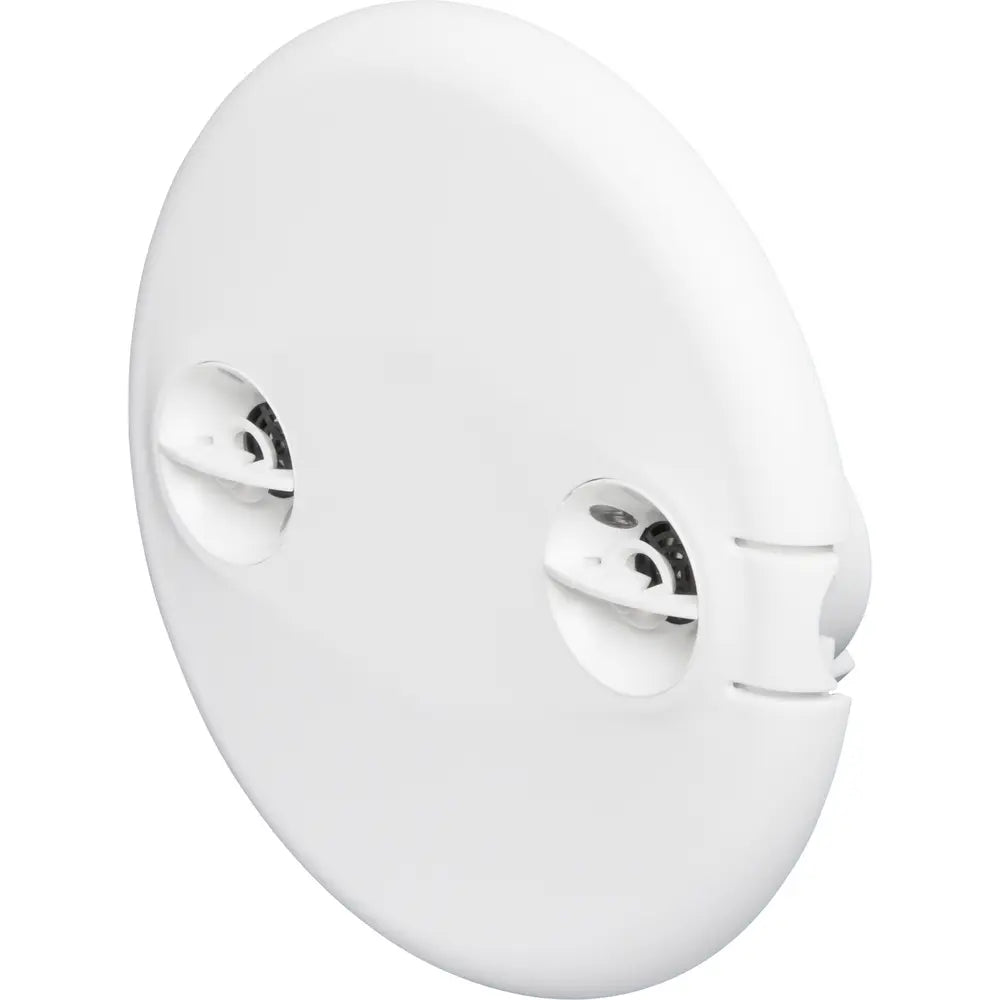

- Ultrasonic diffusers give more comprehensive coverage
Product Highlights
The UT-305-3 occupancy sensor provides comprehensive coverage and automatically controls lighting based on room occupancy.
Product Information
Standard Information
-
Brand: WATTSTOPPER
-
Manufacturer Part Number: UT-305-3
-
Country of Origin: China
Technical Specifications
-
Type: Ceiling Occupancy Sensors
-
Color: White
-
Sensor: Ultrasonic
-
Diameter: 4.5 Inches
-
Mounting: Ceiling
-
Standard: UL and cUL listed
-
Sensing Range: 10 x 66 ft, 46 x 46 ft
-
Supply Voltage: 24 Volts Direct Current
24 Volts Alternating Current
-
Environmental Conditions: 95% Humidity, UL 94 Requirements, V2 Rated Flammability
-
Timer Range: 5 to 30 Minutes
-
Installation Type: Ceiling Mount
-
Lighting Sensor Type: Ultrasonic
-
Time Delay Type: Adjustable
-
Area Coverage: 2000 SQ FT
-
Field of View: 360 DEG
-
Time Delay: 5/10/15/20/30 MIN (FIXED)
-
Voltage: 24 VDC
-
Product Series: UT-305
-
Material: ABS
-
Finish: Glossy
-
Application Sector: Commercial
-
Product Line: Wattstopper
-
Adjustable Time Delay: Yes
-
Indicator Lights: Yes
-
Power Pack Required: Yes
-
Sensitivity Adjustment: Ultrasonic (0-100%)
-
Included: Mounting Screws
-
Installation Location: Ceiling
-
Product Depth US: 1.6 in
-
Product Height US: 4.5 in
-
Product Width US: 4.5 in
-
Product Environmental Profile: Yes
-
RoHS Compliant: Yes
-
Current Draw: 25 mA
-
On Function: Auto On
-

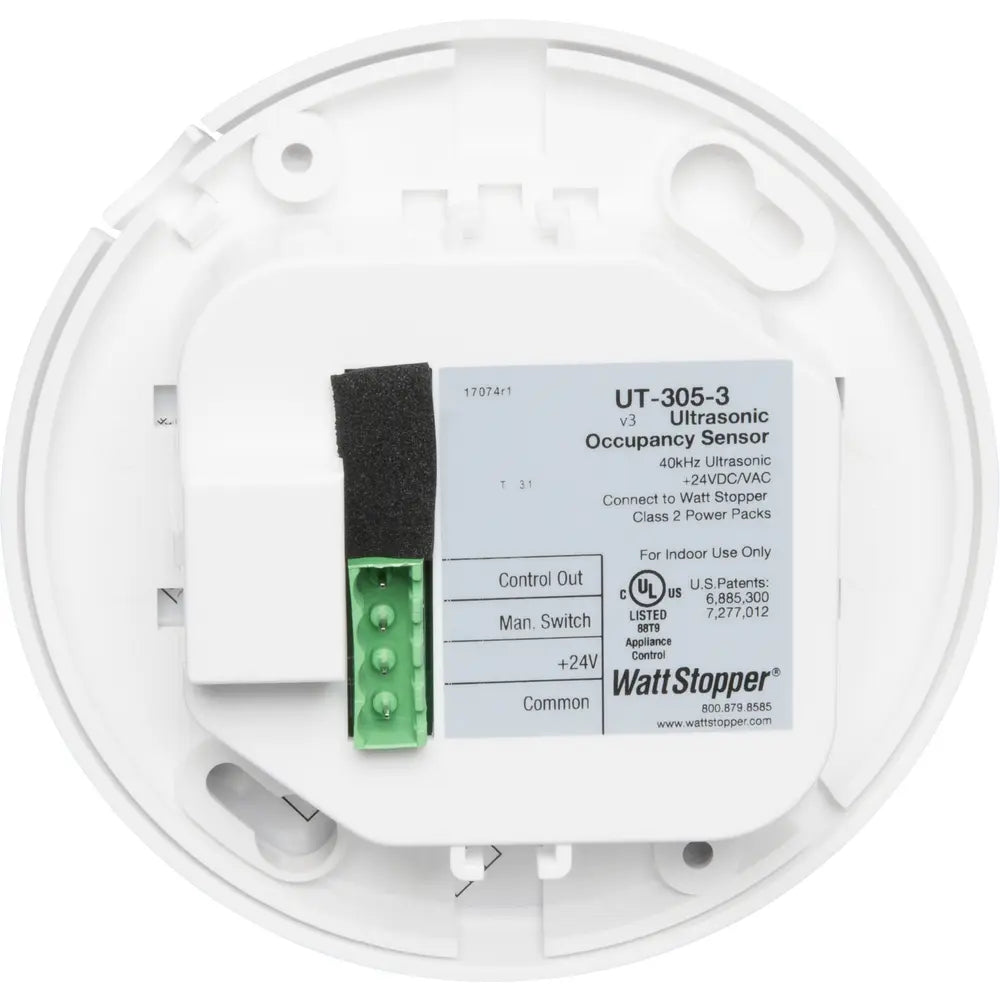

Wire Connection Type: Terminal Block
-
Compatibility: BZ Power Packs
-
Has Battery: No
-
Indicator: True
-
Indoor/Outdoor: Indoor
-
Input Voltage: 24 VDC/VAC
-
Location Rating: Dry
-
Mounting Type: 4 in Octagonal J-Box, Ceiling Tile, Surface
-
Timer Type: DIP Switch
-
Timer Duration: 30 Seconds, 5-30 Minutes
-
Operating Temperature: 0°-55°C, 32°-131°F
-
Operating Temperature Max: 131 °F
-
Operating Temperature Min: 32 °F
-
Operating Humidity: 5-95% RH (Non-Condensing)
-
Sensor Type: Occupancy
-
Sensor Technology: Ultrasonic
-
Sensor Coverage: 2000 sq ft
-
Sensor Coverage Pattern: 360 °
-
Sensor Mounting Height: 8-10 ft
-
Ultrasonic Frequency: 40 kHz
-
Storage Temperature: 23° - 176° F, -5° - 80° C
-
Power Source: Corded Electric
-
Maximum Range: 2000 Feet
-
Batteries Included?: No
-
Batteries Required?: No
-
Assembled Diameter: 4.5 Inches
-
Field of View - deg: 360-deg
-
Coverage - area: 2000 sq. ft.
-
Mount: Ceiling Opening
-
Applications: For Restrooms, Large Office, Open Office, Hallways, Commercial
-
Enclosure: Plastic Housing
-
Operating Cycles: 1 x 106
-
Brand: Legrand
-
Sub Brand: Pass & Seymour
-
Product UPC: 75418291519
-
Operating Temperature Celsius: 35degrees C
-
Manufacturer: Wattstopper
-
Smart Home Compatibility: Not Smart Home Compatible
-
Part Number: UT-305-3
-
Item model number: UT-305-3
-
Style: Minimalist
-
Item Package Quantity: 1
-
Number Of Pieces: 1
-
Cutting Diameter: 4.5 Inches
-
Compatible Devices: BAS, HVAC, Lighting Controls
-
Temperature Range: 2E+1 Degrees Celsius
-
Size: 4.5 inches diameter x 1.02 inches depth
