Wattstopper LMSW-241-W DLM Wired Standard Switch 0.168 W (4B 1R)

Product Description

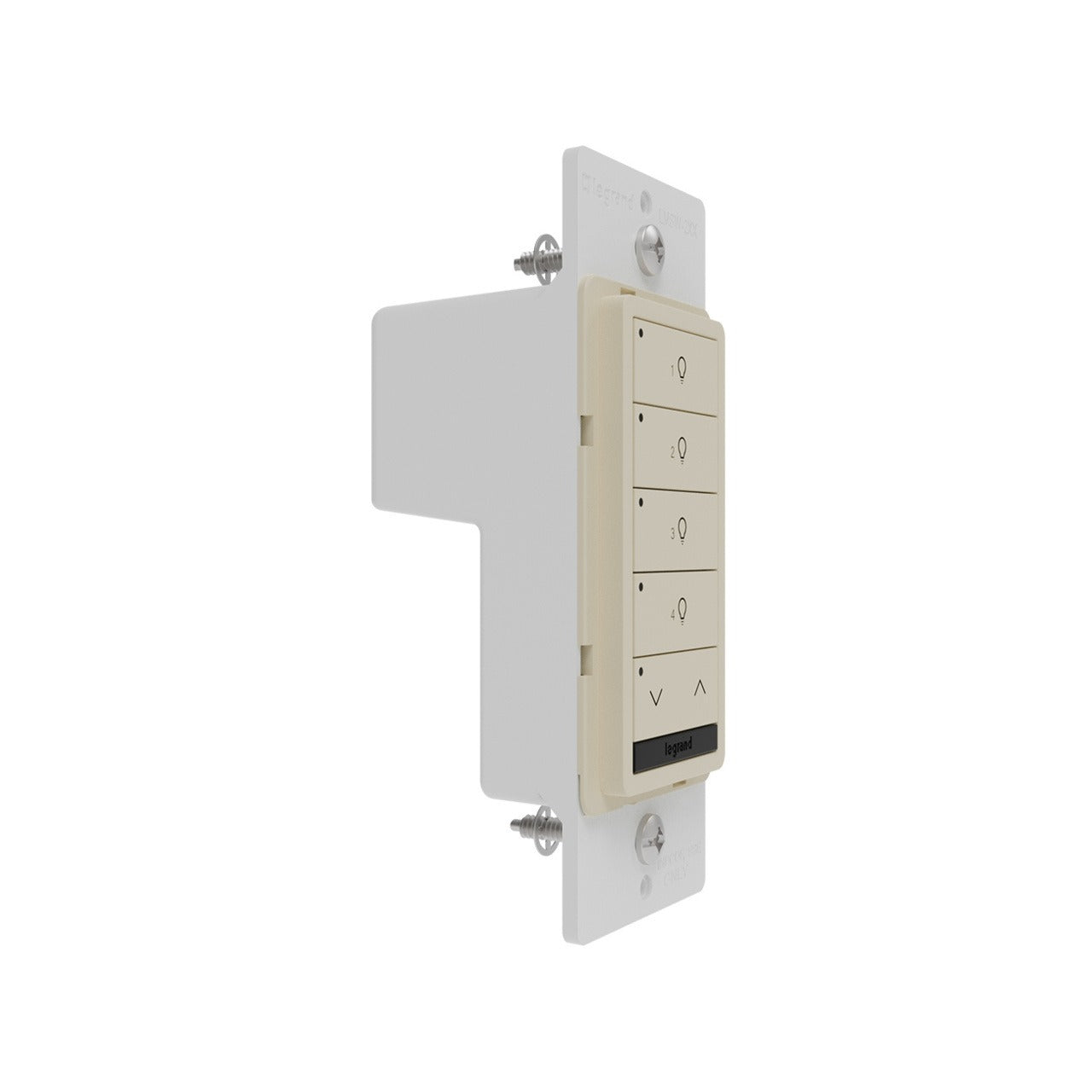

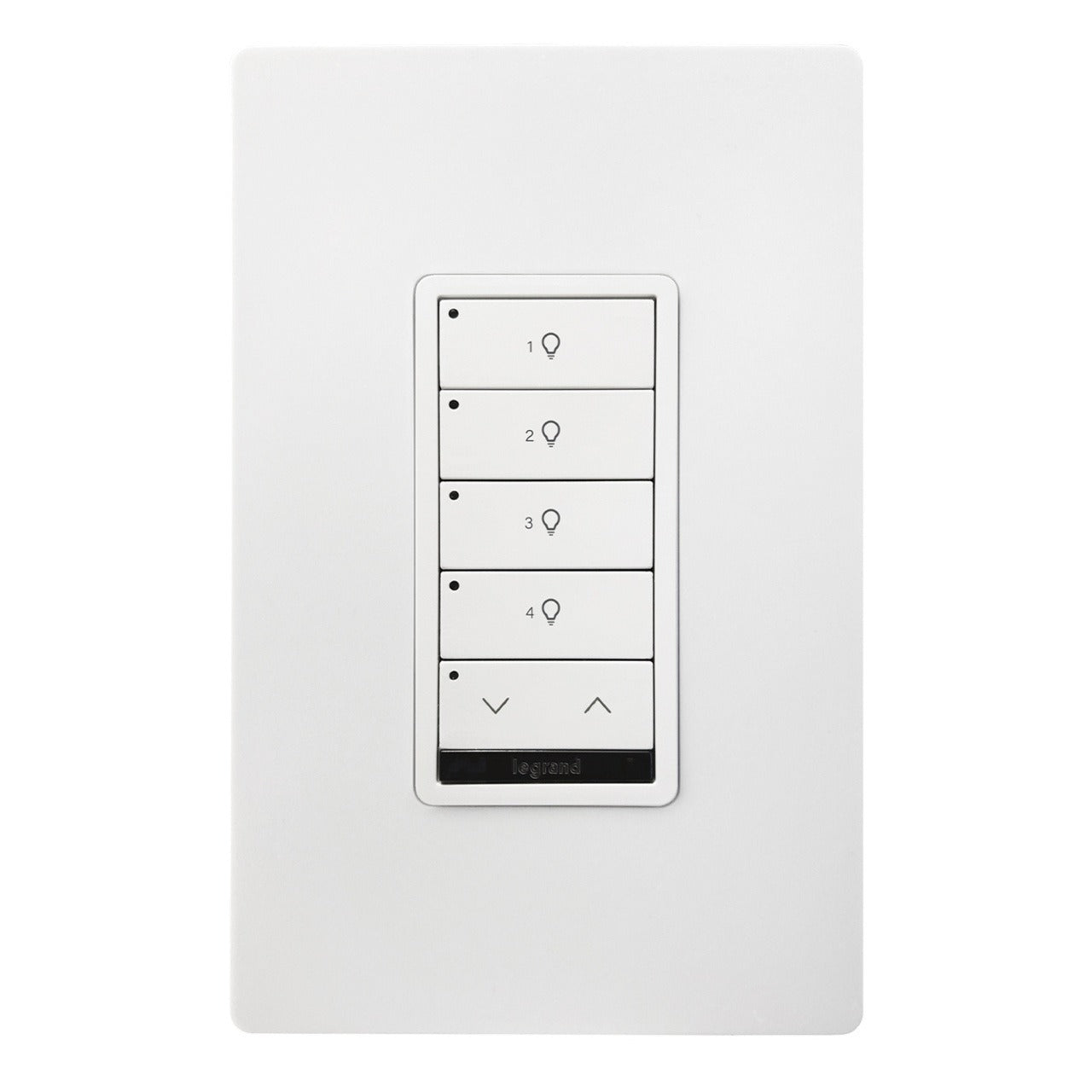

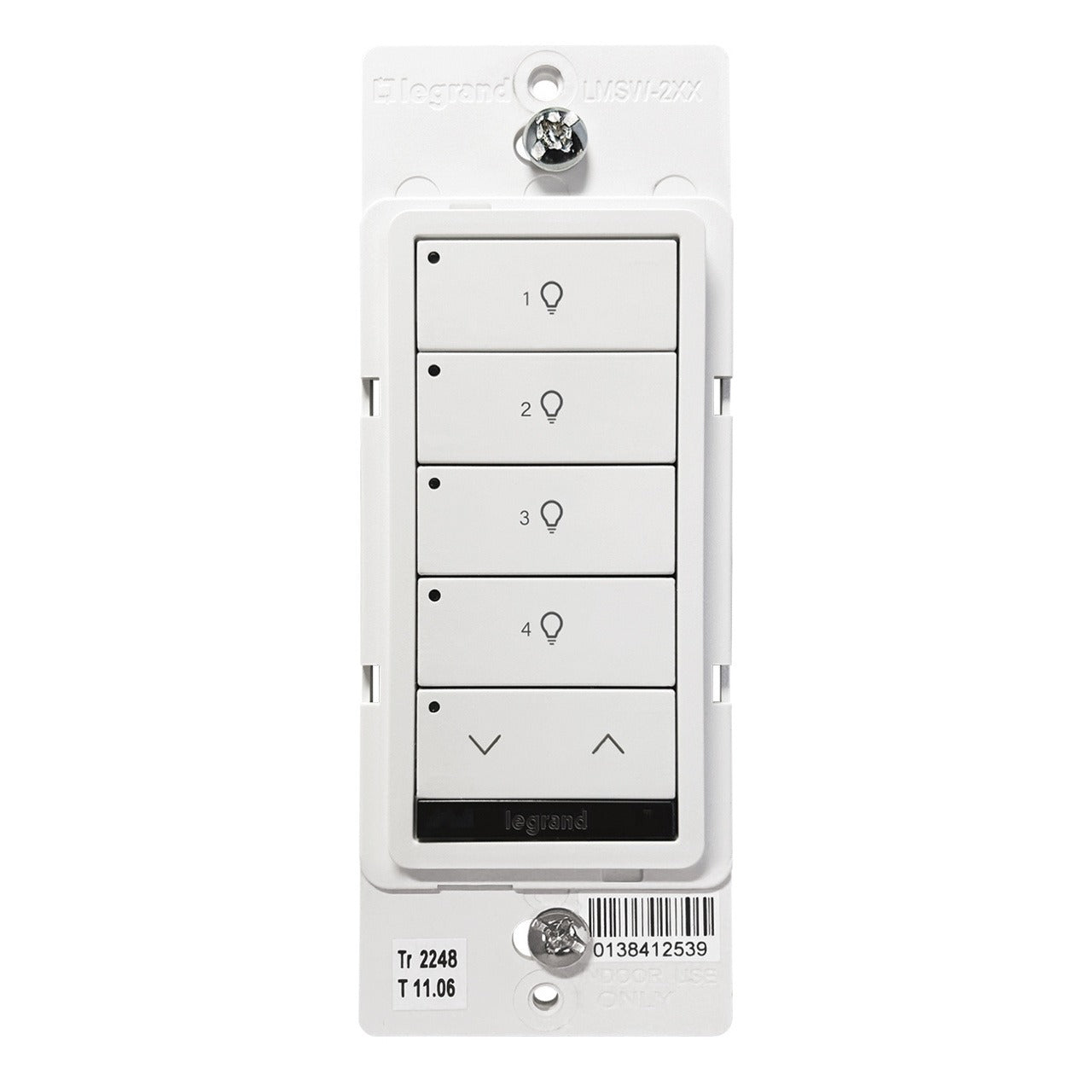

Wattstopper LMSW-241-W is a programmable low-voltage DLM wired standard switch that provides manual on/off, dimming, and scene control for one or more loads. The single-gang device includes four push buttons and one rocker, an infrared transceiver for wireless configuration, and RJ-45 Cat5e connection for a free-topology DLM local network. It operates at 24 V DC with a 5 mA draw and a power consumption of 0.168 W for indoor dry commercial installations.

• Four buttons plus one rocker support individual or multi-load control, per-button dimming, scenes, and LED status indication
• Infrared (IR) transceiver for wireless configuration and a software-lockable configuration button accessible without faceplate removal
• Plugs into a free-topology Cat5e DLM local network via RJ-45; mounts to a standard J-box for single-gang installation

Product Highlights

Programmable single-gang DLM wall switch, 4 buttons + 1 rocker, 24 V DC input, 5 mA current draw, RJ-45 Cat5e connection, IR transceiver, UL/cUL/FCC part 15/RoHS listings

Product Information

Standard Information

• Brand: WATTSTOPPER
• Manufacturer Part Number: LMSW-241-W
• Country of Origin: China
