Wattstopper LMSW-210-W DLM Wired Standard Switch 0.168 W (1 Button)

Brand: WATTSTOPPER
SKU: LMSW-210-W
Availability: In Stock

Ships same day if ordered by 12 pm
$132.76
$132.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

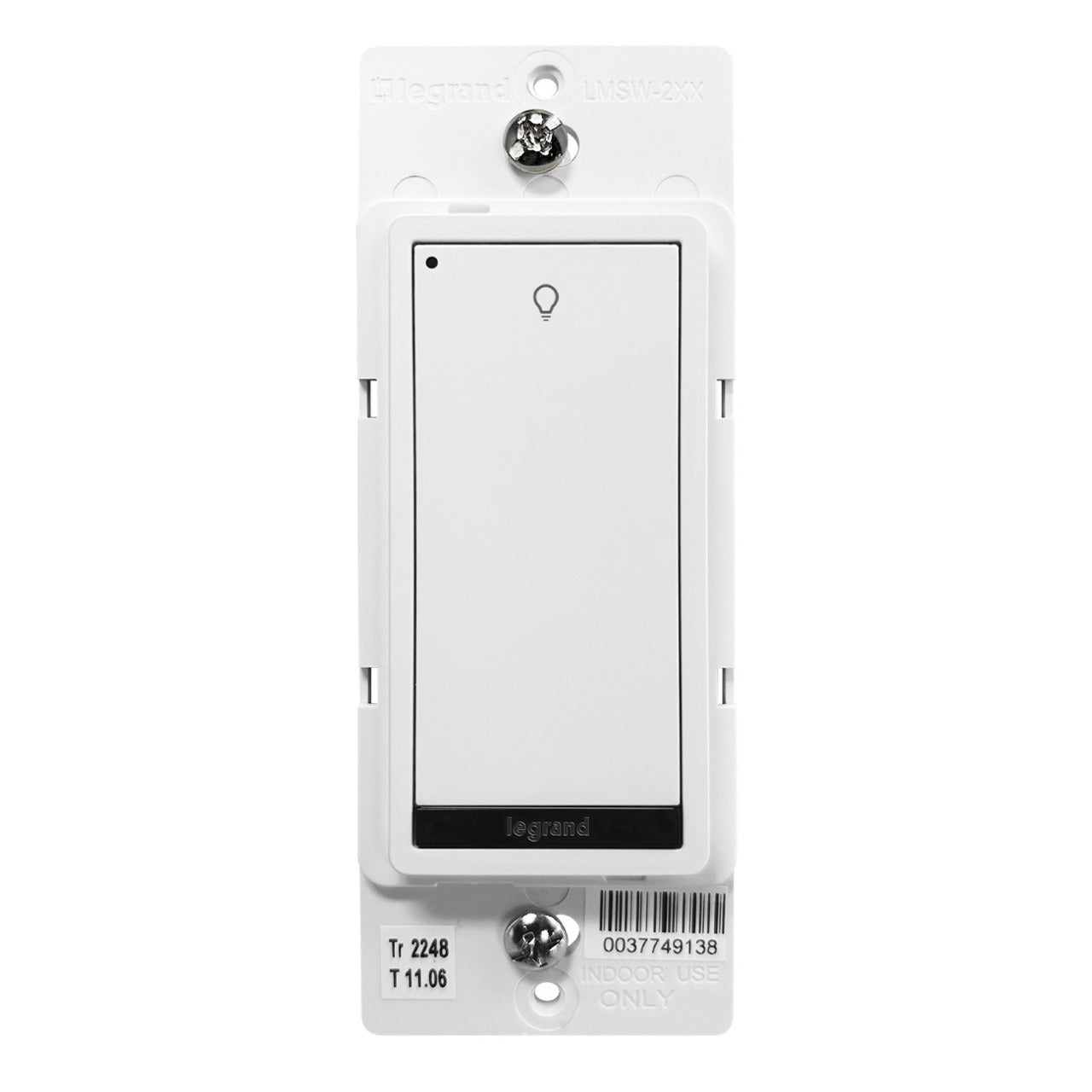

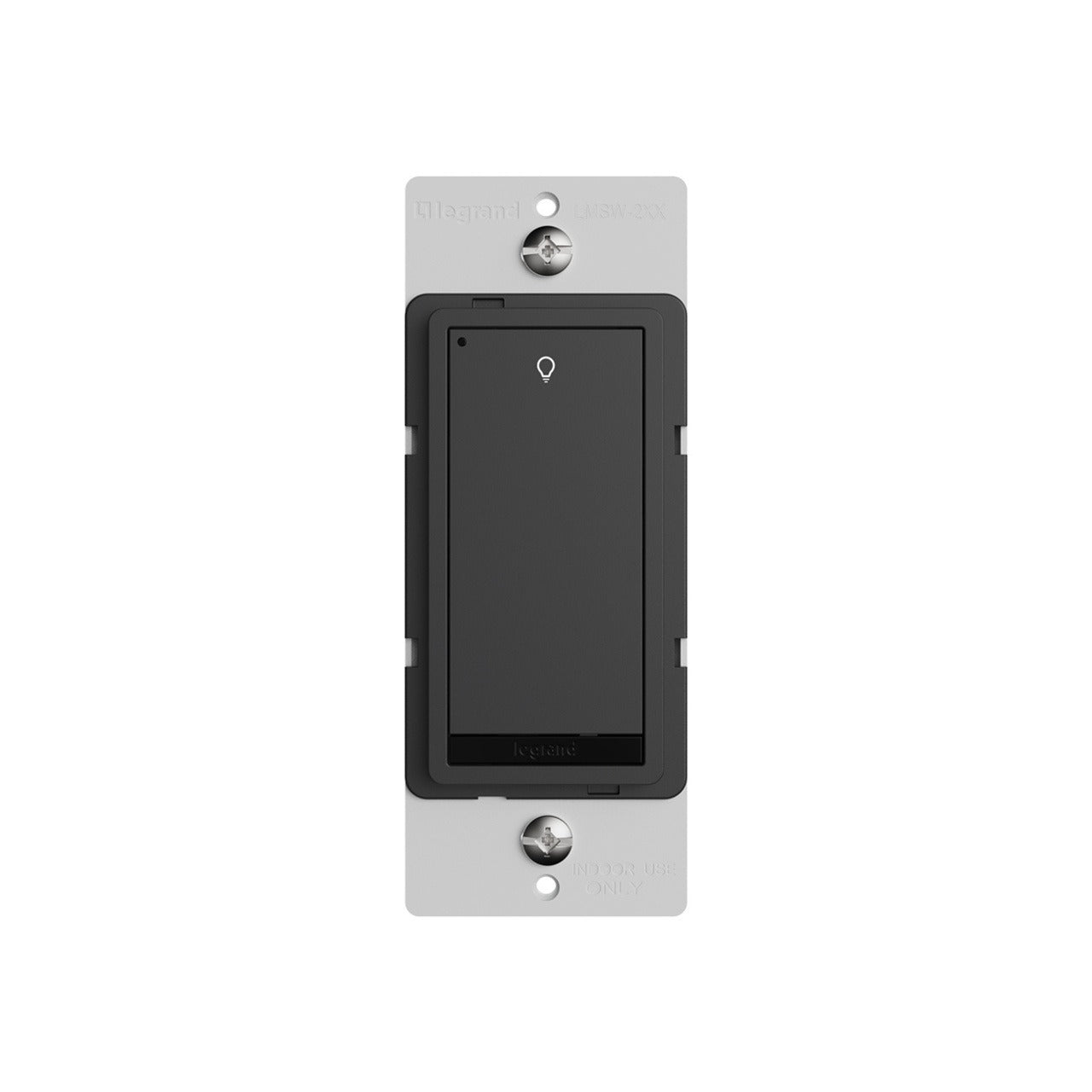

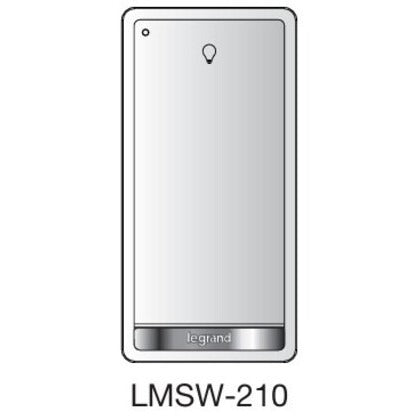

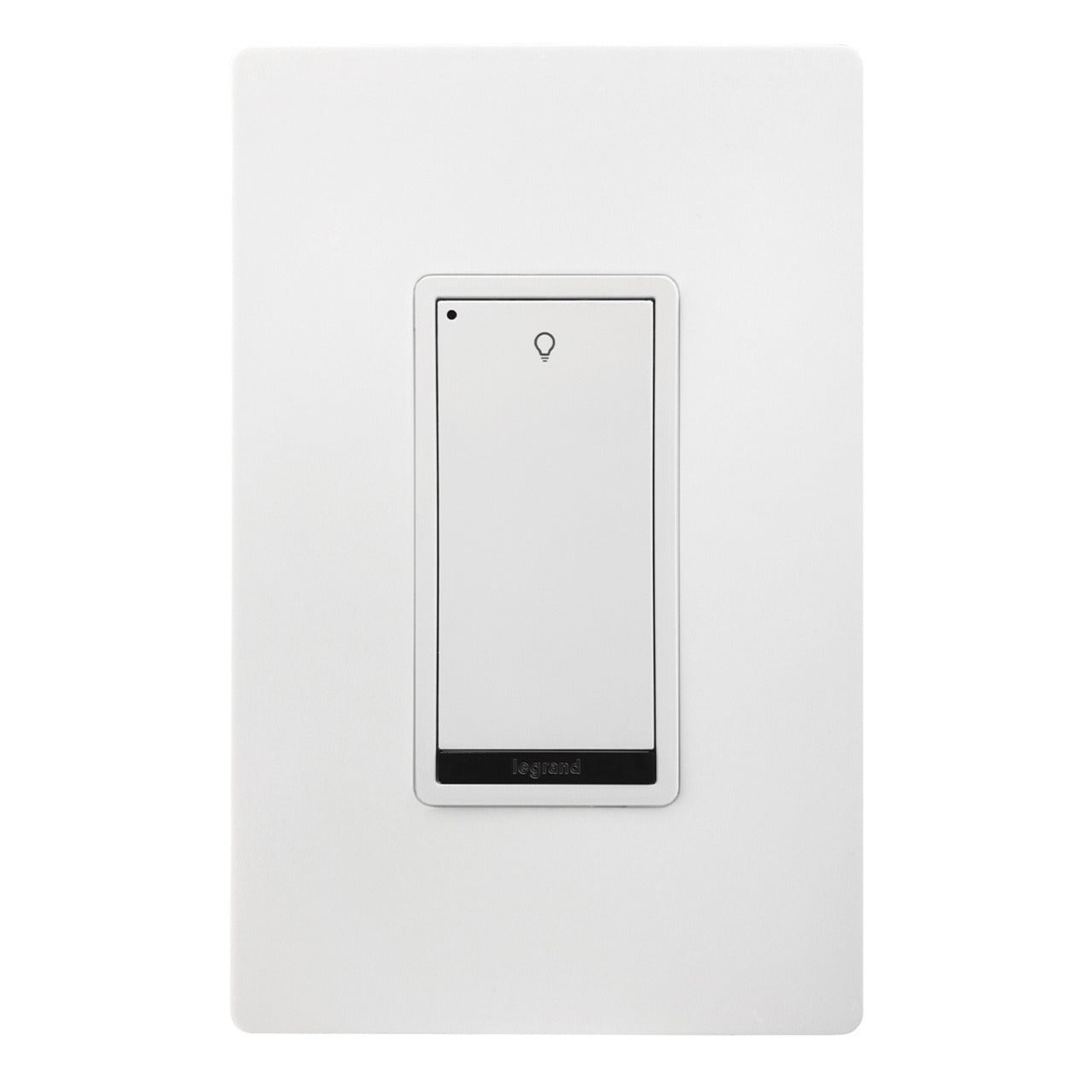

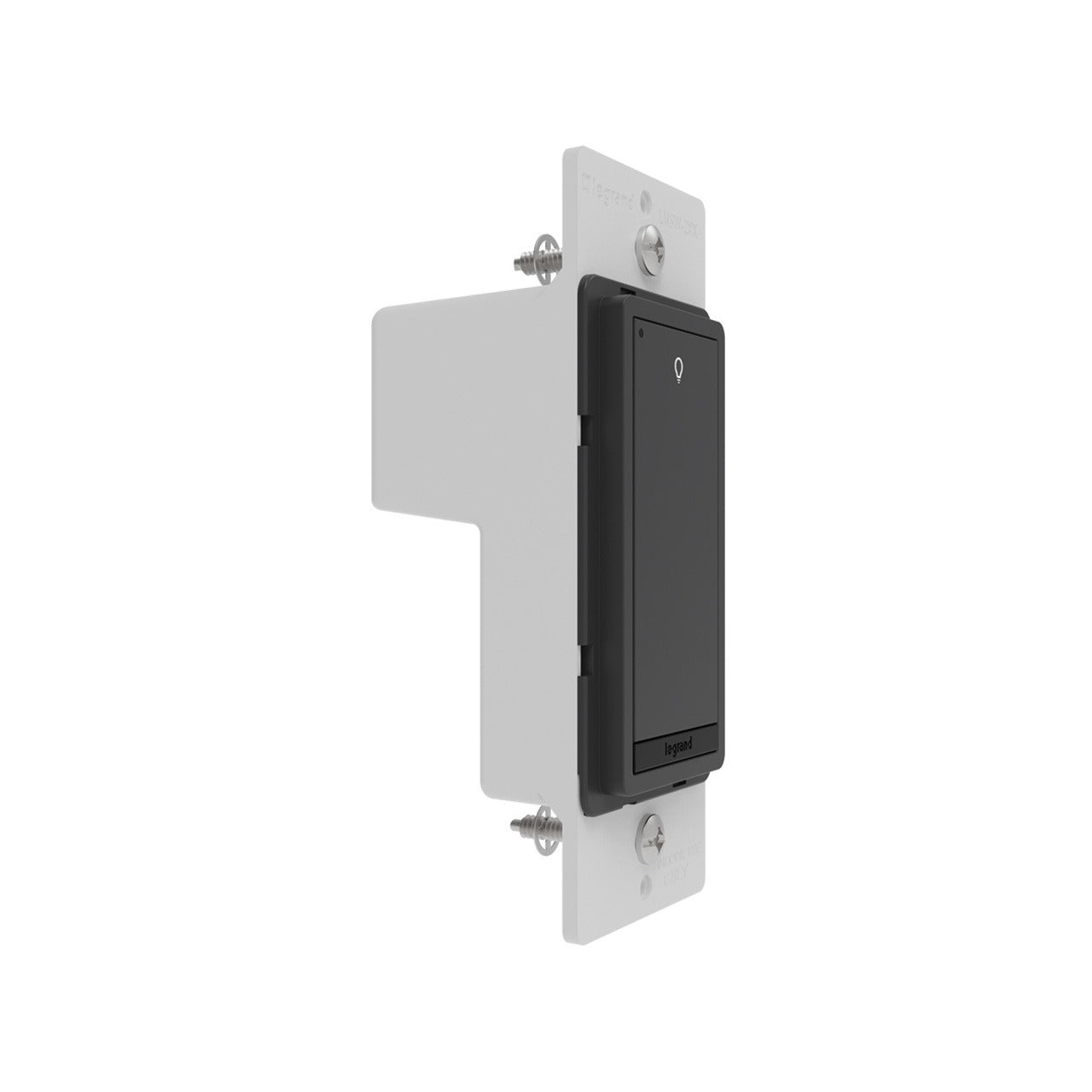

Wattstopper LMSW-210-W is a DLM wired, low-voltage wall switch that provides single-button on/off, dimming, and scene control for loads connected to DLM room controllers. The device operates from 24 VDC on the DLM Cat5e local network, includes an infrared transceiver and LED status indicator, mounts to a J-box in indoor dry locations, and draws approximately 5 mA. It fits a single-gang decorator wall plate.

  • Operates from 24 VDC on DLM free-topology Cat5e network; two RJ45 network ports
  • Infrared transceiver for wireless configuration, software-lockable configuration button, and LED status indication
  • Single-button push control with per-button dimming, multi-way capability, and compatibility with DLM room controllers

Product Highlights

Low-voltage DLM single-button switch for on/off, dimming, and scene control

Product Information

Standard Information

  • Brand: WATTSTOPPER
  • Manufacturer Part Number: LMSW-210-W
  • Country of Origin: China
Technical Specifications
Brand
Wattstopper
Model / MPN
LMSW-210-W
Product Name
DLM Wired Standard Switch
Product Family / Series
Digital Lighting Management (LMSW-200 Series)
Type
Digital wall switch
Input Voltage
24 VDC
Wattage
≈ 0.12 W (based on 5 mA at 24 V)
Current Draw
≈ 5 mA
Number of Buttons
1
Number of Switches
1
Number of Gangs
1
Switch Type
Push
DLM network connection
2 RJ45 ports
Topology
Free Topology (Category 5e)
Compatibility
DLM Wired (controls loads connected to DLM room controllers)
Mounting Type
J-Box
Location Rating
Dry (indoor)
Indoor/Outdoor
Indoor
Material
ABS
Finish
Matte
Dimensions (H x W x D)
4.1 in x 1.6 in x 1.6 in
Product Weight
0.1 lb
Operating Temperature
0 to 55 C
Storage Temperature
-5 to 80 C
Operating Humidity
5-95% RH (non-condensing)
Standards / Certifications
UL, cUL, FCC part 15, RoHS
LED Status Indicator
Yes
Infrared Transceiver
Yes
Software-lockable configuration button
Yes
Controls third-party shades
Yes
Seismic Tested
No
Has Battery
No
Application Sector
Commercial
Country of Origin
China
UPC
754182948710
