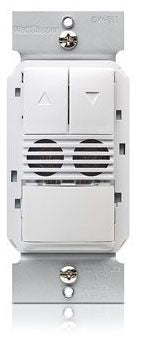

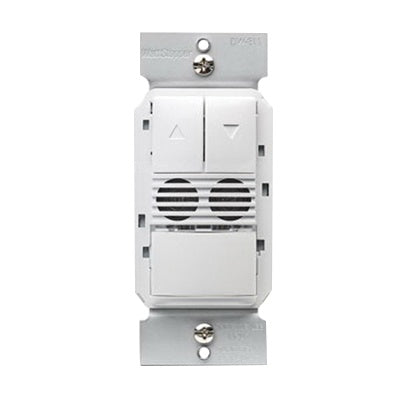

Wattstopper DW-311-W Wall Switch Occupancy Sensor 120/277 Volt AC

Product Description

The Wattstopper DW-311-W is a wall switch occupancy sensor that operates on 120/277 volts AC. This product uses dual technology with passive infrared and ultrasonic sensing to provide effective motion detection. The sensor is designed for use in private offices, break rooms, and conference areas. It promotes energy efficiency by automatically controlling the lights.

• Vandal resistant design
• Selectable time delays: 3, 5, 15, or 30 minutes
• Test mode for coverage verification

Product Highlights

This occupancy sensor supports multi-way control from up to four locations, ensuring lights are efficiently managed in larger spaces.

Product Information

Standard Information

• Manufacturer: Wattstopper
• Color: White

Technical Specifications

• MPN: DW-311-W
• Voltage Rating: 120/277 Volt AC
• Sensor Type: Passive Infrared/Ultrasonic Dual Technology
• Area Coverage: Major motion: 35 ft x 30 ft (PIR), 20 ft x 20 ft (Ultrasonic); Minor motion: 20 ft x 15 ft (PIR), 15 ft x 15 ft (Ultrasonic)
• Maximum Load Rating: 0 to 1000 Watt at 120 Volt (Ballast/LED/Tungsten); 0 to 1200 Watt at 277 Volt (Ballast/LED)
• Time Delay: 3/5/15/30 minutes
• Mounting: Wall
• Standards: UL/cUL Listed, RoHS Compliant
