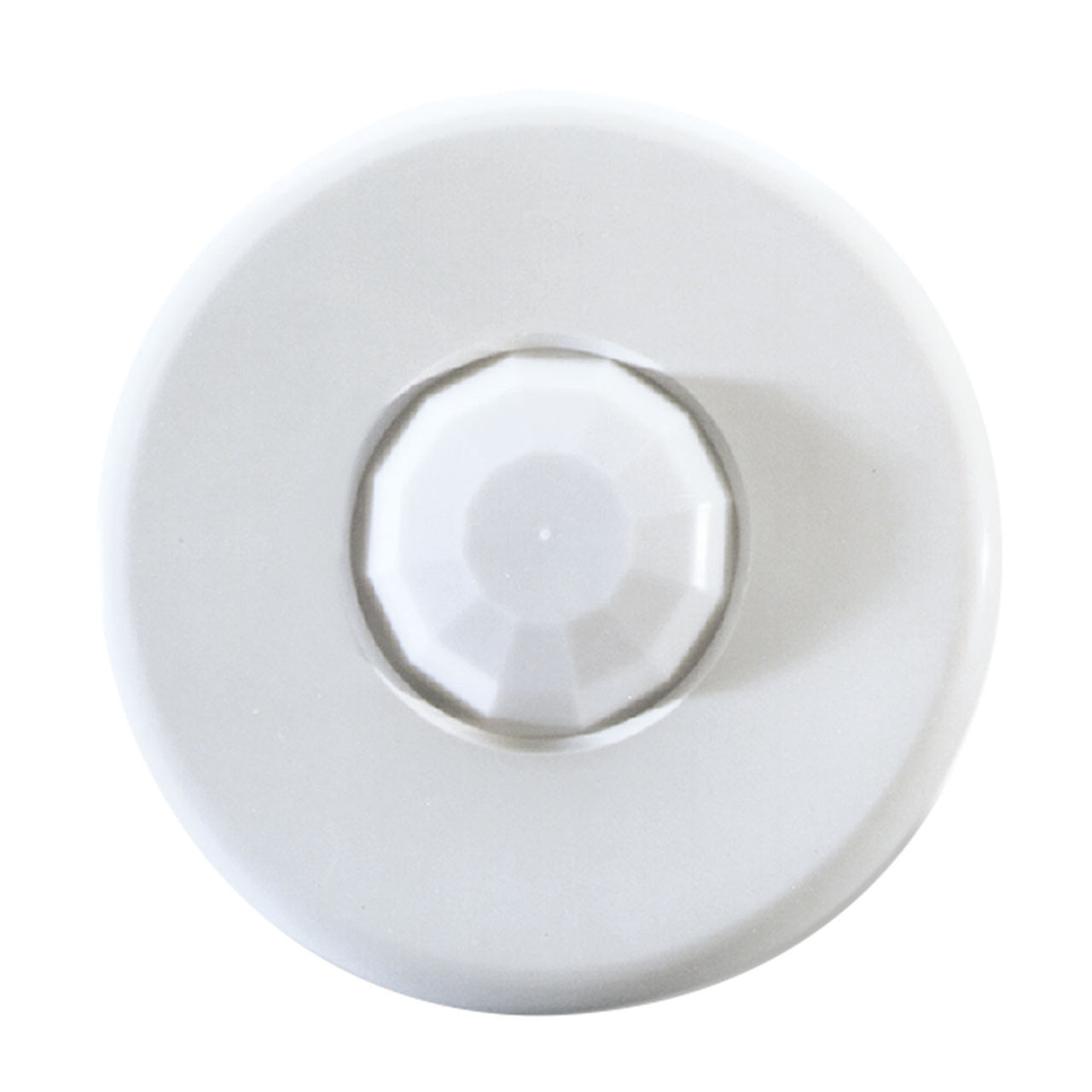

Wattstopper CI205 passive infrared ceiling sensor 24 VDC 1200 sq.ft

Product Description

The WATTSTOPPER CI205 passive infrared ceiling sensor provides 360-degree coverage to detect occupancy in the controlled area. These low-profile sensors reliably control lighting in a variety of applications. The sensor covers up to 1,200 square feet and features adjustable sensitivity and time delay. It also has a light level sensor that helps save energy.

• 360-degree coverage
• User-adjustable time delay and sensitivity
• Low-profile design

Product Highlights

The WATTSTOPPER CI205 is a passive infrared ceiling sensor with 360-degree coverage, adjustable settings, and a low-profile design for reliable lighting control.

Product Information

Standard Information

• Brand: WATTSTOPPER
• Manufacturer Part Number: CI205
• Country of Origin: China

Technical Specifications

• Type: Commercial Ceiling Sensor
• Brand: WattStopper
• Voltage: 24 VDC
• Material: Plastic
• Sub Brand: Wattstopper
• Sensor Type: Passive Infrared
• Applications: For Office Spaces, Classrooms, Aisleways, Warehouses
• Mounting Type: Ceiling
• Country of Origin: China
• Product Line: Wattstopper
• Replaced by Part Number: CI-305
• UPC Number: 754182913305
• Product Depth US: 3.75 in
• Product Height US: 2.75 in
• Product Volume US: 38.67 cu in
• Product Width US: 3.0 in
• DesignLights Consortium Qualified System: Yes
• Security: Yes
• RoHS Compliant: Yes
• Sensor Technology: Passive Infrared (PIR)
• Power Source: Corded Electric
• Maximum Range: 6 Meters
• Compatible Devices: HVAC Controls, Power Packs
• Load: 11 mA
• Range: 360 degrees, 1200 sq ft
• Time Delay: Adjustable: 15 seconds to 30 minutes
• UL Listed: Yes
• Manufacturer: WattStopper
• Manufacturer Model Number: CI-205
