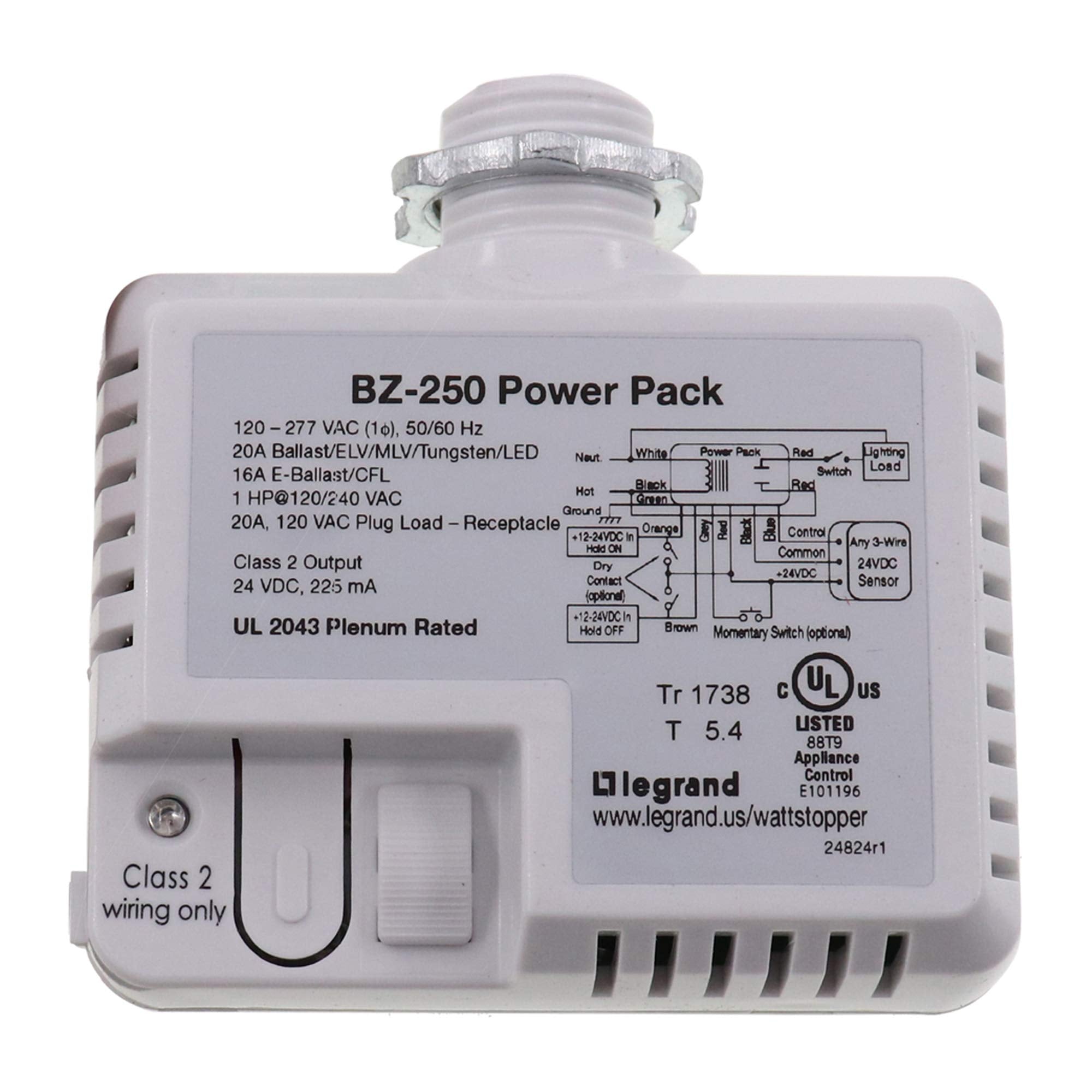

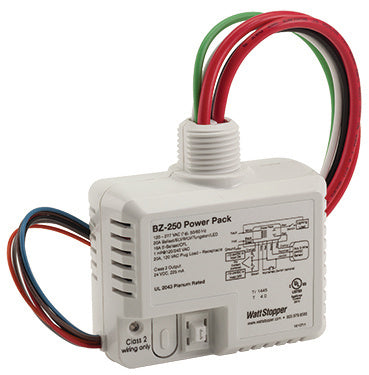

Wattstopper BZ-250 Light/Plug Load Flex Cntrl Power Pack

Product Description

The WattStopper BZ-250 power pack switches lighting or plug loads on and off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as Hold-On, Hold-Off and load shed applications when used with lighting control panels or building automation systems.

• Hold ON and Hold OFF inputs
• Mechanically held latching relay with selectable power loss operation: On, Off, or last state
• Auto-On or Manual-On operation for code compliance

Product Highlights

This power pack is designed for switching lighting or plug loads and is RoHS-conforming. Ideal for commercial application sectors.

Product Information

Standard Information

• Brand: WATTSTOPPER
• Manufacturer Part Number: BZ-250
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121002
• Voltage: 120-277Vac
• Frequency: 50/60Hz
• Output: 24VDC, 225mA
• Application: Lighting or plug loads
• Product Series: BZ
• Type: Power Pack
• Application Sector: Commercial
• Product Line: Wattstopper
• Country Of Origin: China
• Installation Location: Ceiling
• UPC Number: 754182938049
• RoHS Compliant: Yes
• Wire Connection Type: Wire Leads
• Connection Type: Wired
• Indoor/Outdoor: Indoor
• Input Voltage: 120 to 277 VAC
• Line Frequency: 50 Hz, 60 Hz
• Mounting Type: 1/2 in Knockout
• Operating Temperature: -4°-131°F
• Operating Temperature Max: 131 °F
• Operating Temperature Min: -4 °F
• Operating Humidity: 5-95% RH (Non-Condensing)
• Output Voltage: 24 VDC
• Storage Temperature: -40° - 176° F
• Wire Gauge: 18-22 AWG
• Operation Mode: ON-ON
• Current Rating: 225 Milliamps
• Operating Voltage: 24 Volts
• Contact Type: Normally Open
• Connector Type: Wired
• Switch Type: Electromechanical
• Terminal: Screw
• Circuit Type: 1-way
• Actuator Type: Hold-On, Hold-Off
• Contact Material: Metal
• Connectivity Protocol: Wired
• Wattage: 5.4 watts
• Unit Count: 1.0 Count
• Number of Items: 1
• Manufacturer: Wattstopper
• Control Type: Automated
• Compatible Devices: Wattstopper occupancy sensors, lighting control panels, building automation systems
• Part Number: BZ-250
• Item model number: BZ-250
• Finish: White
• Power Source: Corded Electric
• Item Package Quantity: 1
• Number Of Pieces: 1
• Batteries Included?: No
• Batteries Required?: No
• Brand: Legrand
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 754182938049
• GTiN: 00754182938049
• Product UPC: 75418293804
• Depth: 1.634 Inch
• Height: 1.673 Inch
• Width: 2.916 in
