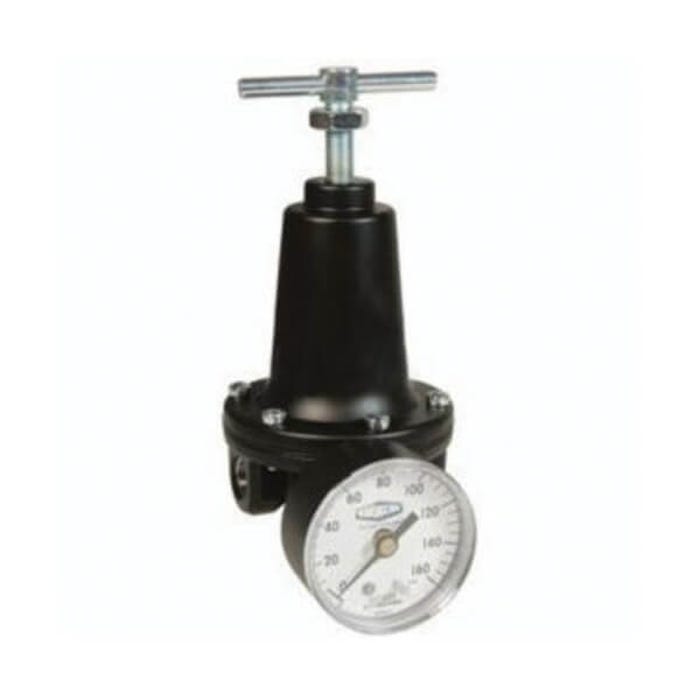

WATTS R119-12CG Series Air Pressure Regulator with Gauge

Product Description

The Watts R119-12CG series air pressure regulator is essential for controlling air pressure to a specified outlet level. This regulator features a diaphragm-operated design with a balanced poppet, ensuring reliable pressure regulation. It is equipped with a gauge and a T-handle for easy adjustments. Ideal for applications needing consistent pressure despite flow changes.

• Standard relieving regulator for stable pressure control
• Includes GC230 gauge for precise monitoring
• Temperature rated from forty to one hundred twenty degrees Fahrenheit

Product Highlights

The Watts R119-12CG is designed to reduce and maintain air pressure in various applications efficiently.

Product Information

Standard Information

• Brand: Watts
• Product Name: Watts R119-12CG Series Air Pressure Regulator with Gauge

Technical Specifications

• Manufacturer Part Number: R119-12CG
• Series: R119
• Port Size: 1-1/2 inches NPT
• Maximum Operating Pressure: 300 PSI
• Pressure Range: 2 to 125 psig
• Flow Rate: 500 SCFM
• Temperature Rating: 40 to 120 degrees F
• Body Material: Zinc
• Adjustment Type: T-Handle
• Relieving: Yes
• Gauge Included: Yes
• Gauge Ports: 2 x 1/4 NPT
• Weight: 6.55 lb
