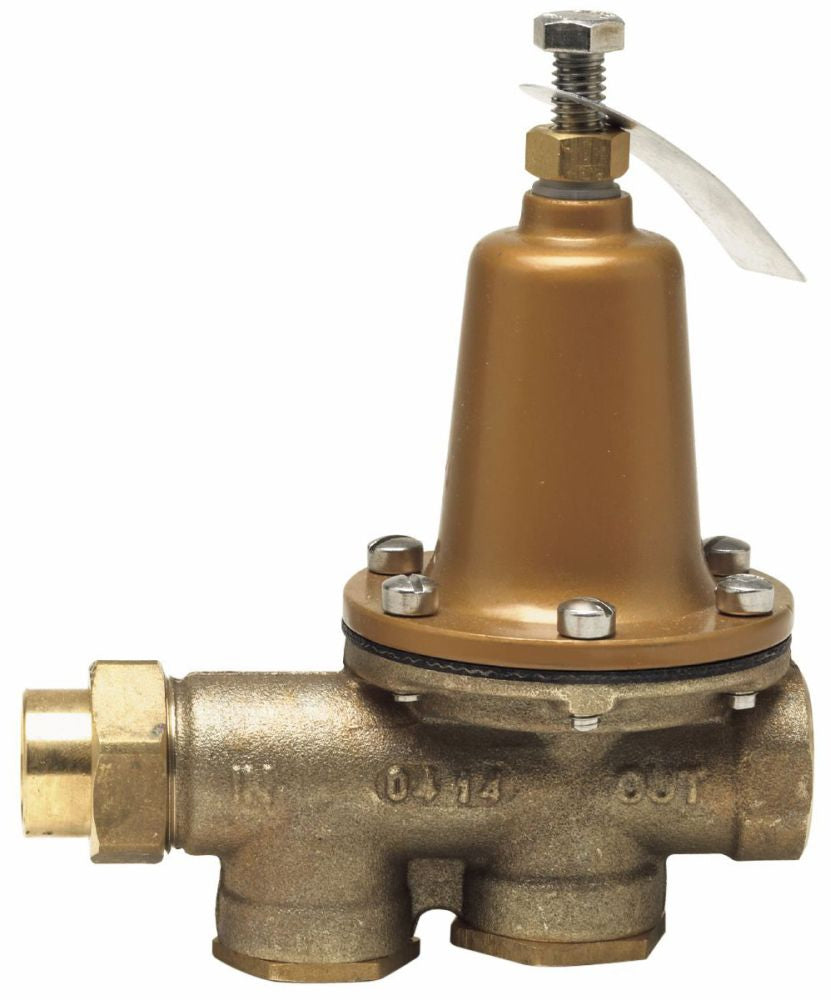

Watts LF25AUBLP34 Pressure Reducing Valve Low Pressure 3/4 Inch

Product Description

The WATTS LF25AUBLP34 is a lead-free brass water pressure reducing valve designed for low-pressure applications. It reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial, industrial, and residential settings. It features a replaceable seat module and a bypass to control thermal expansion pressure. The valve is suitable for temperatures from 33 to 160 degrees F.

• Integral Stainless Steel Strainer Removable For Cleaning
• Low Pressure Applications
• Lead-Free

Product Highlights

Lead-free brass water pressure reducing valve with stainless steel strainer for low-pressure applications in various settings.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LF25AUBLP34

Technical Specifications

• Applicable Standard: ASSE 1003, ANSI A112.26.2, CSA B356, IAPMO, CUPC, NSF/ANSI/CAN 61G, MIL-V-18146B
• Application: Commercial, Residential, Industrial
• Body Material: Copper Silicon Alloy
• Downstream Pressure Range: 10 to 35 PSI
• End Connection: Female Threaded Union x Female Threaded
• End To End Distance: 5-5/16 Inch
• Exclusions: Gauge
• Inclusions/Features: Stainless Steel Integral Strainer, Sealed Spring Cage, Corrosion Resistant Adjusting Cage Screw, EPDM Disc
• Nominal Size: 3/4 Inch x 3/4 Inch
• Pressure Rating: 10 to 35 PSI
• Product Sub-Type: Pressure Reducing Valve
• Product Type: Pipes/Valves/Fittings
• Seat Material: Glass Filled Noryl Polymer
• Series/Model: LF25AUB-Z3
• Strainer Supplied: Yes
• Temperature Rating: 33 to 160 Deg F
• Type: Low Pressure
