WATTS LF007M3-QT 3/4 NAME 3/4 INCH

Product Description

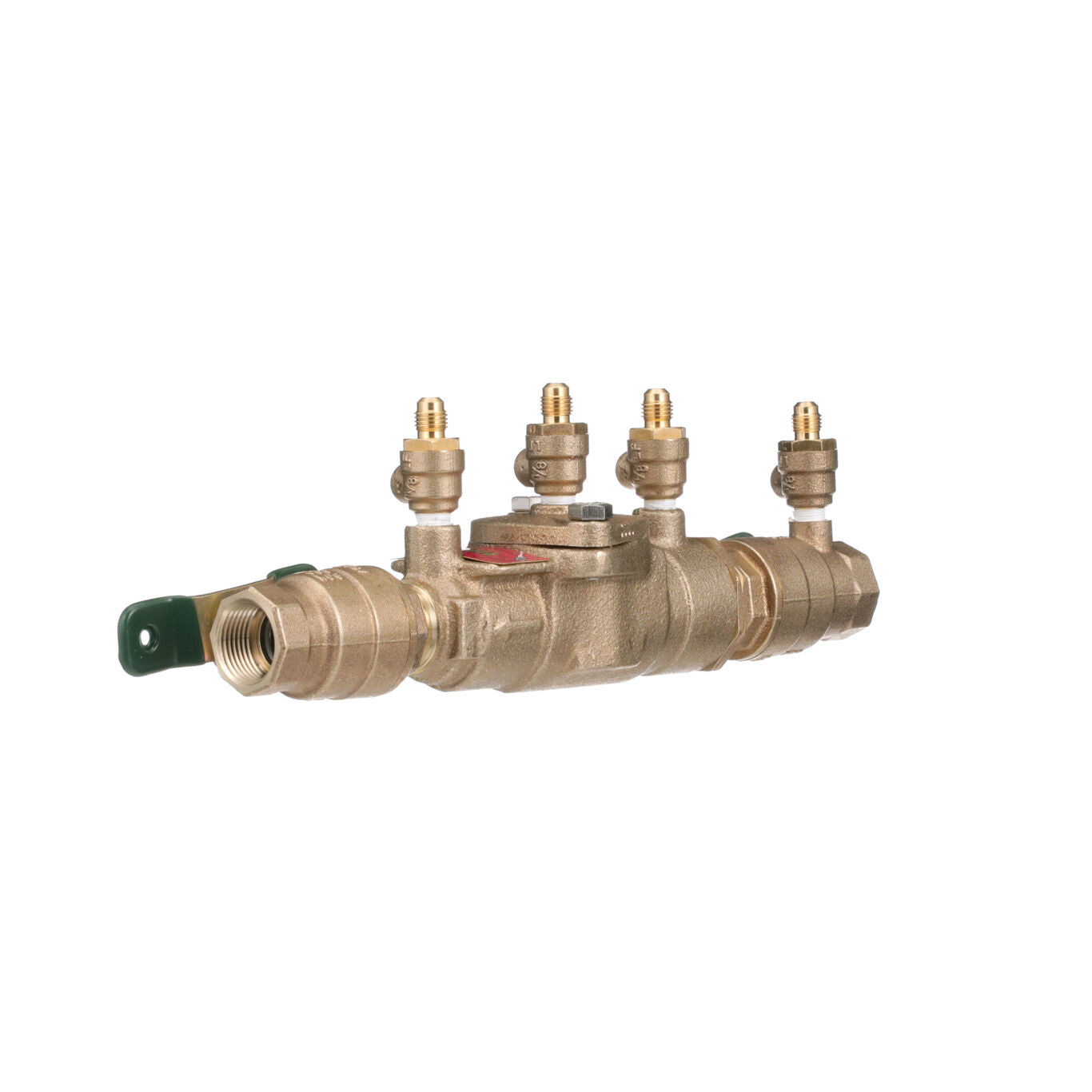

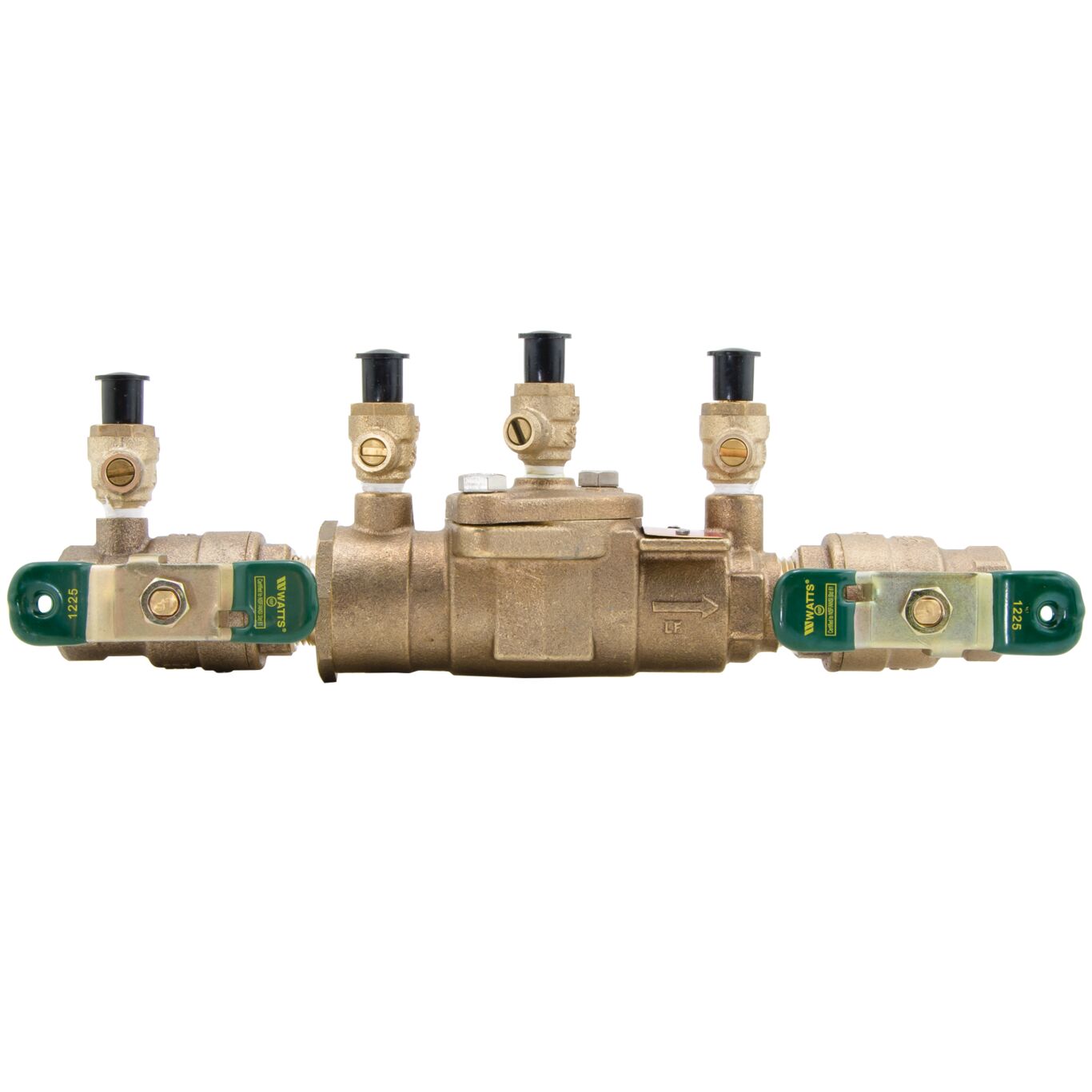

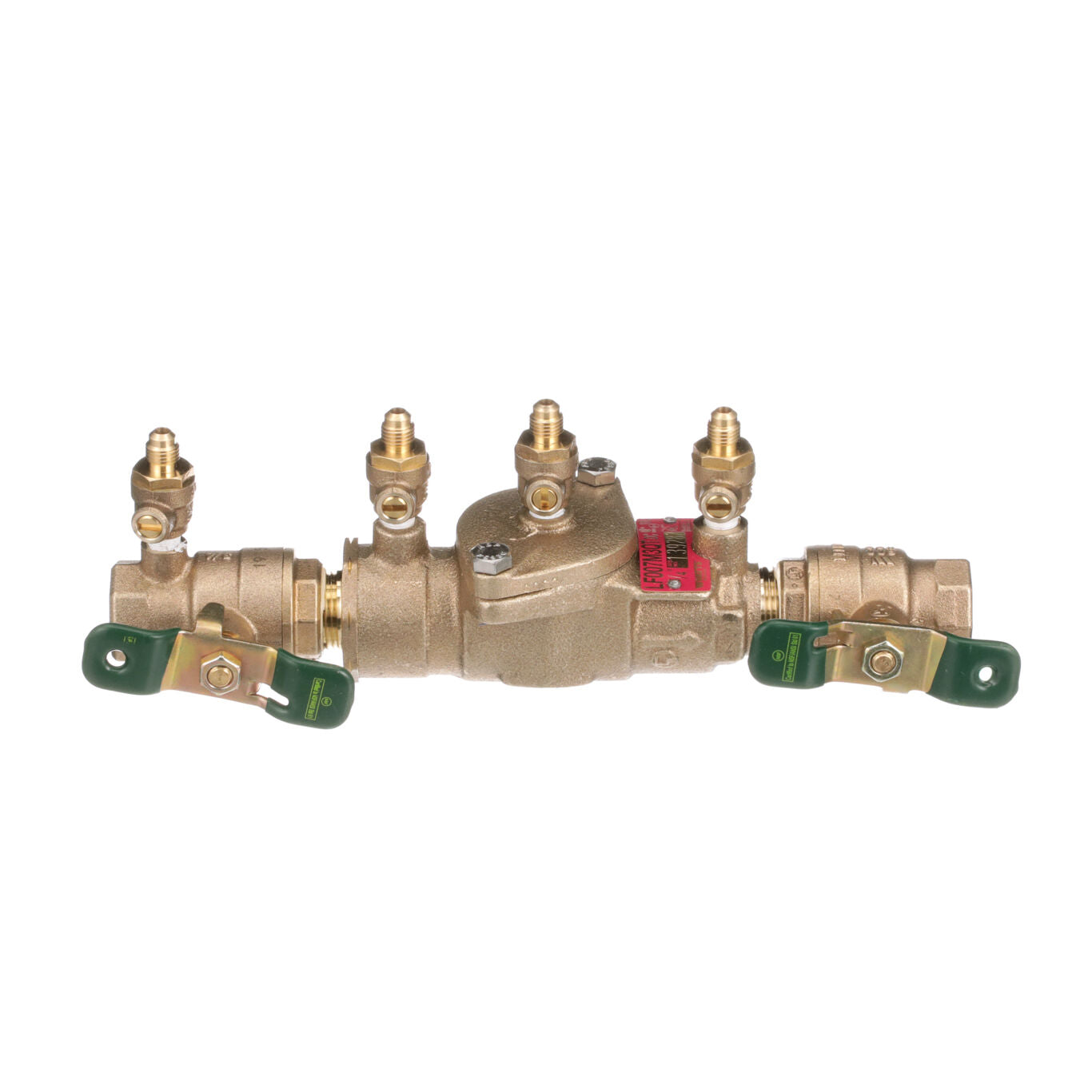

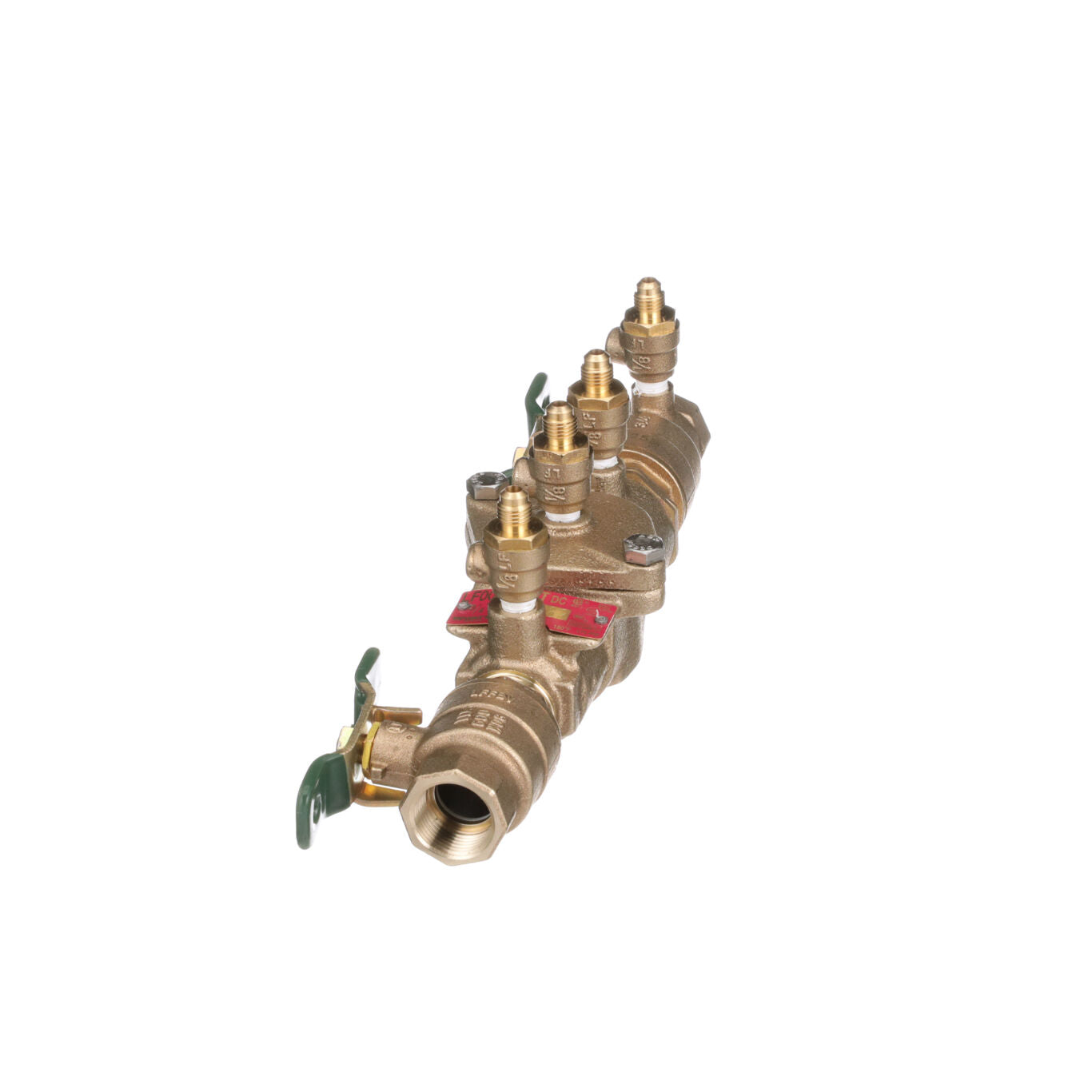

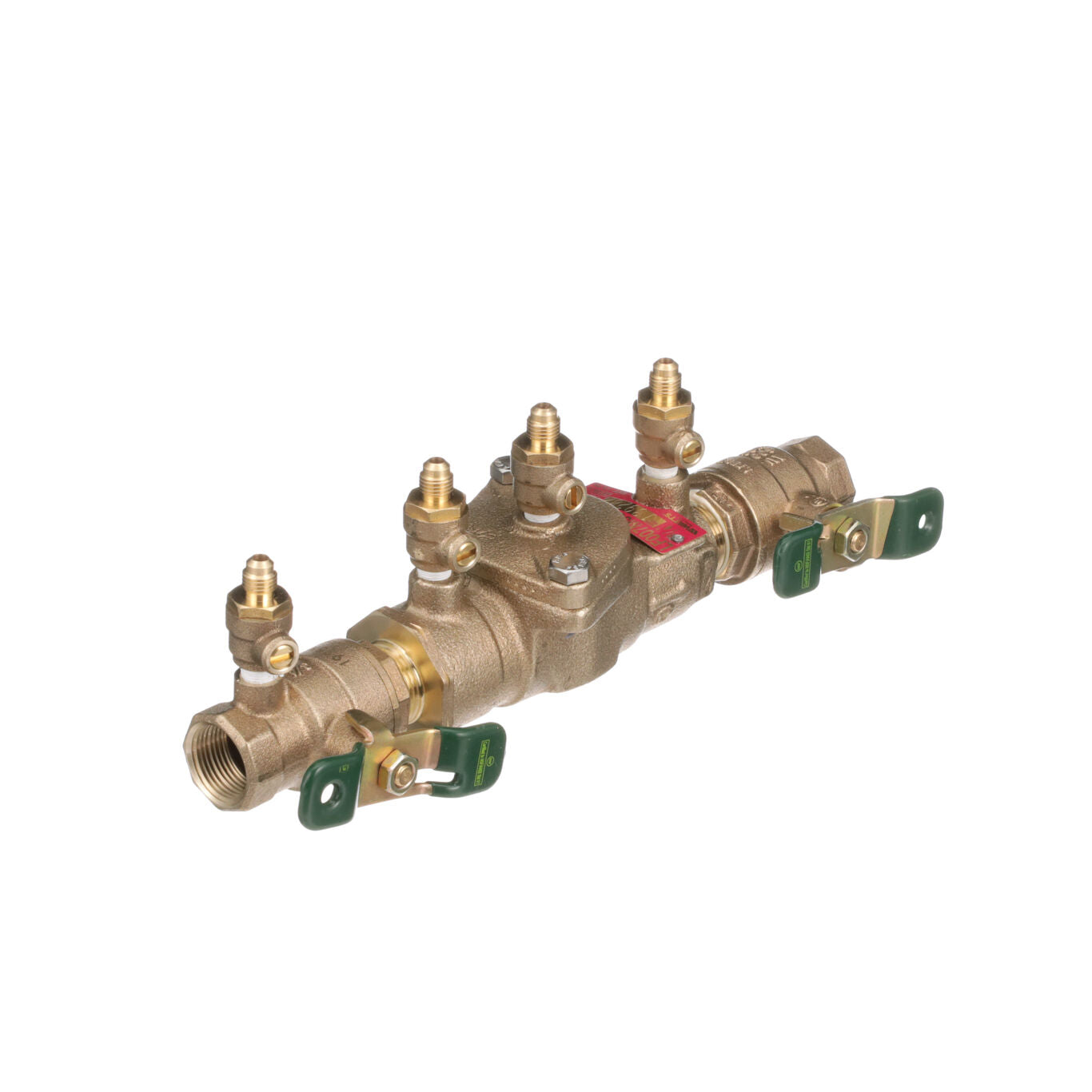

The WATTS LF007M3-QT 3/4 is a three-fourth inch lead-free double check valve backflow preventer assembly. It is designed to stop the backflow of contaminated water from entering the drinkable water supply.

• Lead-free construction ensures safe water supply
• Compact modular design allows for straightforward maintenance
• Single access cover enables quick in-line repairs

Product Highlights

This backflow preventer is ideal for continuous pressure piping applications, ensuring a reliable solution for protecting drinking water.

Product Information

Standard Information

• Brand: Watts
• Part Number: 0063231

Technical Specifications

• Backflow Preventer Type: Double Check Valve Assembly
• Body Material: Lead Free Bronze
• Inlet Connection Size: 3/4 inches
• Maximum Working Pressure: 175 PSI
• Maximum Temperature: 180 degrees Fahrenheit
• Minimum Temperature: 33 degrees Fahrenheit
• Outlet Connection Size: 3/4 inches
• Shutoff Valve Type: Quarter Turn Ball Valve
