Watts F121428 1 LF40XL-7 150/210 FS

Product Description

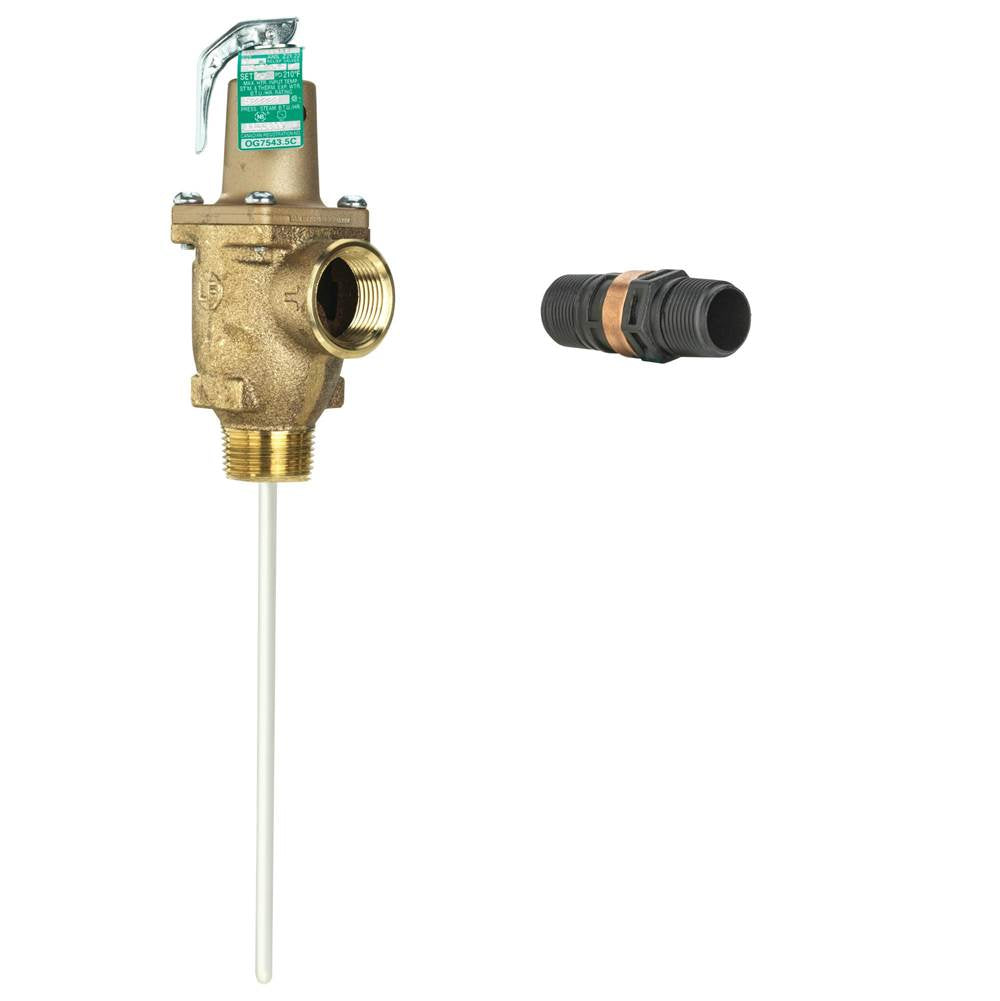

The Watts Regulator Company F121428 is a valve designed for automatic reseating. This product features a nominal size of one inch with male and female NPTF end styles. It operates under a pressure of one hundred twelve psi and is rated for temperatures up to two hundred ten degrees Fahrenheit. The seven inch probe length is suitable for water media. This valve has a copper silicon alloy body and measures six and one-fourth inches in height and two and three-fourths inches in width.

• Requires activation kit for sensor operation
• Tamper resistant bonnet screws
• Non-mechanical seat to disc alignment

Product Highlights

This valve is ideal for commercial applications, providing essential protection for hot water supply tanks and heaters.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268567809

Technical Specifications

• Actuator Type: Test Lever
• Body Material: Copper Silicon Alloy
• Dimensions: 6-1/4 in H x 2-3/4 in W
• End Style: Male NPTF x Female NPTF
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 112 psi
• Probe Length: 7 in
• Series: LF40L
• Temperature Rating: 210 deg F
• Trim Material: Nylon Coated Copper
• Type: Automatic Reseating
