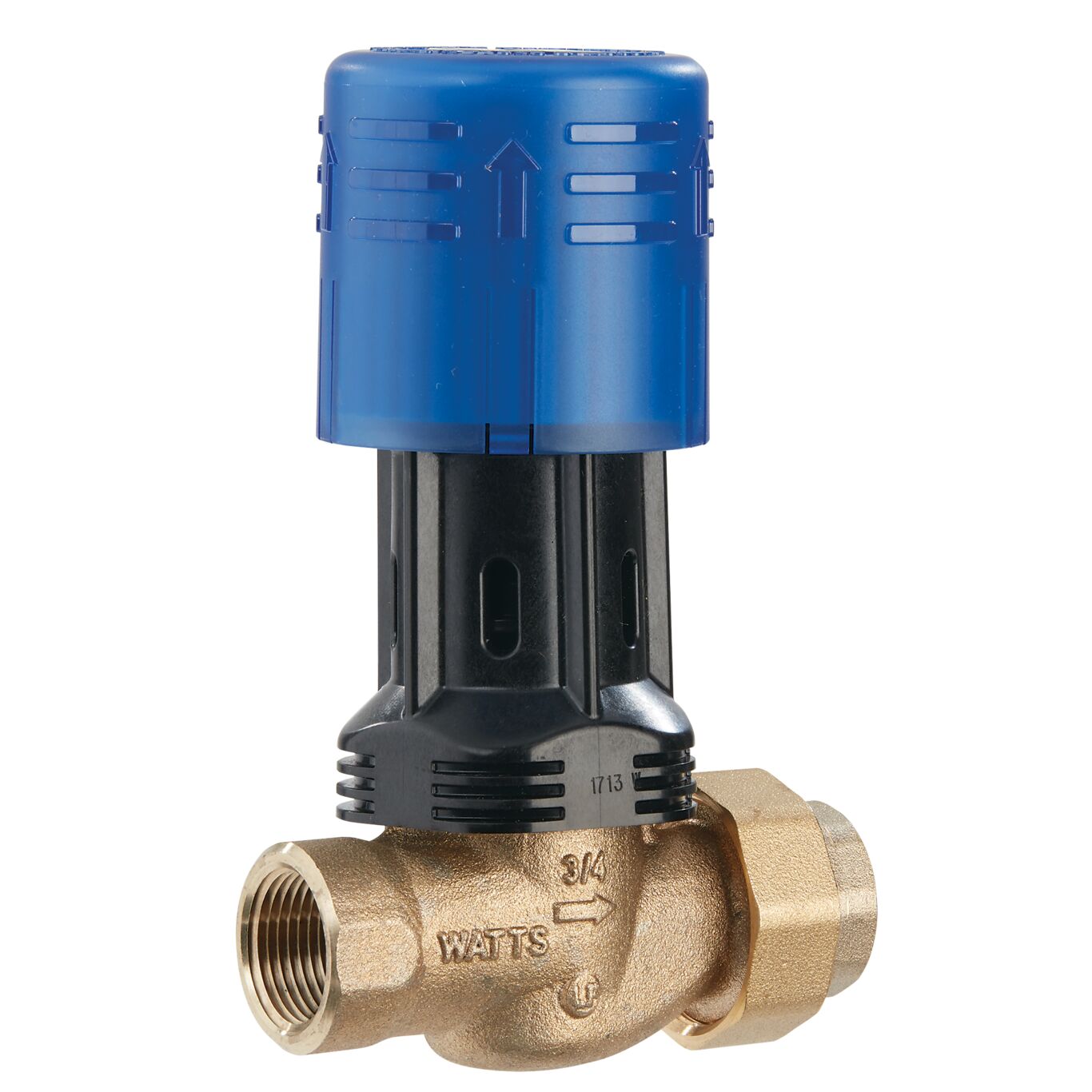

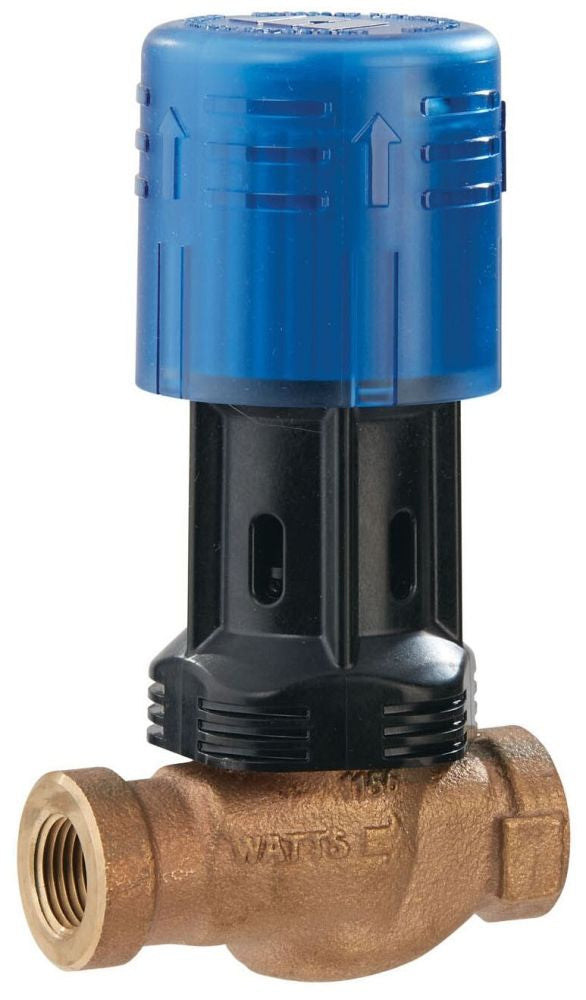

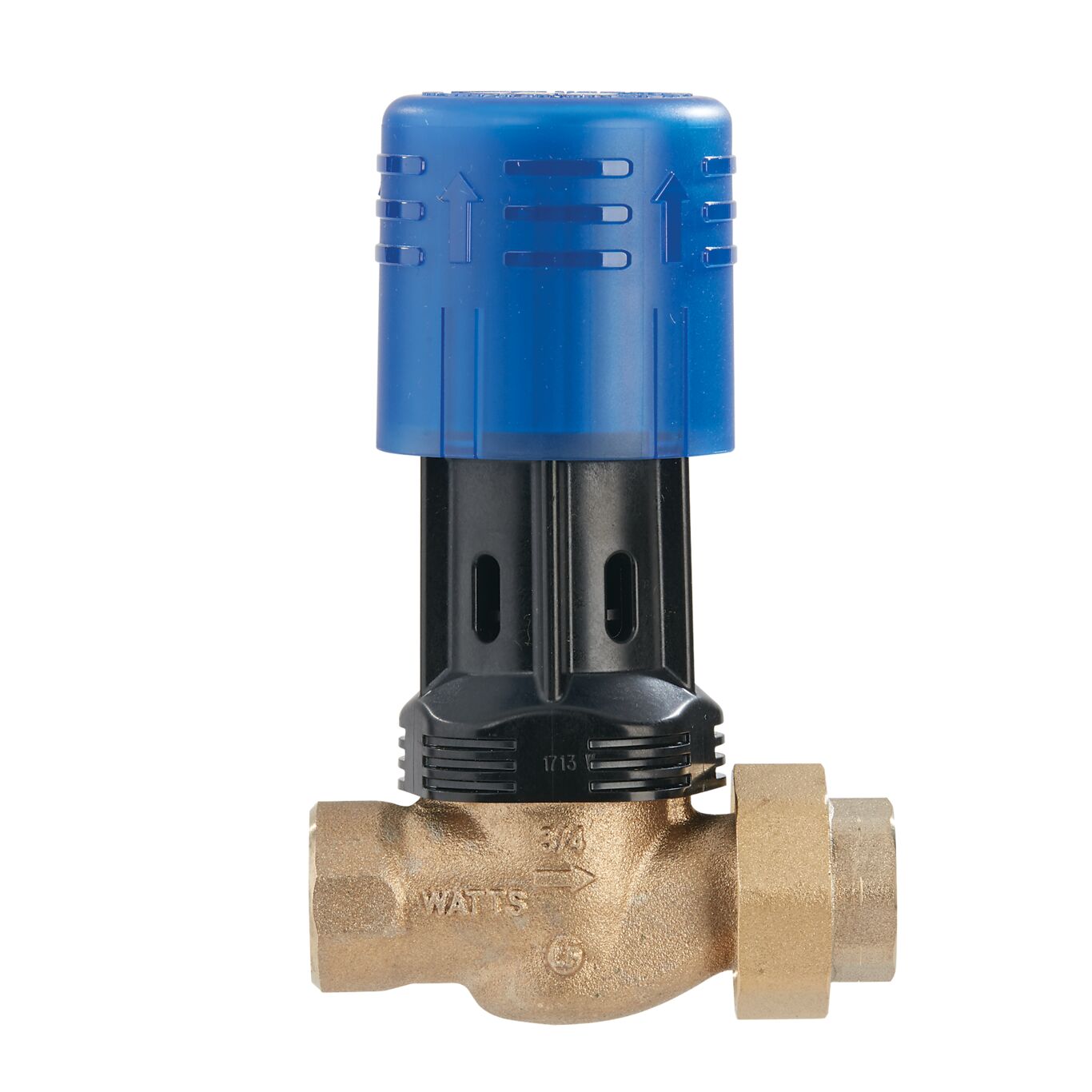

WATTS BD1156F Feed Water Pressure Regulator 1/2 inches Threaded Bronze Dial Set

Product Description

The WATTS BD1156F feed water pressure regulator is designed to maintain proper water pressure in heating systems. This regulator fills boilers and system piping with water, providing essential make-up water during leaks. It features a fast fill engagement with an auto-stop function to prevent over-pressurization, enhancing performance and safety.

• Push button fast fill with auto-stop feature
• Tight seating check valve for reliability
• Integrated dial indicator eliminates the need for an external pressure gauge

Product Highlights

This regulator ensures optimal performance with adjustable and high-capacity flow rates.

Product Information

Standard Information

• Brand: WATTS
• Model: BD1156F

Technical Specifications

• Maximum Temperature: 212 degrees Fahrenheit
• Maximum Working Pressure: 100 psi
• Adjustment Range: 8-21 psi with a 25 psi auto-stop
• Connection Type: FNPT x FNPT
• Body Material: Bronze
• Flow Rate: High capacity
• Hydronic Item Type: Boiler feeder valve
• Includes: Strainer
