Product Description

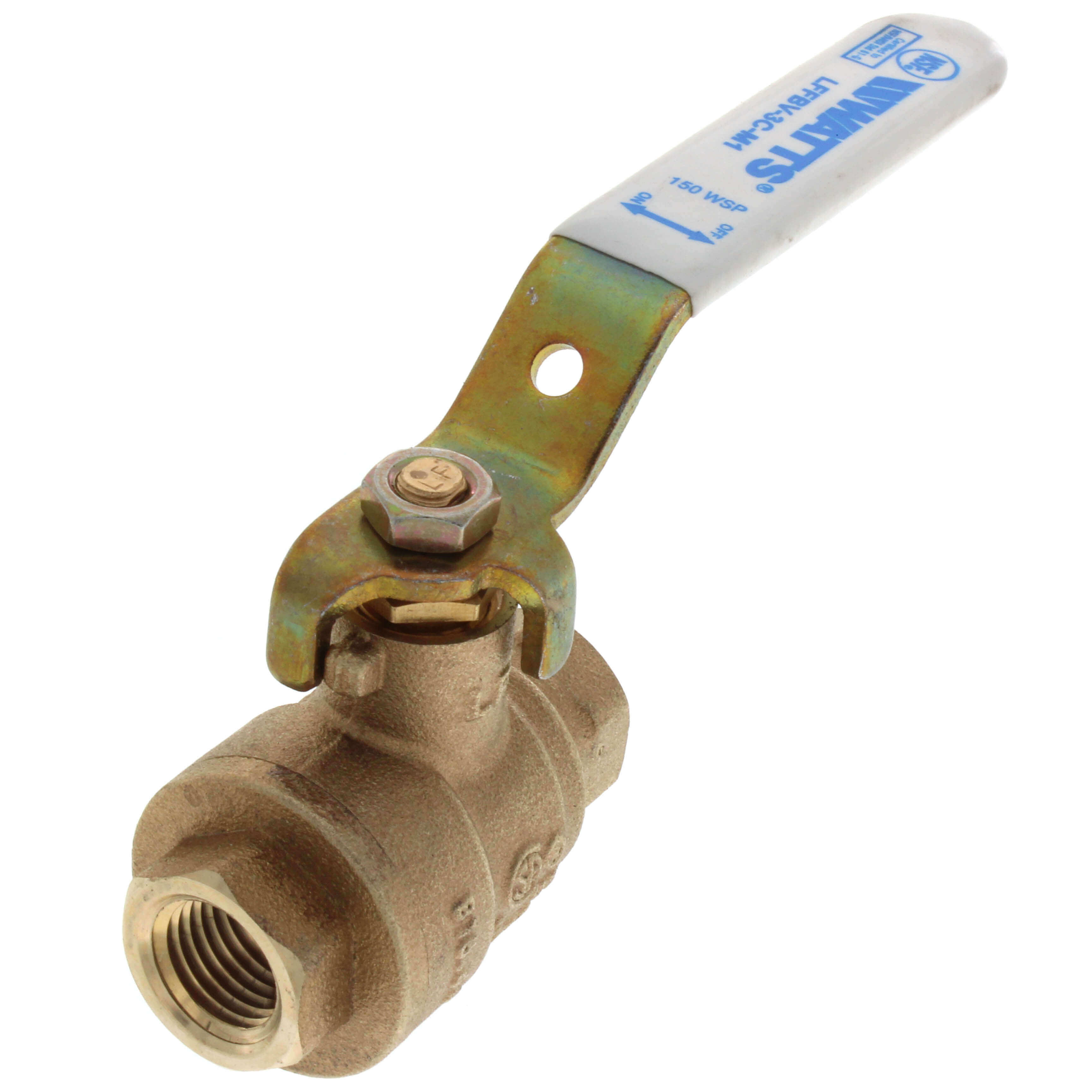

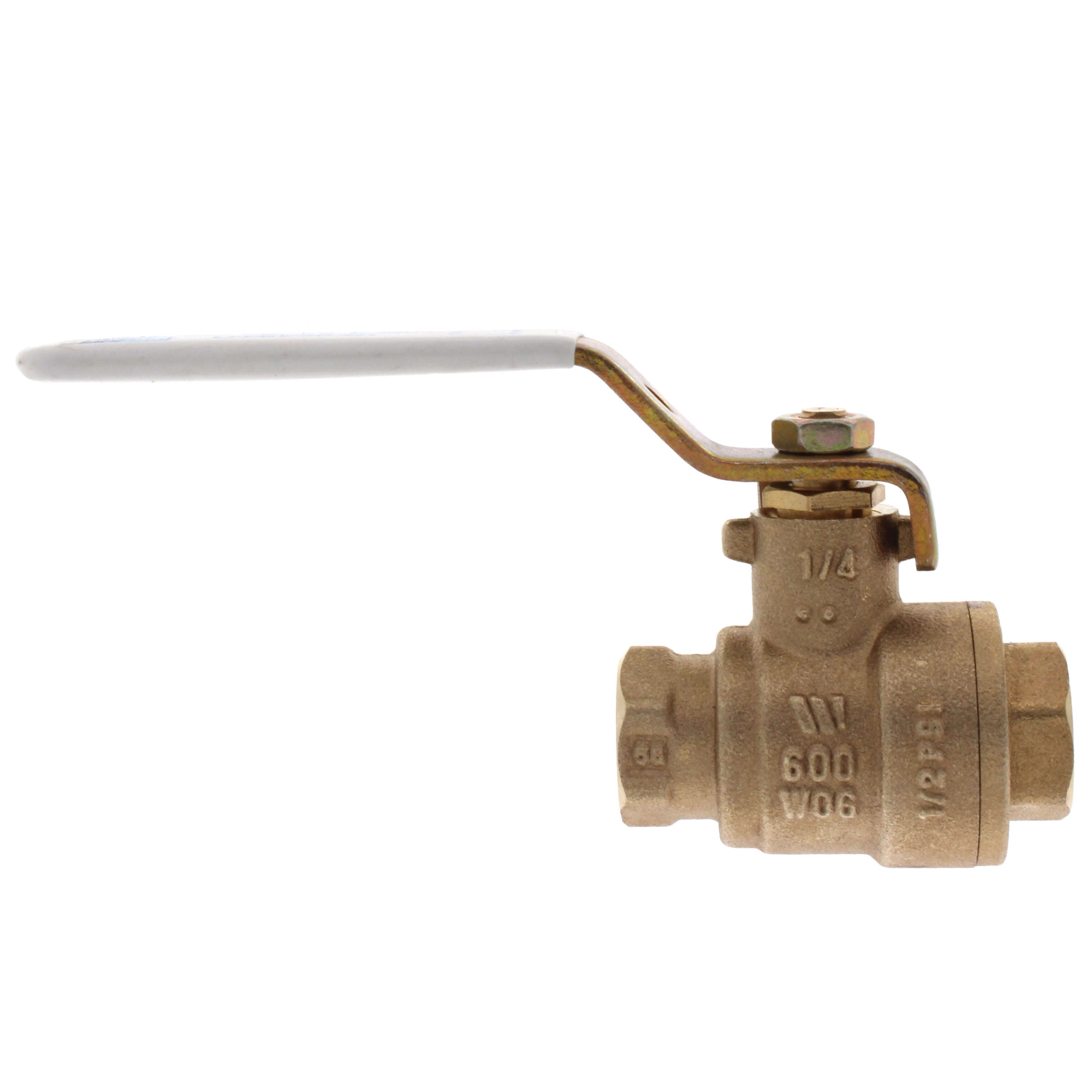

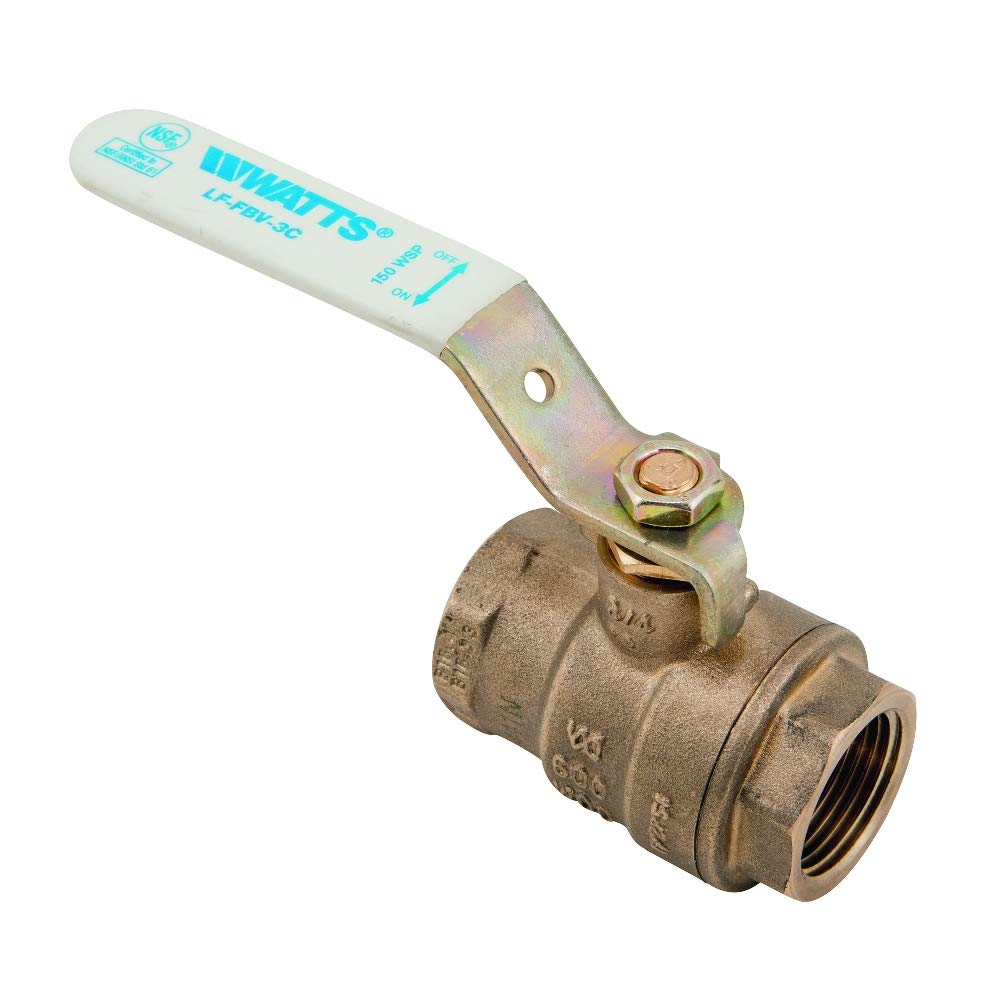

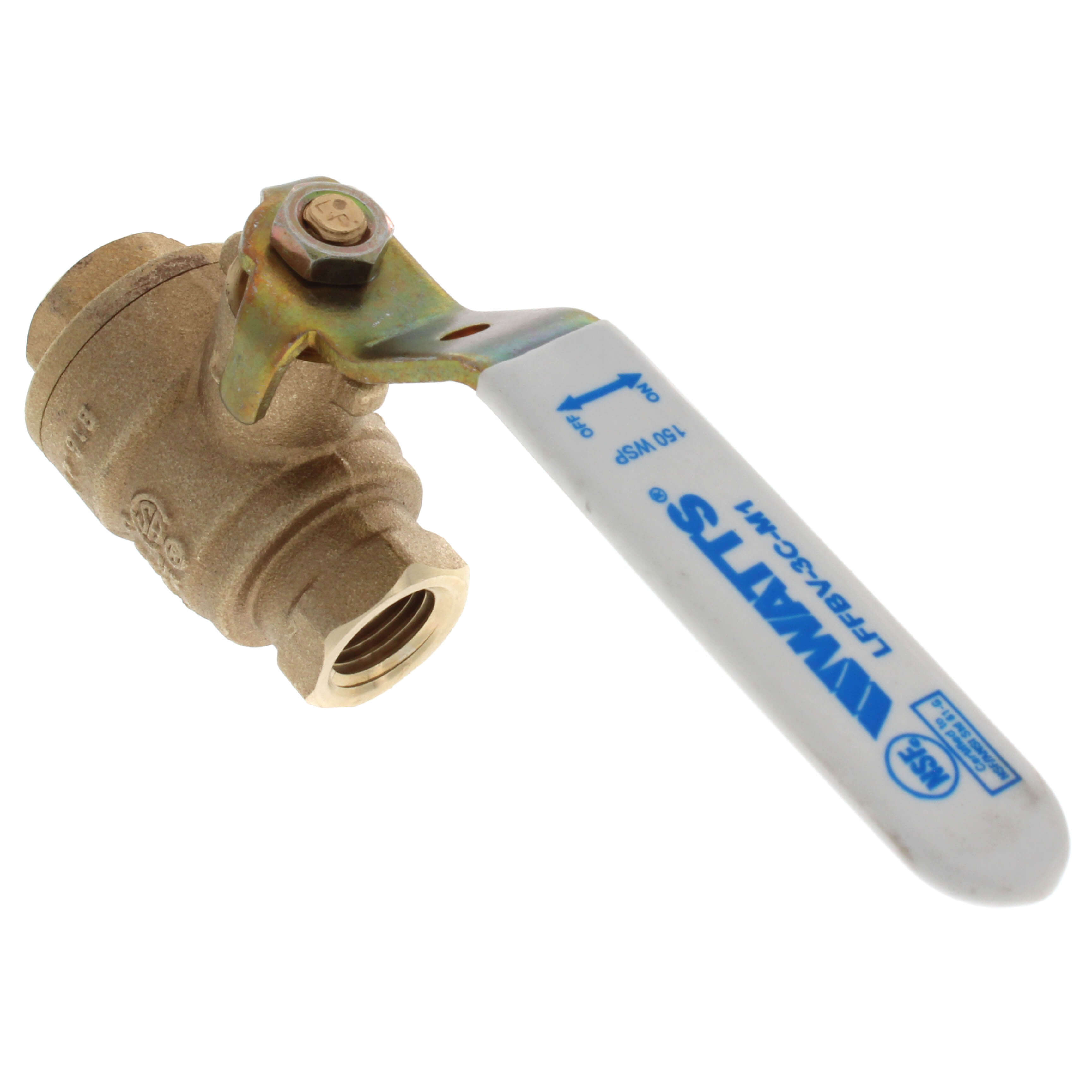

The WATTS 88005596 is a 1/4 inch two-piece full port ball valve used in residential and commercial potable water applications, suitable for a full range of liquids and gases. It features a lead free brass body and adapter, female threaded end connections and a steel handle. The valve has adjustable packing gland, chrome plated lead free brass ball, and virgin PTFE seats and seals.
- Two-piece full port ball valve
- Suitable for a full range of liquids and gases
- Lead free brass body and adapter
Product Highlights
This ball valve is designed for use in commercial and industrial applications. It is constructed for reliable performance and is certified to NSF/ANSI standard 61/8.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 88005596
-
Country of Origin: Taiwan, Province of China
Technical Specifications
-
PSI: 150 psi
-
Brand: Watts
-
Material: Brass
-
Size: 1/4"
-
Valve Type: Ball Valve
-
Max Temperature: 400
-
End Connections: Female threaded
-
Pressure Rating: 250 PSI WOG, 150 PSI WSP
-
Temperature Range: 0 to 400 deg F (-18 to 204 deg C)
-
Certifications: NSF/ANSI 61 and 372, CSA, UL, FM
-
WOG: 600
-
Port Type: Full Port
-
Thread Type: Female
-
Handle Style: Lever
-
Connection Type: FNPT x FNPT
-
Connection Method: Threaded
-
Max Pressure (PSI): 150
-
Valve Construction: 2 piece
-
Actuation: No
-
Ball Material: Chrome Plated Brass
-
Body Finish: Brass
-
Body Material: Lead Free Copper Silicon Alloy
-
Control Type: Lever Handle
-
EAN: 098268163612
-
Inlet Connection Size: 1/4 IN
-
Inlet Connection Size-Metric: 8 MM
-
Inlet Connection Type: Female Threaded
-
Inlet Thread Type: NPT
-
Lead Free: YES
-
Maximum Temperature-Fahrenheit: 400
-
Minimum Temperature - Celsius: -18.00
-
Minimum Temperature-Fahrenheit: 0
-
Outlet Connection Size: 1/4 IN
-
Outlet Connection Type: Female Threaded
-
Outlet Thread Type: NPT
-
Part Number: 88005596
-
Seat Material: Virgin PTFE
-
Series: LFFBV-3C-M1
-
Stem Packing Material: PTFE
-
Stem Shaft Material: Brass
-
Stem Type: Bottom Loaded Blowout Proof
-
Thrust Washer Material: PTFE
-
Valve Style: 2-piece
-
WOG Rating: 250 PSI
-
Nominal Size: 1/4 INCH X 1/4 INCH
-
Applicable Standard: UL, MSS-SP-110
-
Temperature Rating: 400 DEG F
-
Inclusions/Features: BOTTOM LOADED BLOWOUT PROOF STEM
-
End Connection: FEMALE THREADED X FEMALE THREADED
-
Actuation Type: LEVER HANDLE
-
Stem Packaging/Thrust Washer Material: PTFE
-
Model: LFFBV-3C-M1
-
Housing Material: Brass
-
Product Lot Quantity: 1
-
Diameter: 1/4 in
-
Configuration: 2-Piece
-

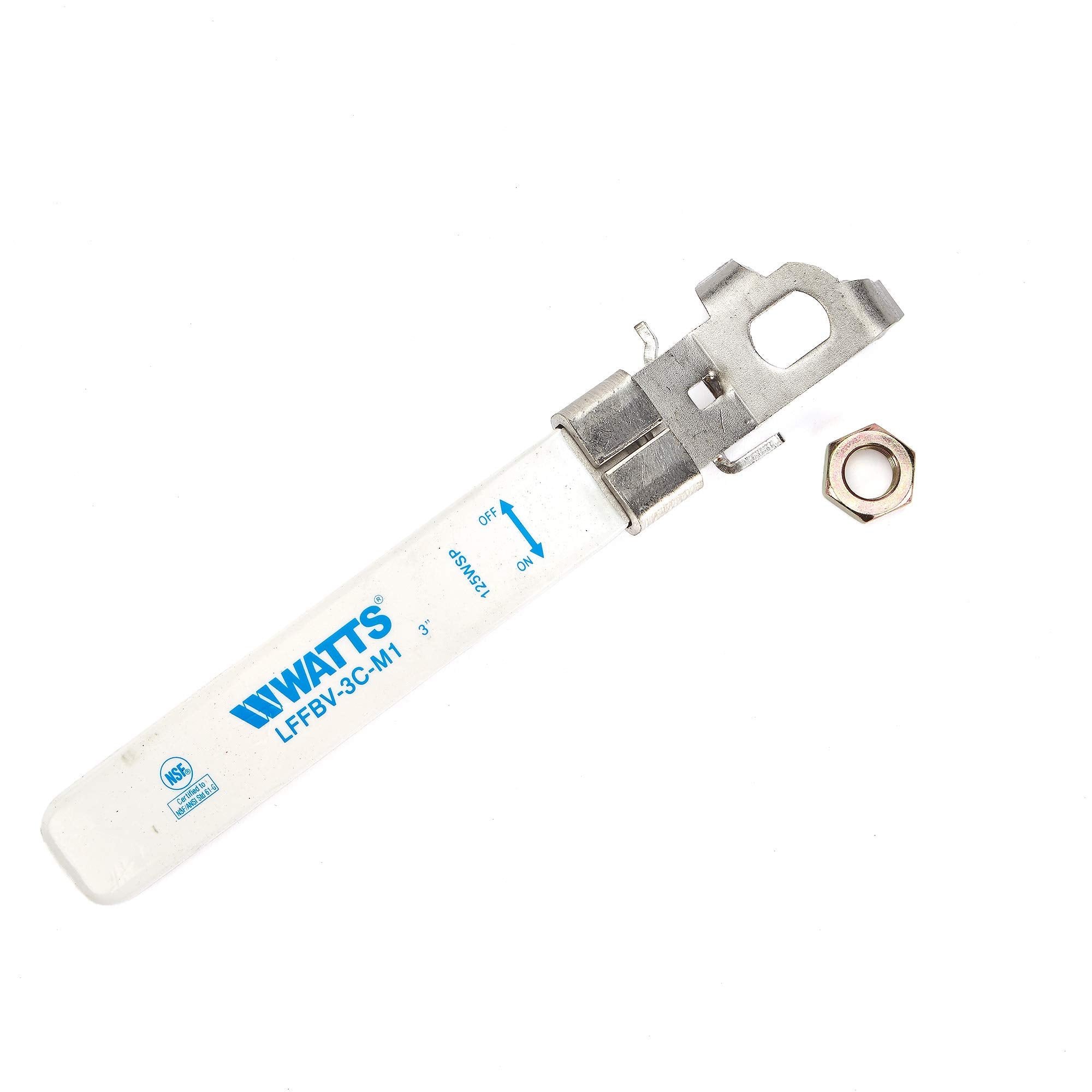

Handle Material: Steel
-
Inlet to Outlet Length: 1-7/8 in
-
Lead-Free/Contains Lead: Lead-Free
-
Media: Gas, Liquid, Water
-
Operator Type: Lever Handle
-
Packing Material: PTFE
-
Seal Material: PTFE
-
Softgoods Material: PTFE/Virgin PTFE
-
Stem Material: Brass
-
Top to Inlet Center: 1-13/16 in
-
Trim Material: Brass/Virgin PTFE
-
OEM: Watts Regulator Co.
-
OEM #: 88005596
-
Condition: New OEM Original
