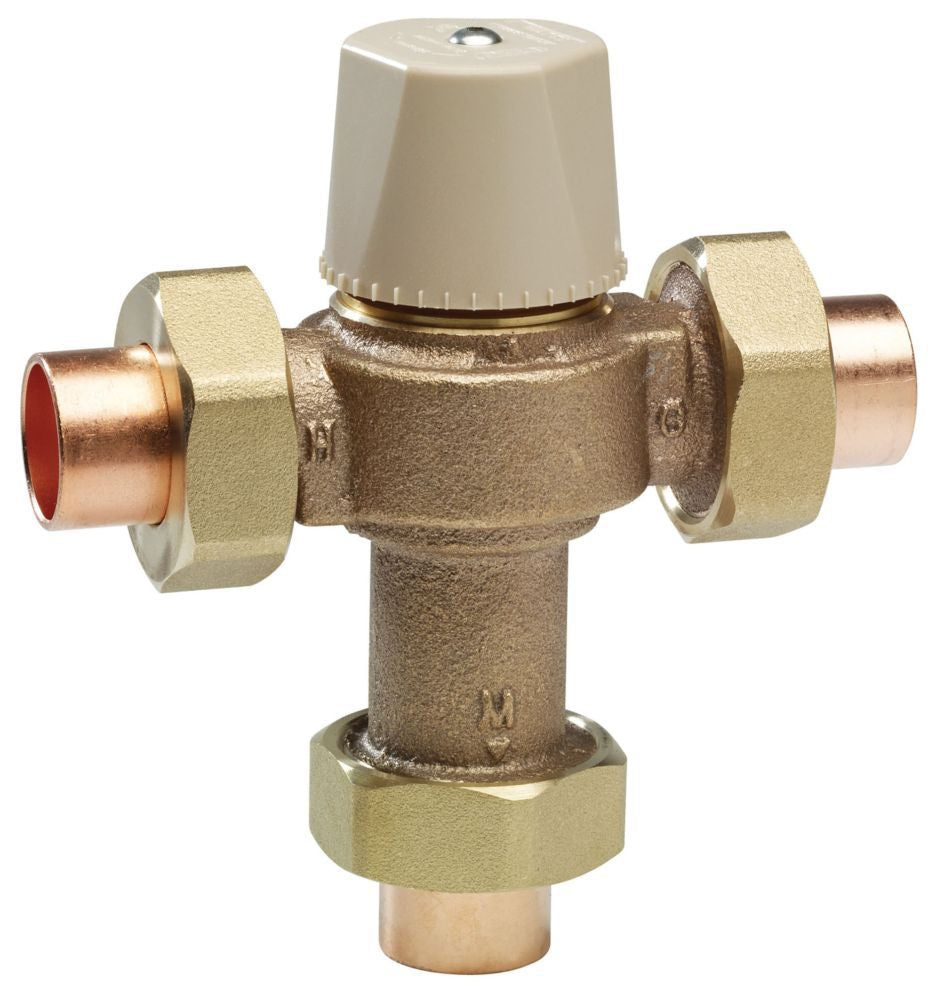

Watts 6550049 LFMM431-1 3/4 90-180F Master Mixing Valve

Product Description

The WATTS 6550049 LFMM431-1 is a durable master mixing valve ideal for commercial and institutional applications. It features 3/4 inch NPT connections, a rough bronze finish, and a vandal-resistant temperature setting for safety. The valve is factory tested to ensure optimal, consistent performance for many years. The temperature range is 90 to 160 degrees F.

• Rotatable union triple-duty checkstops
• Vandal-resistant, locking mechanism to secure temperature setting
• Virtual shutoff if supply pressure fails

Product Highlights

This master mixing valve features corrosion-resistant internals, triple-duty union check stops with screens, and a paraffin-based actuator.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 6550049
• Country of Origin: US

Technical Specifications

• Body Material: Brass
• End Style: NPT
• Finish: Rough Bronze
• Flow Rate: 42 gpm
• Media: Water
• Nominal Size: 3/4 in
• Pressure Rating: 125 psi
• Series: LFMM430
• Temperature Rating: 5 to 200 deg F
• Brand: Powers
• Alternate Part Number 1: LFMM431-1
• PART NUMBER: 6550049
