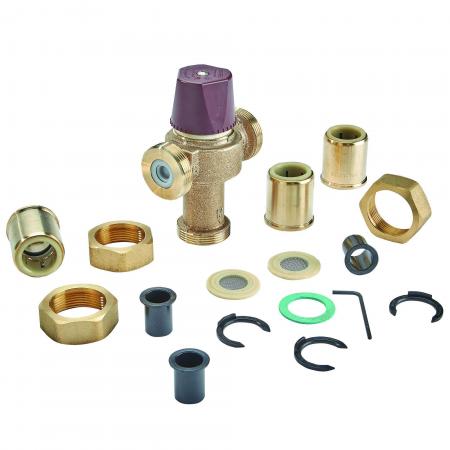

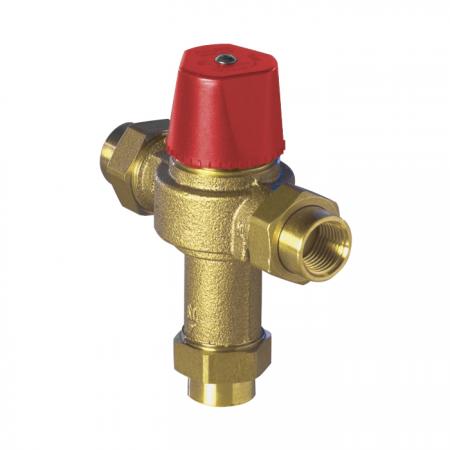

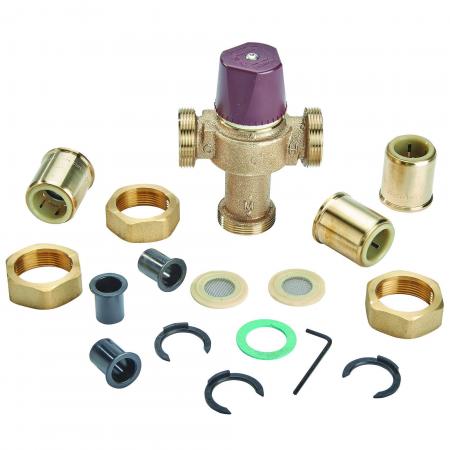

Watts 6550004 1/2 LFLM490-5 Thermostatic Tempering Valve

Product Description

The Watts Regulator Company 6550004 is a thermostatic tempering valve in the LFLM490 series. This valve is designed for robust pressure control in hot water systems. It features a quick-connect mechanism, making installation straightforward and efficient.

• Solid brass body for durability
• Locking handle to deter tampering
• Integral checks to prevent cross-flow

Product Highlights

This valve ensures optimal performance in water heating systems. It regulates temperature and enhances system safety with its locking handle feature. The advanced thermal actuator provides improved performance, even at low flow rates.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: LFLM490

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Brass
• Dimensions: 6-5/8 inches L x 6-1/4 inches H
• End Style: Quick-Connect
• Flow Rate: 23 gpm
• Media: Water
• Nominal Size: 1/2 inches
• Pressure Rating: 125 psi
• Temperature Rating: 5 to 200 degrees Fahrenheit
