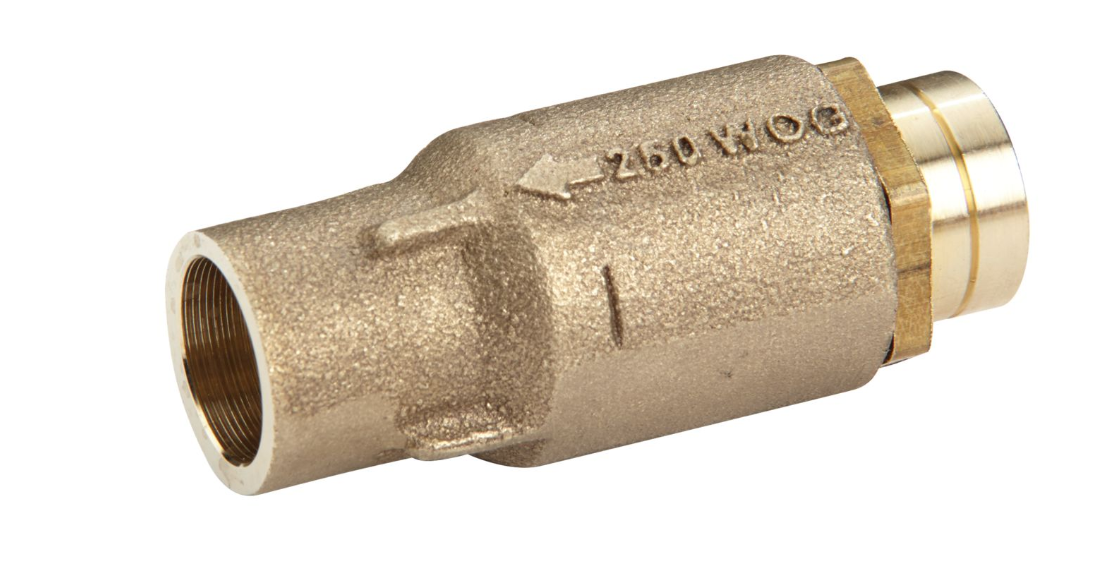

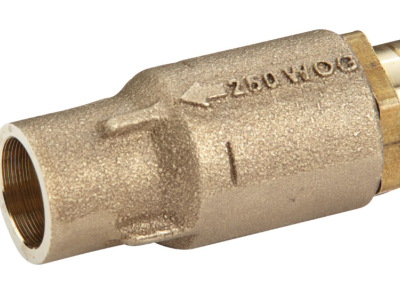

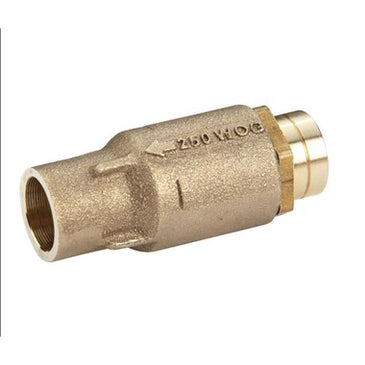

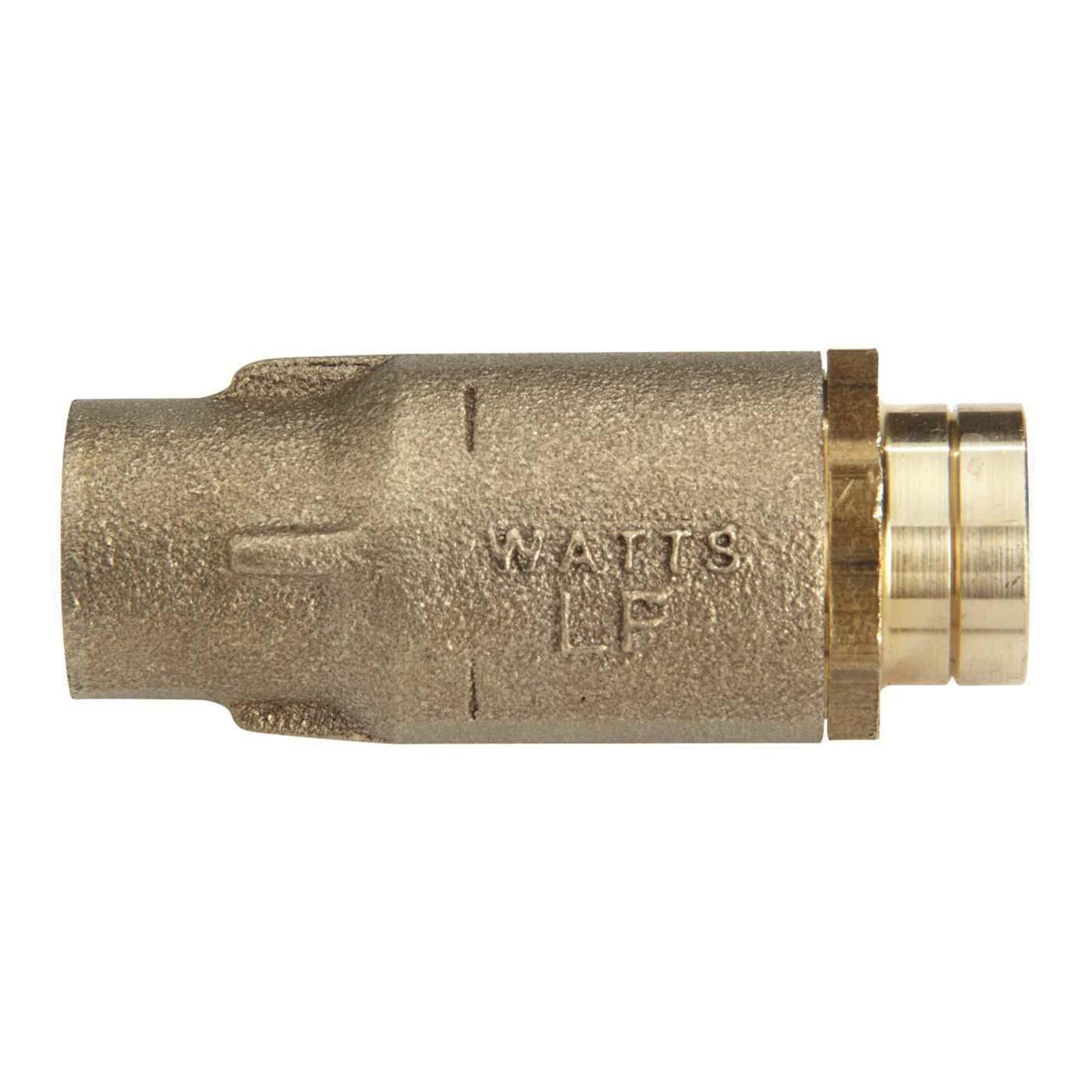

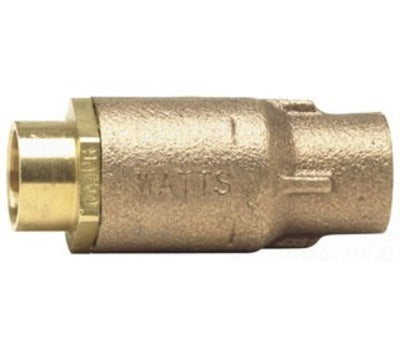

WATTS 601S MAXI-FLO CHECK VALVE

Product Description

WATTS 601S is a one inch Maxi-Flo check valve designed to prevent the effects of water hammer in piping systems. This valve features a robust bronze body, a Viton disc for superior sealing, and an integral brass seat for reliable operation. The 601S model is built for efficiency, allowing low pressure drops during fluid flow, making it an ideal choice for various plumbing applications.

• Max pressure rating: 400 PSI WOG at 100 degrees F
• Installation flexibility: can be set up in horizontal or vertical positions
• Effective in reducing water hammer effects

Product Highlights

This check valve is suitable for installations where silent operation is crucial.

Product Information

Standard Information

• Brand: WATTS
• MPN: 601S

Technical Specifications

• Body Material: Bronze
• Disc Material: Viton
• Seat Material: Brass
• Pressure Rating: 400 PSI WOG
• Temperature Rating: 100 degrees F
• Size: 1 inch
• Installation Types: Horizontal or Vertical
