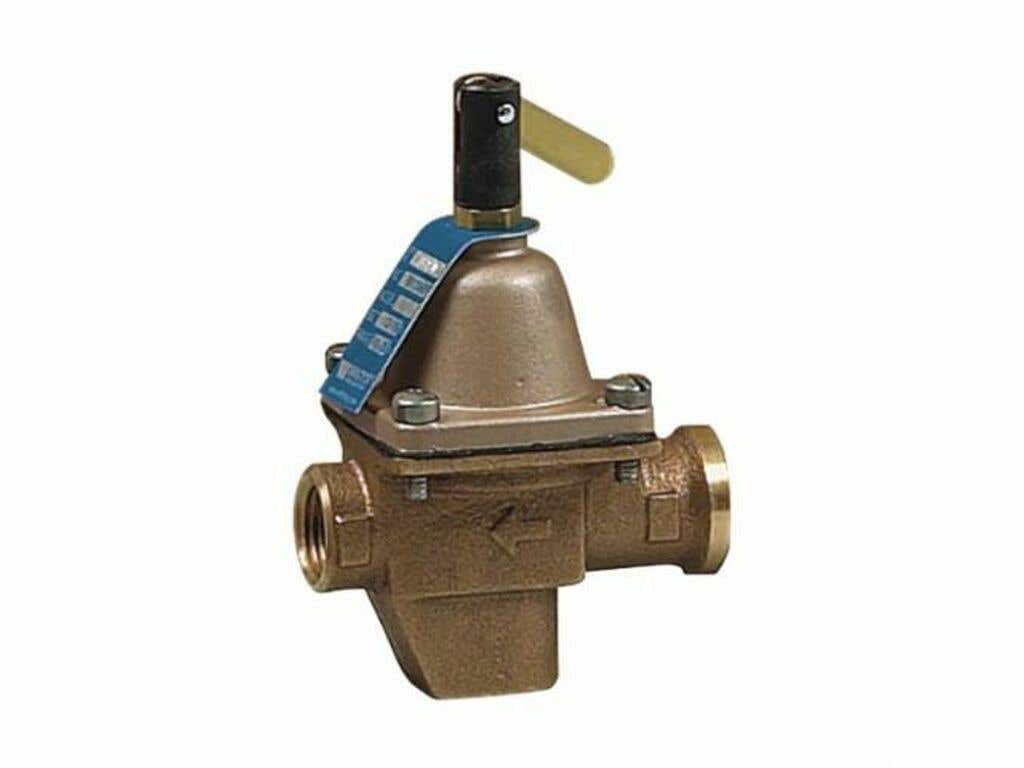

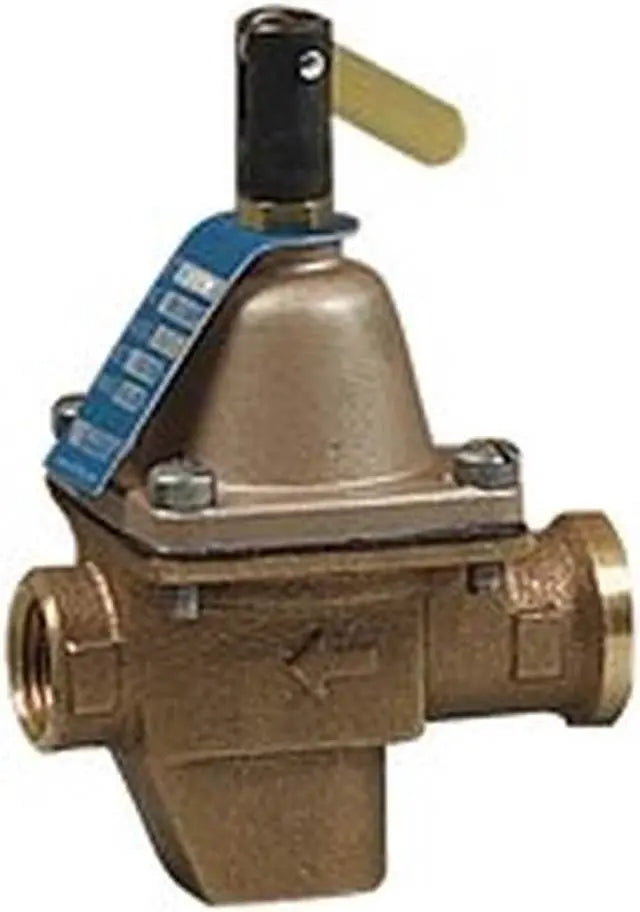

WATTS 386422 High Capacity Water Feed Regulator 1/2 SB1156F

Product Description

The WATTS 386422 high capacity water feed regulator is essential for maintaining optimal water pressure in both commercial and residential hydronic heating systems. This device fills the boiler and the connected piping system with water and ensures consistent pressure management.

• Features a 1/2 inch union solder inlet connection.
• Offers a adjustable pressure range of 10 to 25 psi.
• Equipped with a purge lever for easy manual purging.

Product Highlights

This regulator is designed to provide make-up water to the system when leaks occur and allows for simple servicing.

Product Information

Standard Information

• Brand: WATTS
• MPN: 386422

Technical Specifications

• Connection Size: 1/2 inch

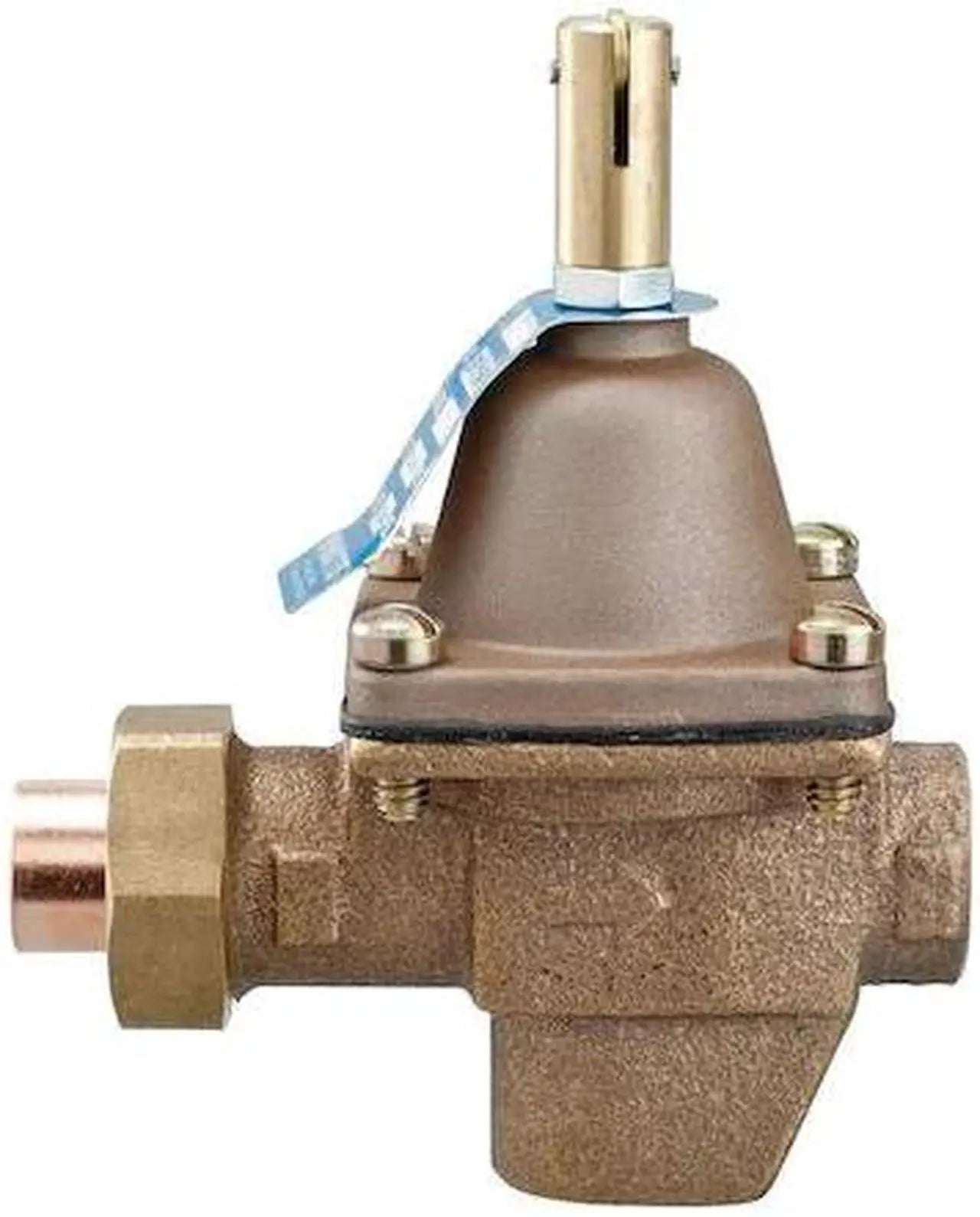

• Inlet Connection: 1/2 inch Union Solder
• Outlet Connection: 1/2 inch
• Outlet Pressure Preset PSI: 15
• Outlet Pressure Range PSI: 10-25
• Connection Type: Solder x NPT
• Material: Bronze
• Pressure Rating: 10 to 25 psi, 100 psi

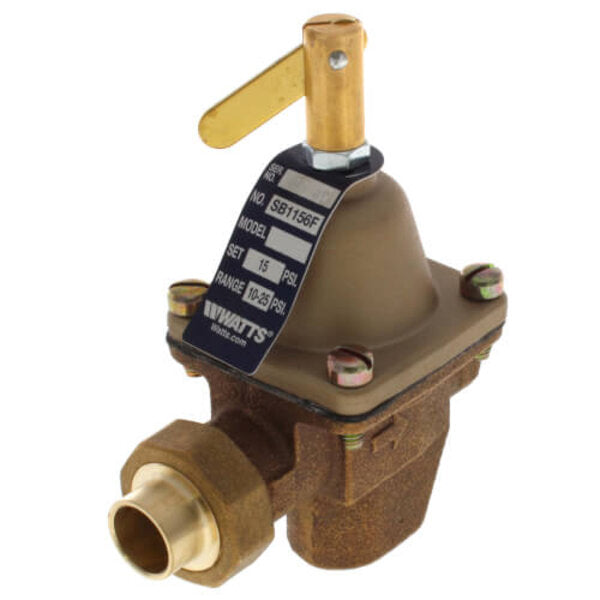

• Series: SB1156F Series
• Temperature Rating: 33 to 212 degrees F
• Item Type: Water Pressure Regulator
