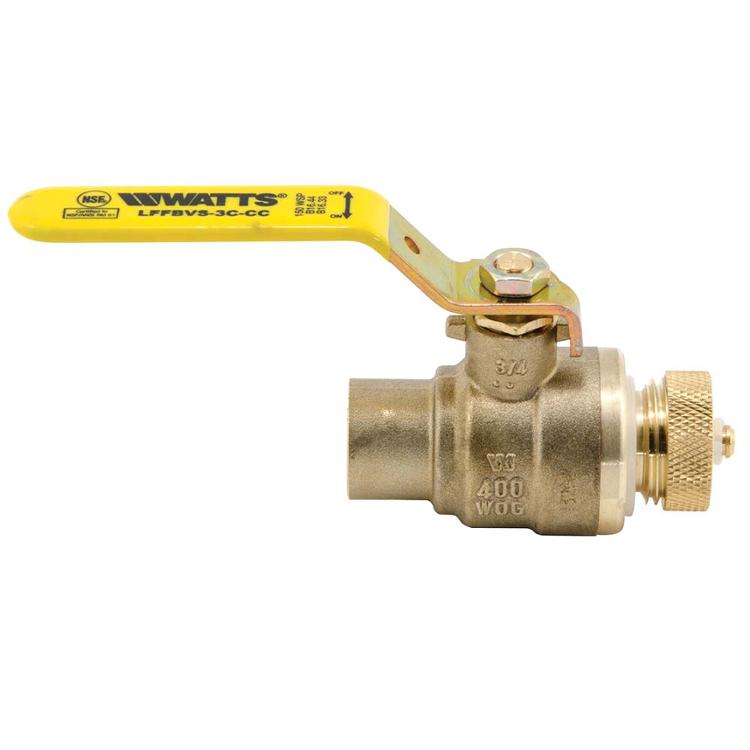

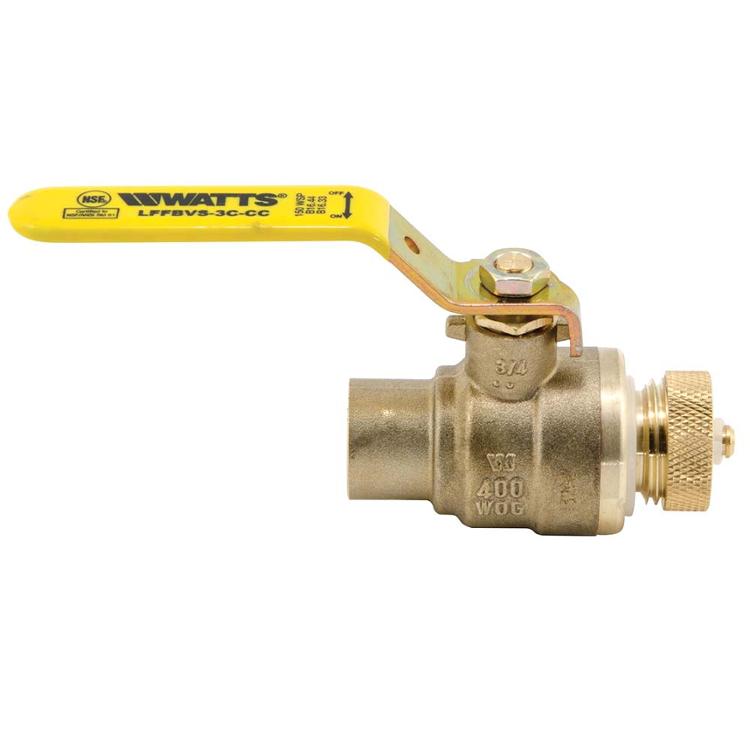

Watts 123476 Full Port Ball Valve 0.5 in Sweat Lead Free

Product Description

The WATTS 123476 is a 2-piece, full port, lead free brass ball valve designed for commercial and industrial fluid and gas control. It features a solder (sweat) end connection, a machined chrome-plated lead free brass ball, and a virgin PTFE seat for reliable, low-friction shutoff. The bottom-loaded blowout-proof stem and fluorocarbon elastomer stem O-ring prevent leaks under sustained operating pressure. Rated at 600 psi WOG and 150 psi WSP, this valve is suited for demanding service environments. It ships with a cap and chain, thrust washer, adjustable stem packing gland, stem packing nut, and a steel handle. Licensed plumbers and pipefitters install this valve in commercial plumbing, process piping, and mechanical systems.

This valve is appropriate for residential and commercial applications involving water, oil, and gas service. The full port design minimizes flow restriction, making it well suited for systems where pressure drop and flow capacity are critical. Sweat (solder) end connections allow clean, leak-resistant installation in copper piping systems. The lead free brass construction meets requirements for potable water systems where lead free compliance is mandated.

Key Features

• Lead free brass body and ball construction meets lead free compliance requirements for potable water service
• Full port design minimizes pressure drop and maintains full flow capacity
• 600 psi WOG and 150 psi WSP pressure ratings for demanding commercial and industrial service
• Bottom-loaded blowout-proof stem for enhanced safety under pressure
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Includes cap and chain, thrust washer, adjustable packing gland, and steel handle
• Virgin PTFE seat provides low-torque, durable shutoff for liquids and gases

Compatibility

Designed as an OEM-style replacement or new-installation full port ball valve for 0.5-inch copper sweat piping systems used in water, oil, and gas service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements where gas service is involved. Shut off and depressurize the supply line completely before cutting into existing piping or removing an old valve. Use appropriate soldering flux and lead free solder when making sweat connections, and allow all joints to cool fully before restoring pressure. Verify the valve handle orientation and flow direction before returning the system to service.

Technical Specifications

• Connection Type: Sweat (Solder) End
• Port Type: Full Port
• Pipe Size: 0.5 inches
• Body Material: Lead Free Brass
• Ball Material: Machined Chrome Plated Lead Free Brass
• Seat Material: Virgin PTFE
• Stem Seal: Fluorocarbon Elastomer O-Ring
• Pressure Rating (WOG): 600 psi
• Pressure Rating (WSP): 150 psi
• Configuration: 2-Piece
• Handle Material: Steel
• Included Accessories: Cap and Chain, Thrust Washer, Adjustable Stem Packing Gland, Stem Packing Nut
• Media Compatibility: Water, Oil, Gas

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 123476
