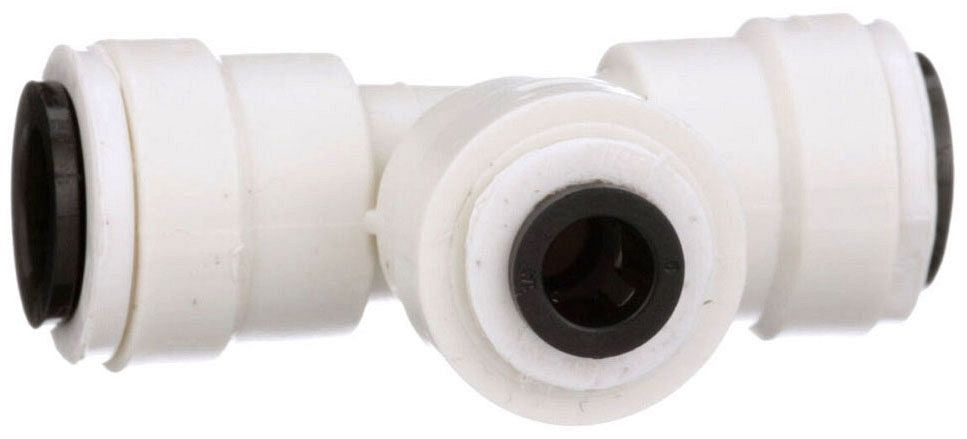

Watts 0666118 Reducing Tee 3/8 x 3/8 x 1/4 IN

Product Description

The WATTS 0666118 AquaLock™ push-to-connect mini reducing tee is made of high-performance thermoplastic material, providing fast and secure connections without tools. Designed for years of trouble-free service and suitable for hot and cold water applications. The fitting joins the tubing on the outside, increasing the flow capacity.

• Works with plastic or soft copper tubing
• No tools required
• No flow restriction

Product Highlights

This fitting features a zero-leak patented O-ring guide and rotates under pressure, even after installation, for high flexibility.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0666118

Technical Specifications

• Brand: Watts
• Inlet Connection Size: 3/8 IN
• Inlet Connection Type: Push to connect
• Inlet Material: Polypropylene
• Lead Free: YES
• Material: Polypropylene
• Maximum Working Pressure-PSI: 150
• Maximum Working Temperature-Fahrenheit: 140
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 1/4 IN
• Outlet Connection Type: Push to connect
• Outlet Material: Polypropylene
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0666118
• Series: Reducing Tee 1024R
• Suitable for Gas Service: No
• Maximum Working Pressure-BAR: 10.30
• Maximum Working Temperature-Celsius: 60.00
• Minimum Temperature - Celsius: 0.50
• Buy American Act Compliant: NO
• EAN: 098268426533
• Finish: Plastic
• Fitting/Connector Type: Tee
• Nominal Size: 3/8 Inch x 3/8 Inch x 1/4 Inch
• Pressure Rating: 150 PSI at 70 Deg F
• Temperature Rating: 33 to 140 Deg F
• Type: Reducing
• End Connection: Quick-Connect x Quick-Connect x Quick-Connect
