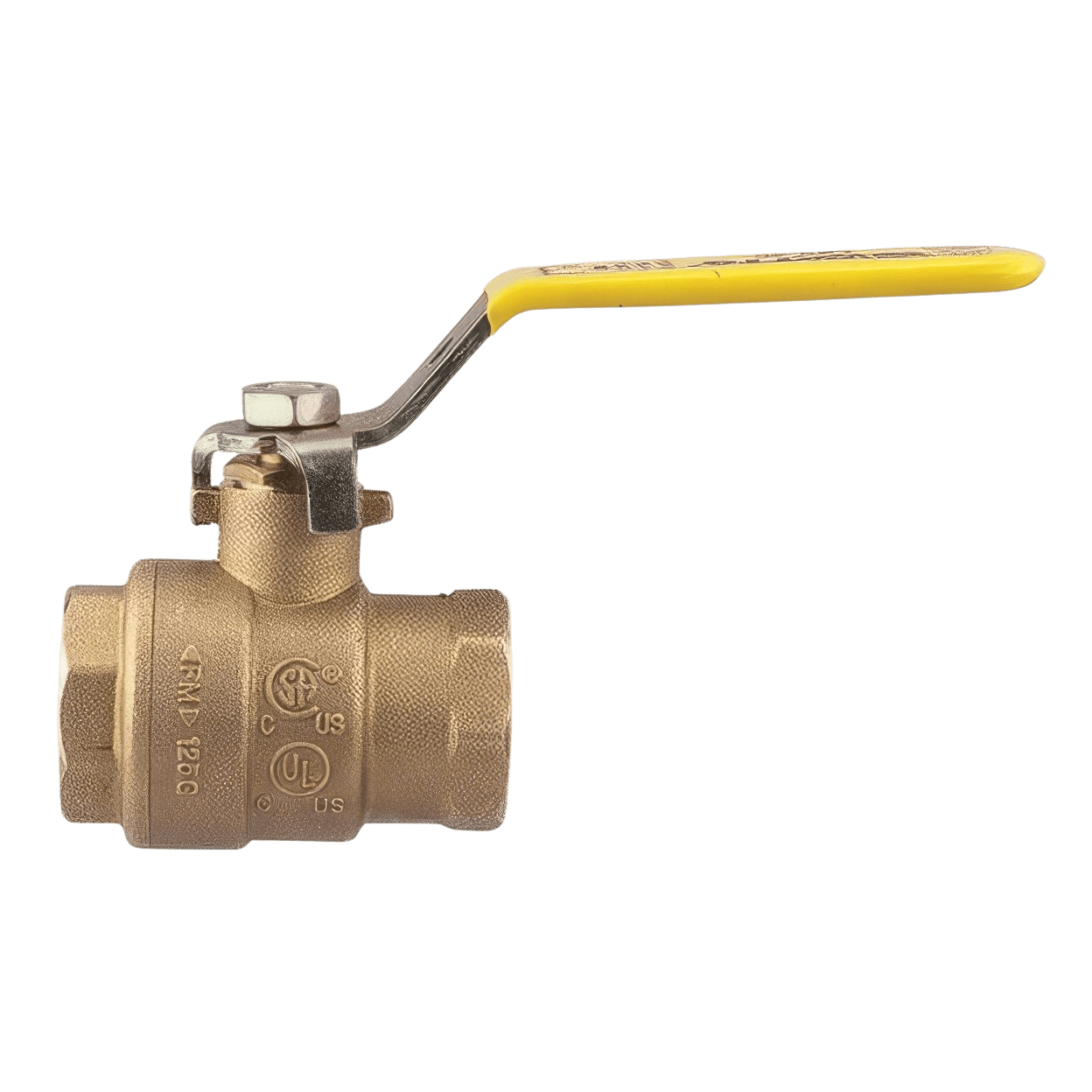

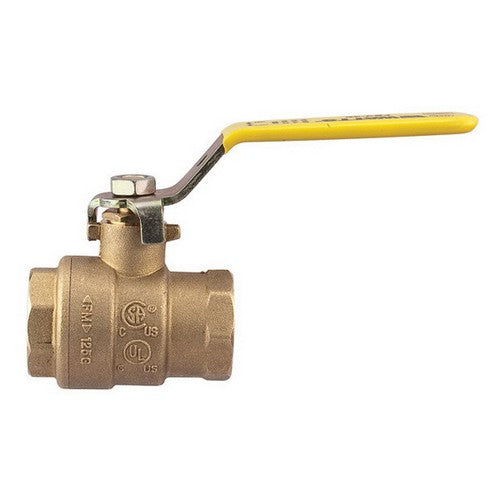

Watts 0555117 LFFBVS-3C Full Port Brass Ball Valve, 3 inch, Sweat x Sweat

Product Description

The Watts Water Technologies LFFBVS-3C is a full port brass ball valve with MPN 0555117. This valve is designed for use in various plumbing applications, allowing for efficient flow control. It has a three-inch opening and uses a sweat x sweat connection, suitable for both water and gas media.

• Full port design for increased flow capacity.
• Lead-free construction for safe use.
• Temperature rating of negative forty to four hundred degrees Fahrenheit.

Product Highlights

This valve is ideal for commercial and industrial settings, ensuring reliability and compliance with safety standards.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555117

Technical Specifications

• Series: LFFBVS-3C
• Type: Full Port, Lead Free
• Nominal Size: 3 inch
• Connection Type: Sweat x Sweat
• Media: Water, Oil, and Gas
• Opening Size: 3 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
• Max. Pressure: 400 psi Non-Shock
• Max. Steam Pressure: 125 psi WSP
• Dimensions: Dimension C: 4.5 inch; Dimension H1: 7-3/4 inch; Dimension L1: 7-3/8 inch
