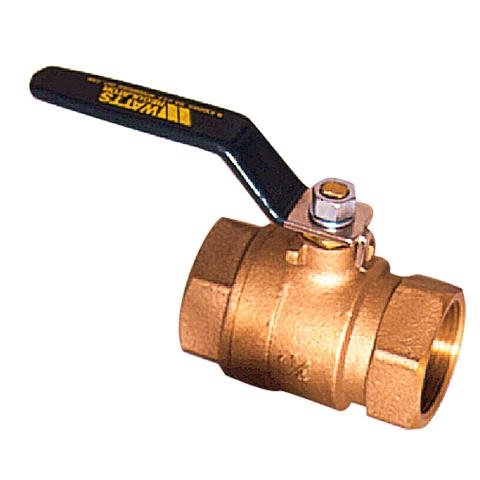

Watts 0547107 2 feet' 2-Piece, Full Port, Brass Ball Valve

Product Description

The WATTS 0547107 2'' 2-Piece, Full Port, Brass Ball Valve is designed for commercial and industrial applications with a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seat and thrust washer, and an adjustable stem packing gland. The valve is made of durable brass.

• NSF approved
• Full port
• Bottom loaded blowout proof stem

Product Highlights

This brass ball valve is suitable for various applications, providing reliable performance and durability. Recommended for open/close applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547107
• Country of Origin: MEXICO

Technical Specifications

• Actuation: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Forged Brass
• Brand: Watts
• Buy American Act Compliant: NO
• Control Type: Tee Handle
• EAN: 098268335897
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 50 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Part Number: 0547107
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: FBV-3C
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Domestic / Import: Import
• End Style: Thread
• Nominal Size: 2 in
• Softgoods Material: Fluorocarbon / Virgin PTFE
• Inlet to Outlet Length: 4-1/8 in
• Media: Gas/Liquid
• Pressure Rating: 600 psi
• Temperature Rating: -40 to 400 deg F
• Top to Inlet Center: 3-1/2 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Conn. Size: 2" Threaded
