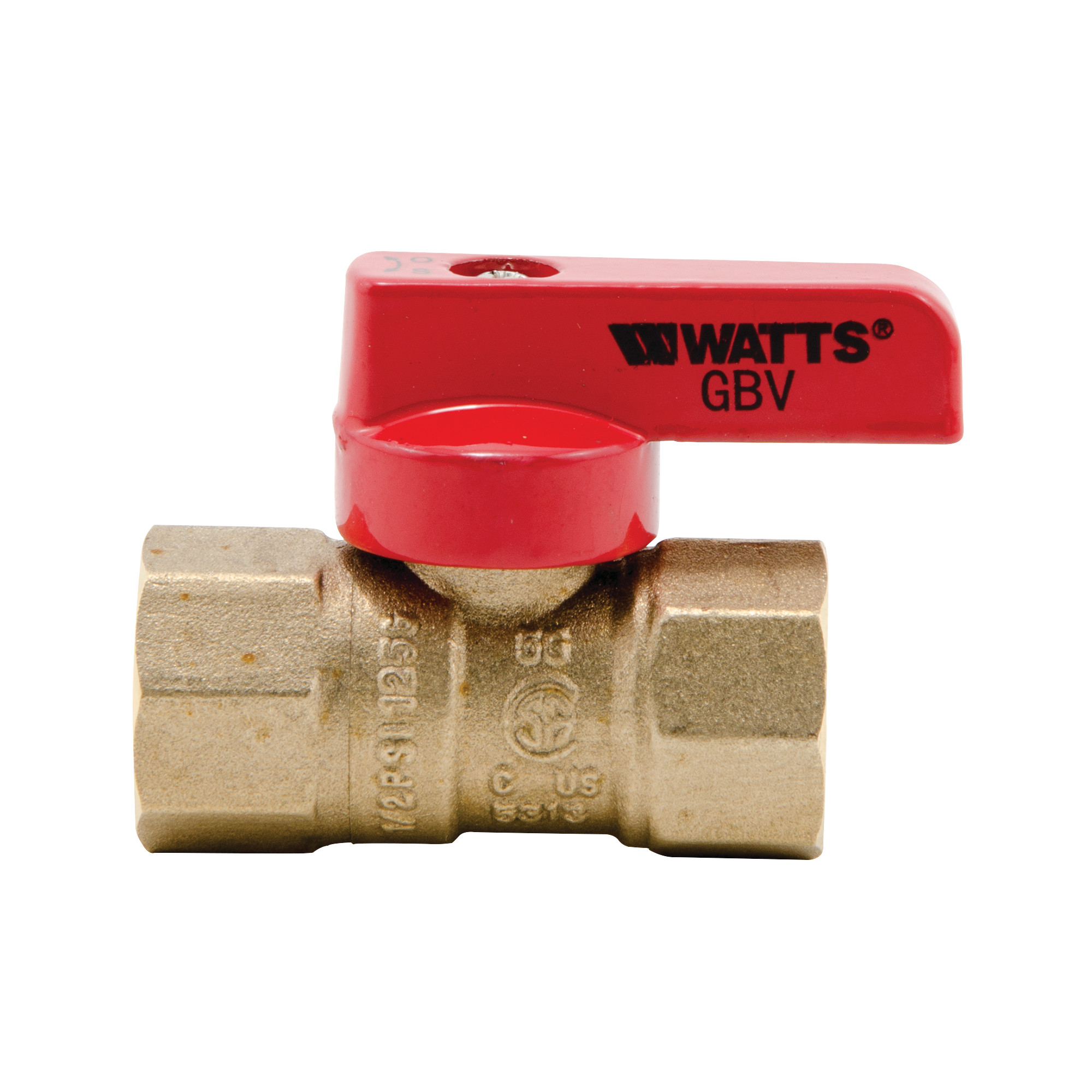

Watts 0545001 Gas Ball Valve 3/8 Inch Npt Female

Product Description

The WATTS 0545001 is a 3/8 inch two-piece brass ball valve designed specifically for gas service in residential and commercial piping systems. It features female NPT threaded connections on both ends, a tee-style handle, and virgin PTFE seats and seals for reliable shutoff on natural gas and LP gas lines. The valve body and end piece are brass construction, with a zinc alloy handle. Rated for a maximum working pressure of 5 psi and a temperature range of -20 to 125 degrees F, it is sized and rated for indoor and in-house gas piping applications. Licensed plumbers and gas fitters are the typical installers of this valve.

The WATTS 0545001 is suited for residential and light commercial gas distribution piping, including supply lines for appliances such as furnaces, water heaters, dryers, and ranges served by natural gas or LP gas. It is intended for indoor and in-house piping systems only. The female NPT connections on both ends allow direct threading onto standard pipe or gas flex connector fittings commonly found in these installations.

Key Features

• 3/8 inch female NPT connections on both ends for standard threaded pipe installation
• Two-piece brass body construction for durability in gas service
• Virgin PTFE seats and seals for leak-resistant shutoff on gas lines
• Zinc alloy tee handle for positive open/close indication
• Rated for natural gas and LP gas service
• Maximum working pressure of 5 psi with operating range of -20 to 125 degrees F

Compatibility

Designed for use on indoor natural gas and LP gas piping systems in residential and commercial applications. Intended for in-house gas piping only. Not rated for outdoor, high-pressure, or water service.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC). Shut off the upstream gas supply and verify zero pressure before installing or servicing this valve. Apply an appropriate gas-rated thread sealant or tape to all male threaded connections before assembly. This valve is rated for gas service only — do not install on water, steam, or other fluid systems.

Technical Specifications

• Pipe Size: 3/8 inches
• Connection Type: Female NPT both ends
• Body Construction: 2-piece brass
• Seats and Seals: Virgin PTFE
• Handle Material: Zinc alloy tee handle
• Maximum Working Pressure: 5 psi
• Temperature Range: -20 to 125 degrees F
• Gas Service: Natural gas and LP gas
• UPC: 098268074352

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0545001
