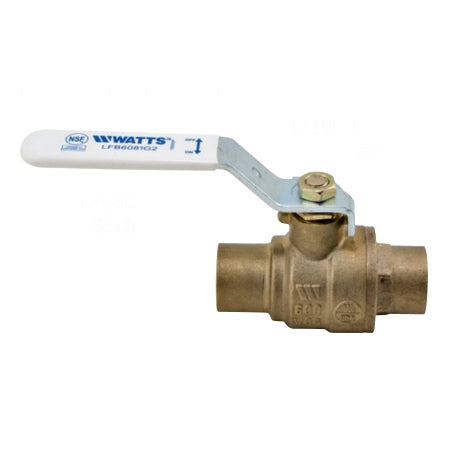

Watts 0450114 LFB6080G2 2-Piece Ball Valve w/ Handle, Forged Bronze Body

Product Description

The Watts 0450114 LFB6080G2 series 2-Piece, Full Port, Lead Free bronze Ball Valves are used in commercial and industrial applications for a full range of liquids and gasses. They feature a blow-out proof pressure full-port orifice which ensures minimal pressure drop. Model LFB6080G2 has threaded NPT end connections and Model LFB6081G2 has solder end connections.

• Lead free forged bronze body and adapter
• Stainless steel ball and stem
• Minimal pressure drop due to large ports

Product Highlights

This ball valve is rated for 600 psi WOG (non-shock) 150 psi WSP. Features Lead Free construction to comply with Lead Free installation requirements.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0450114
• Country of Origin: Domestic

Technical Specifications

• Body Material: Forged Bronze
• Domestic / Import: Domestic
• End Style: solder
• Nominal Size: 2 in
• Port Type: Full
• Softgoods Material: Virgin PTFE/Fluorocarbon Elastomer
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 5-3/8
• Manufacturer: Watts Water Technologies
• Manufacturer #: 0450114
• Media: Gas/Liquid
• Pressure Rating: 600 psi
• Series: LFB6080G2
• Temperature Rating: 0 to 400 deg F
• Top to Inlet Center: 3-1/2
• Trim Material: Brass Stem
• Type: 2-Piece
• Inlet/Outlet Connection Size: 2 inch
• Inlet/Outlet Connection Type: Socket
• Seat/Stem Packing/Thrust Washer Material: Virgin PTFE
• Stem Shaft Material: Brass
• Application: Used in commercial and industrial applications for a full range of liquids and gases
• Feature: Blowout proof, pressure retaining stem
• Certification: Lead Free* NSF-372 certification
• Connection: Available with threaded NPT and solder end connections
• Housing Material: Bronze
• WOG Rating: 600 psi
• Port Size: Full Port (FP)
• Watts Ordering Code: 0450114
• Valve Operation: Manual
• End Connection Type: Solder Ends
• Diameter: 2 in
• UPC: 098268763669
• Applicable Standard: NSF 372
• Inclusions/Features: BLOWOUTPROOF PRESSURE RETAINING STEM, THRUST WASHER, ADJUSTABLE STEM PACKING GLAND
• End Connection: SOLDERED X SOLDERED
• Handle Material: Zinc Plated Carbon Steel With Vinyl Insulator
• End to End Distance: 5-3/8 INCH
• Actuation Type: T-HANDLE
• Seat Material: Virgin PTFE
• Stem Material: Brass
• LEAD-FREE: LEAD-FREE
• Handle Nut Material: Zinc Plated Carbon Steel
• Adapter Material: Forged Bronze
• MODEL: LFB6080G2
• Actuation: Yes
• Assembled Dry: No
• Balance Stop Plate: No
• Body Finish: Bronze
• Buy American Act Compliant: YES
• Class Rating: Does Not Apply To Product
• Control Type: Tee Handle
• CV Rating: Does Not Apply To Product
• EAN: 098268763669
• Electrical Rating: Does Not Apply To Product
• Inlet Connection Size-Metric: 50 MM
• Inlet Thread Type: Does Not Apply To Product
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -40.00
• Minimum Temperature-Fahrenheit: -40
• Operating Torque: Does Not Apply To Product
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Socket
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0450114
• Stem Packing Material: Virgin PTFE
• Stem Type: Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
