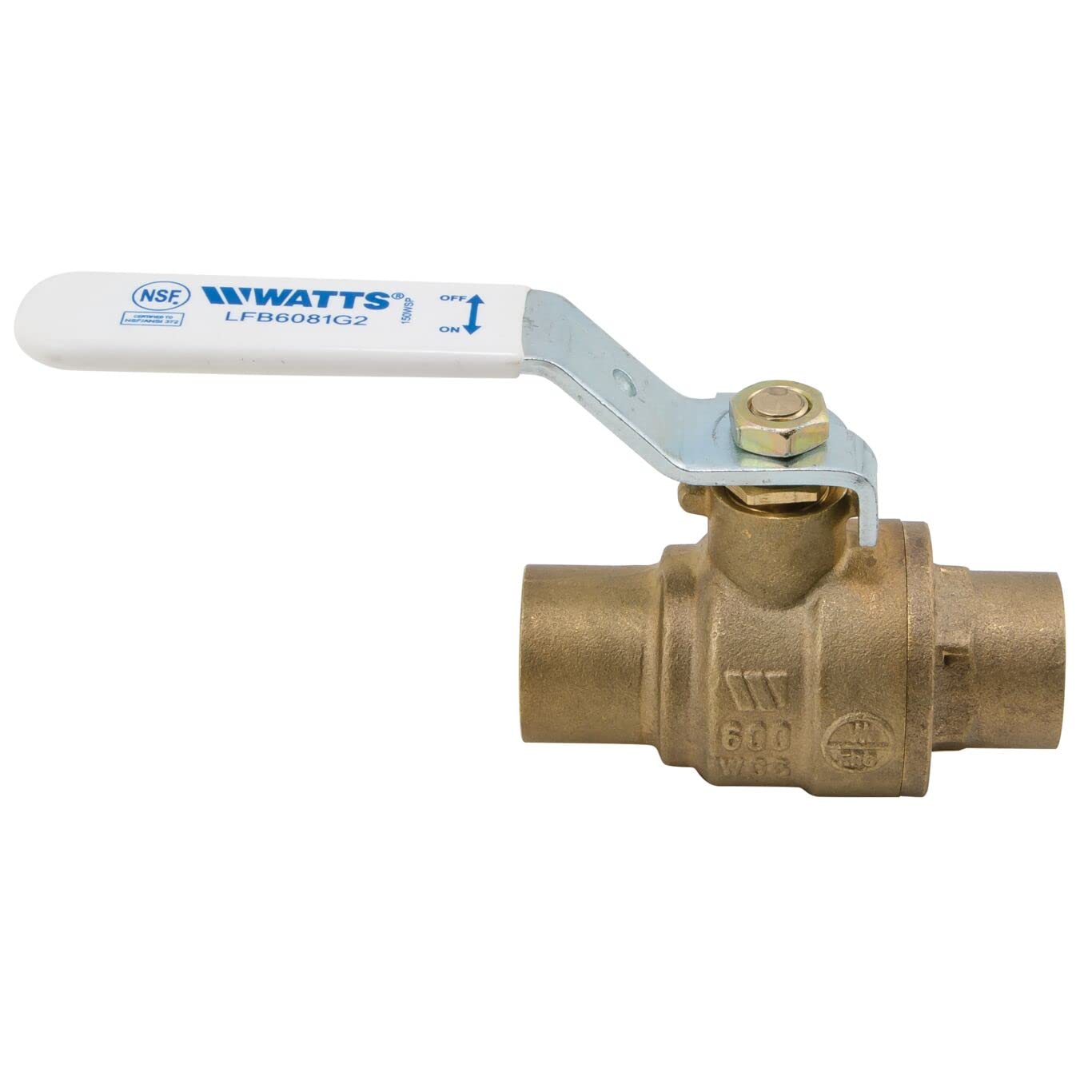

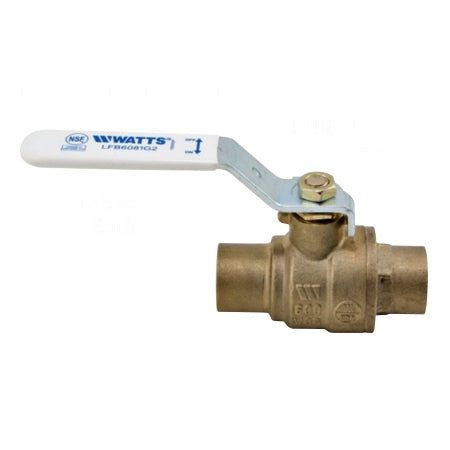

Watts 0450112 Lfb6081g2 1 1/4 valve

Product Description

The WATTS 0450112 LFB6081G2 1 1/4 valve is used in commercial and industrial applications. It features a blowout proof stem and a full-port orifice to ensure minimal pressure drop. This lead-free, 2-piece full port bronze ball valve has a solder end connection and is rated for 600 WOG/150 WSP.

• Lead Free, forged bronze body and adapter
• Full-port flow
• Certified to NSF 372
• Minimal pressure drop due to large ports
• Blowout proof, pressure retaining stem

Product Highlights

This valve is designed for use with a full range of liquids and gases, ensuring lasting service in demanding environments.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0450112

Technical Specifications

• Product Type: VALVE
• Manufacturer: Watts
• Brand: Watts Premier
• MPN: 0450112
• Body Material: Bronze
• Inlet/Outlet Connection Size: 1 1/4 inch
• Inlet/Outlet Connection Type: Socket
• Temperature Range: 0°F - 400°F (-18°C – 205°C) @ 50psi (3.4 bar)
• Seat/Stem Packing/Thrust Washer Material: Virgin PTFE
• Stem Shaft Material: Brass
• Pressure Range: 600psi (41 bar) WOG, non-shock; 150psi (10.3 bar) WSP
• Ball Material: Chrome Plated Brass
