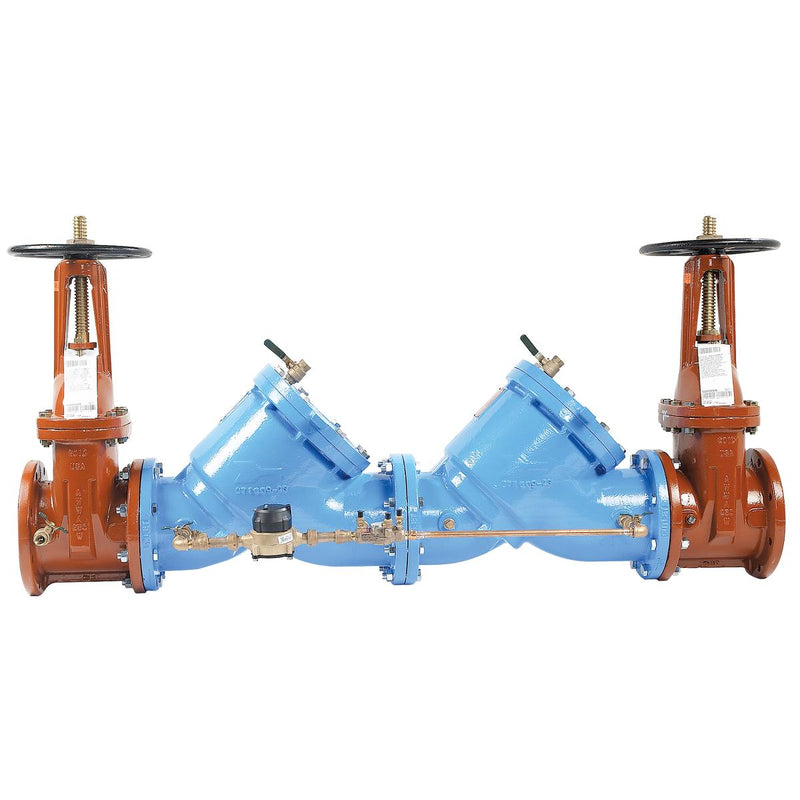

Watts 0389173 3 709DCDA-OSY-CFM 3/4

Product Description

The Watts 0389173 is a 3 inch double check detector assembly designed to prevent backflow in non-health hazardous applications. This assembly features a fused epoxy coated cast iron body which provides strong corrosion resistance. It incorporates a 3/4 inch bypass and a cubic feet meter to monitor leaks and unauthorized usage. The valve operates at a maximum pressure of 175 psi and has a temperature rating between thirty-three to one hundred ten degrees Fahrenheit.

• Utilizes ArmorTek coating technology to resist internal corrosion
• Modular check design for simplified maintenance
• Outside stem and yoke shutoffs for ease of use

Product Highlights

This device helps in leak detection thereby reducing annual water costs and ensuring compliance with plumbing standards.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Category: Plumbing

Technical Specifications

• Series: 709DCDA
• Nominal Size: 3 inches
• Material: Cast Iron
• Finish: Fused Epoxy Coated
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 110 degrees Fahrenheit
• Connection Type: Flanged Joint
• Backflow Type: Dual Check
