Product Description

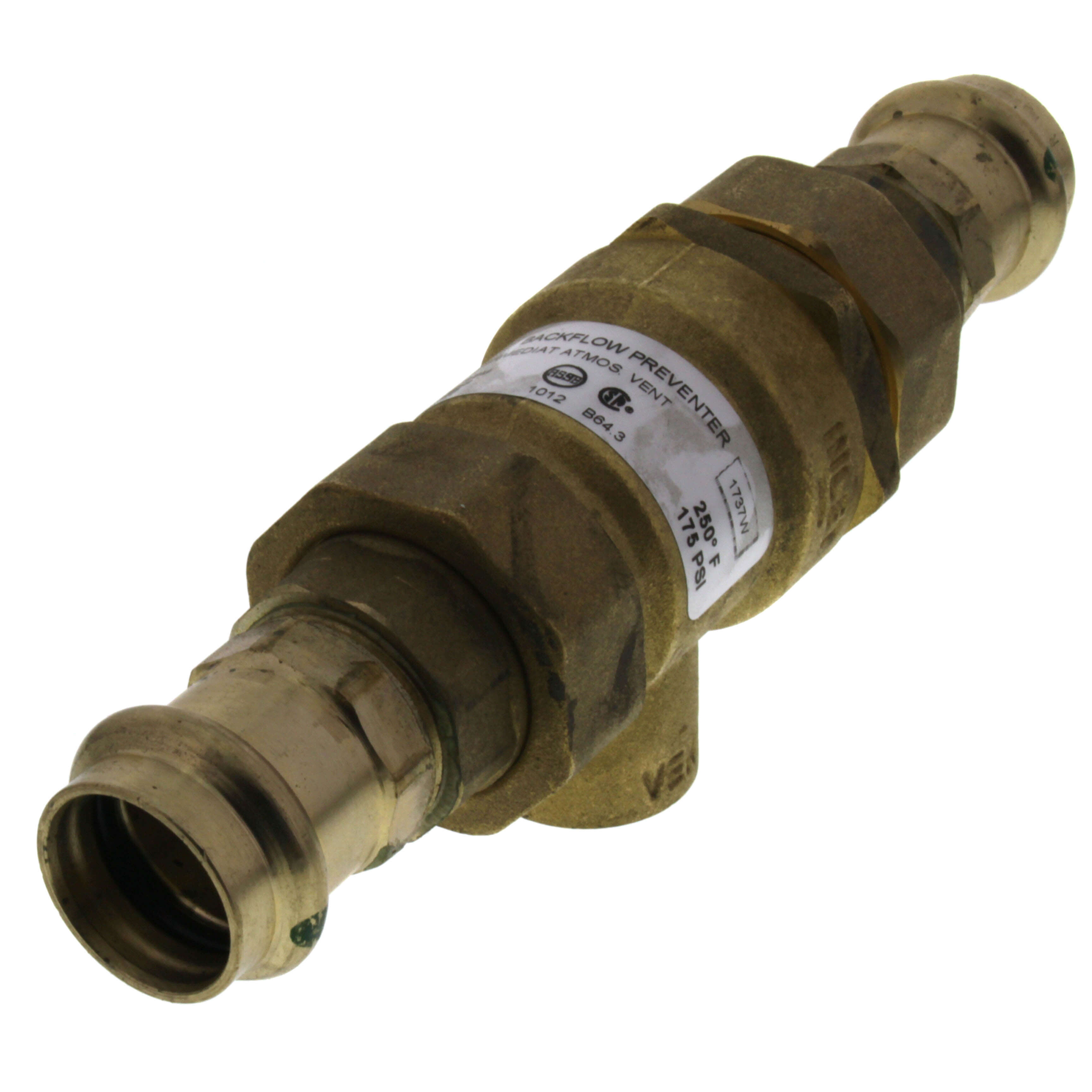

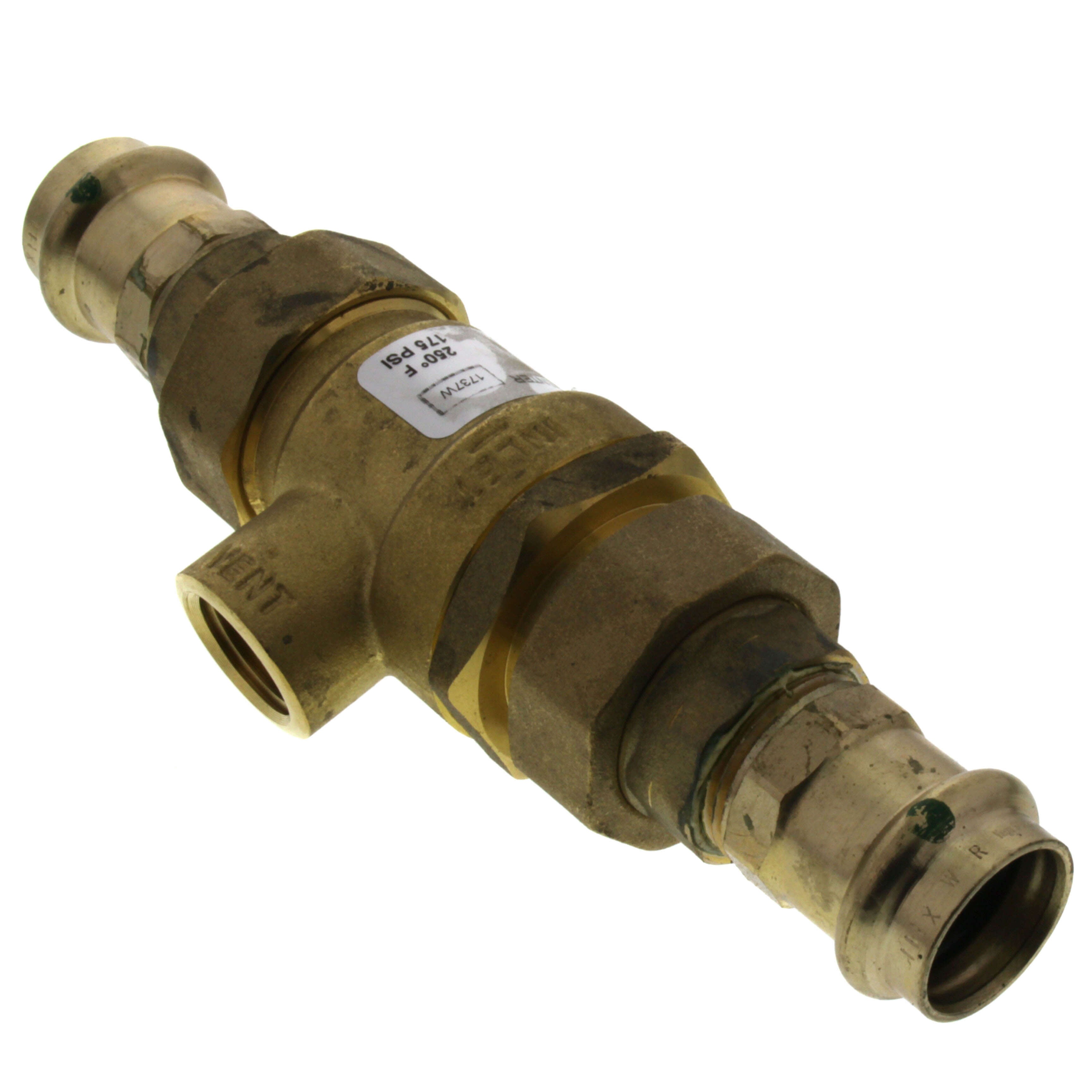

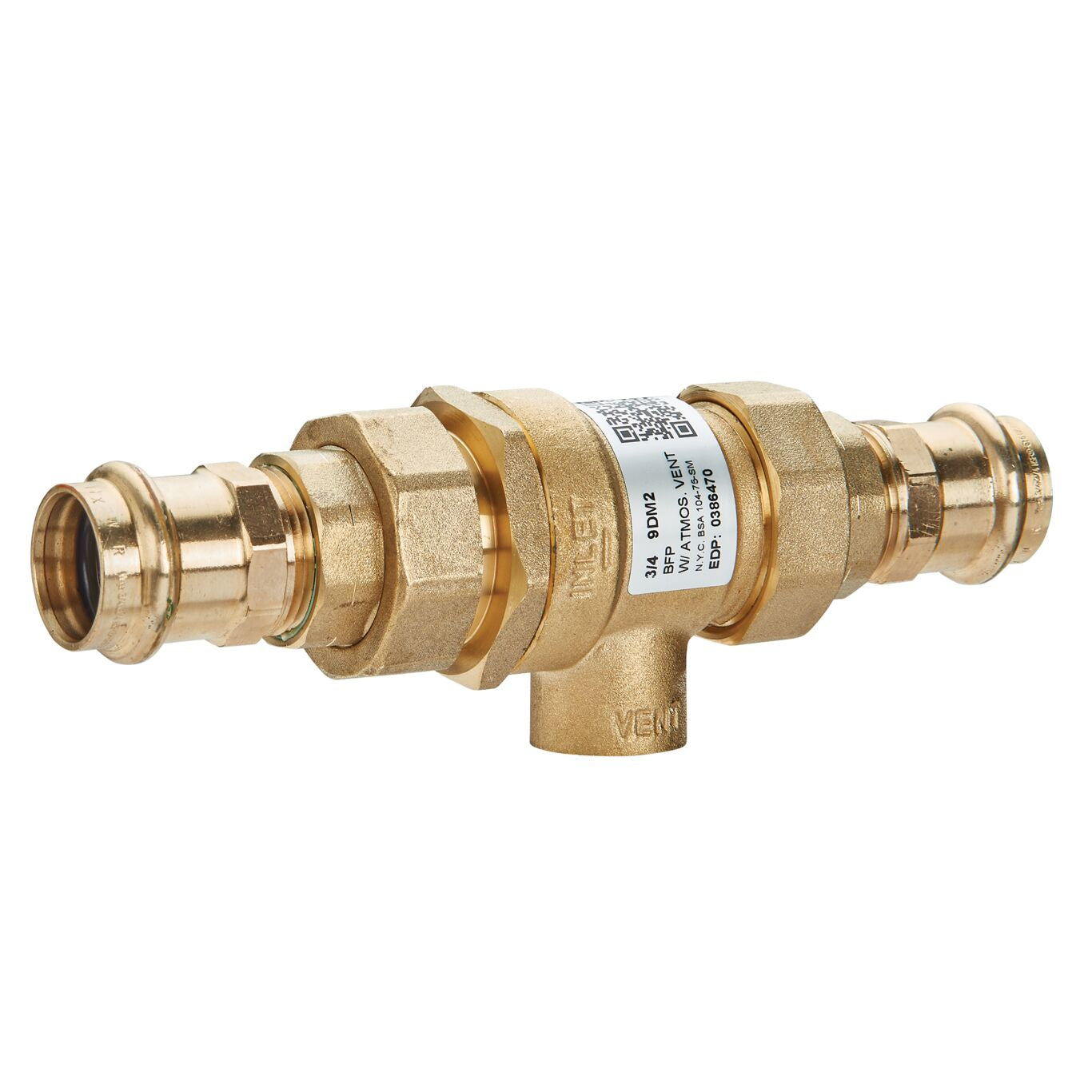

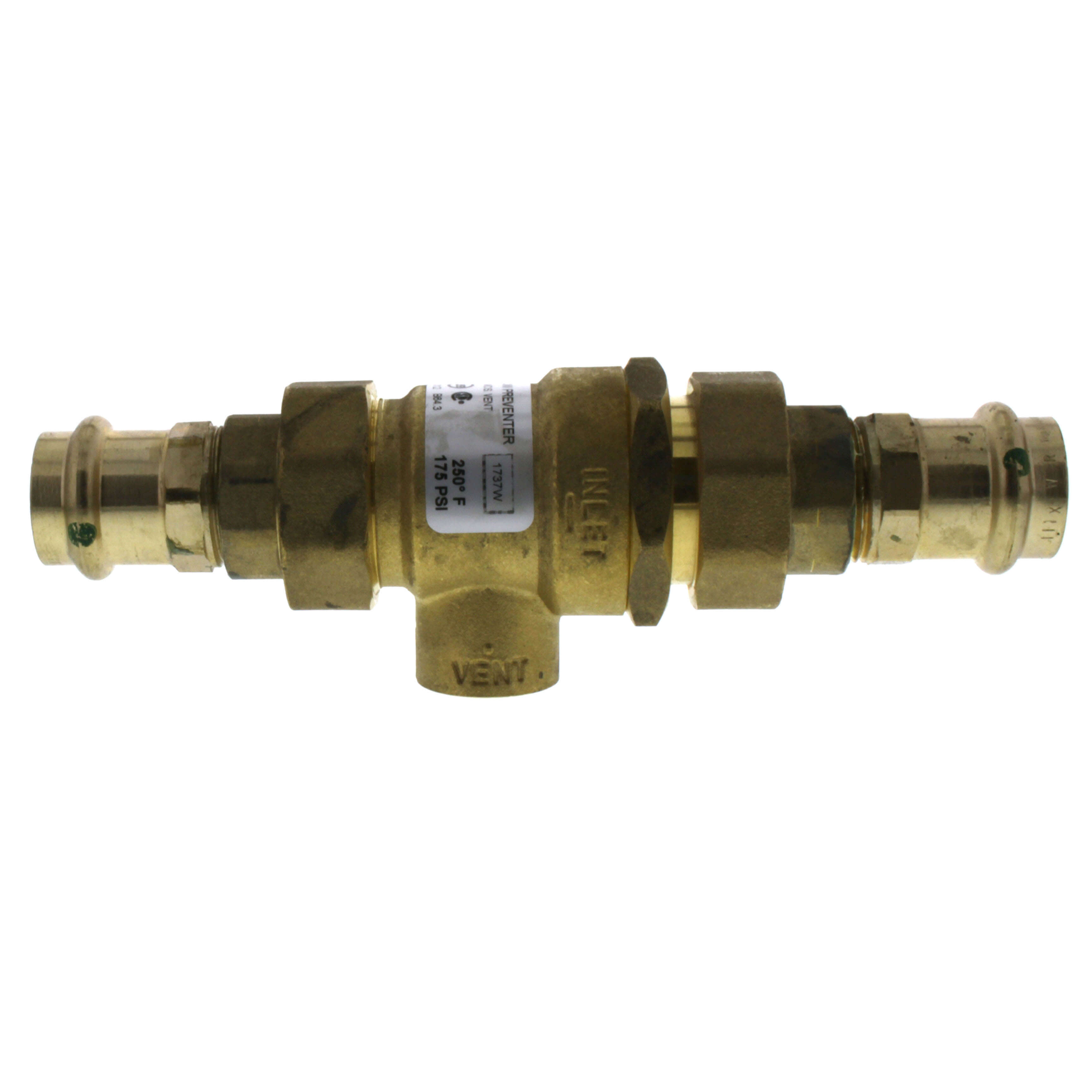

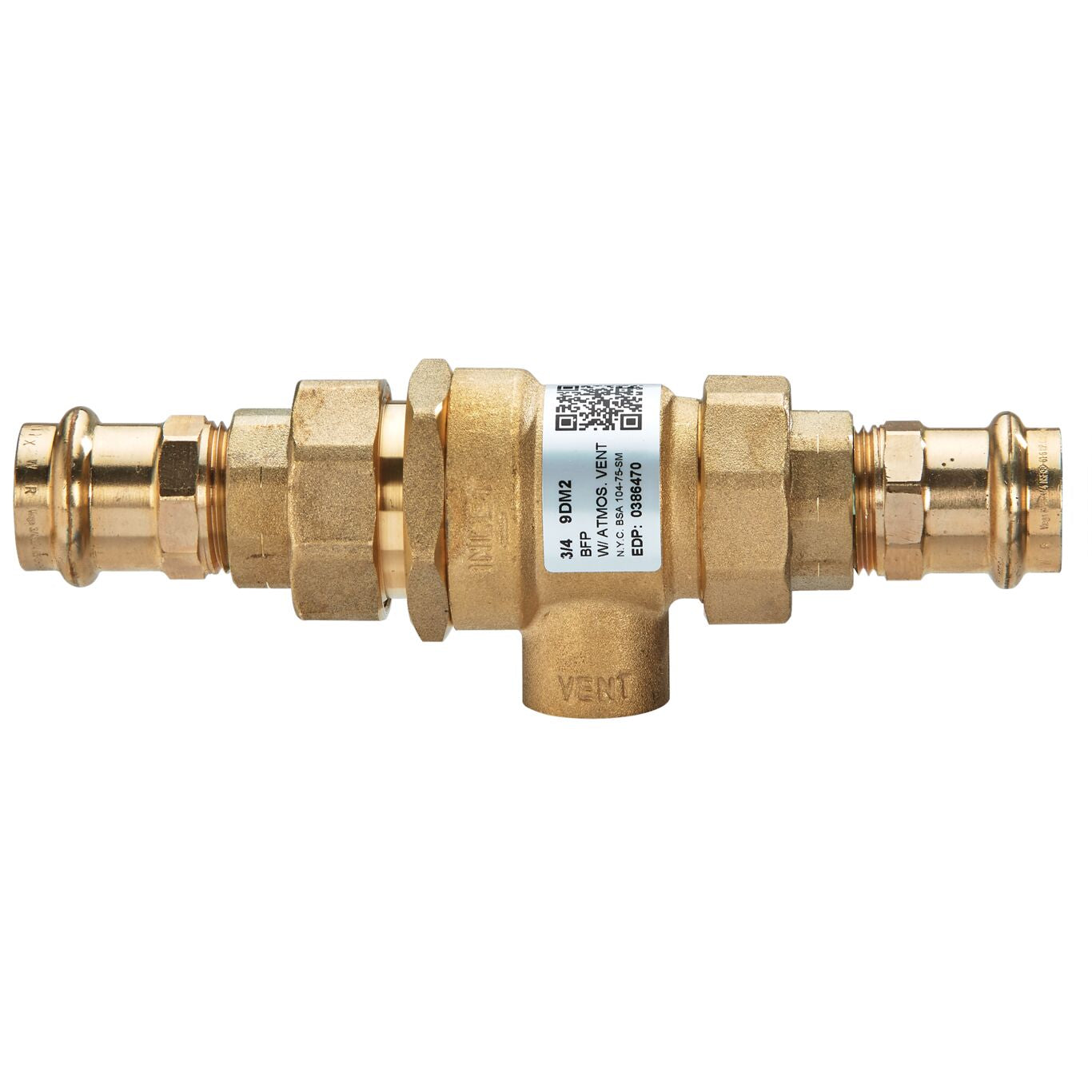

The WATTS 0386470 is a 3/4 inch dual check valve backflow preventer with an intermediate atmospheric vent. This valve prevents reverse flow of hot or cold polluted water into potable water supplies, specifically for non-potable applications. Designed for continuous pressure, non-health hazard uses in smaller supply lines, it features a bronze body, stainless steel internal parts, an integral strainer, and two durable rubber check valves. This product does not comply with low-lead standards for human consumption.
- Bronze body with stainless steel internal parts and integral strainer
- Designed for continuous pressure, non-health hazard applications in smaller supply lines
- Features Viega ProPress connection adapters and supports horizontal or vertical installation
Product Highlights
Prevents backflow in non-potable water systems with durable bronze construction and versatile installation options.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 0386470
Technical Specifications
-
MPN: 0386470
-
Product Type: Dual Check Valve
-
Manufacturer: Watts
-
Brand: Watts
-
Model: 9DM2 (W/PRESS) 3/4
-
Package Quantity: 1
-
Backflow Preventer Type: Dual Check with Atmospheric Vent
-
Bypass: No
-
Body Material: Brass
-
Test Status: Non Testable
-
Connection Size: 3/4"
-
Connection Type: Press x Press
-
Replacement MPN: 0886010
-
Application: Laboratory Equipment, Processing Tank, Sterilizer, Dairy Equipment, Boiler Feed Line
-
Max Temperature: 250°F
-
Max Working Pressure (PSI): 175
-
Body Finish: Bronze
-
Body Pattern: Inline
-
Cap And Tether: No
-
Disc Material: Rubber
-
Elbow Fitting: No
-
Hazard Protection Level: Non Health Hazard
-
Hot And Harsh Water: Yes
-
Hydrant Connection: No
-
Inlet Shutoff Valve Type: No Shutoff Valve
-
Lead Free: NO
-
Max Working Pressure (BAR): 12.10
-
Min Temperature (Celsius): 0.50
-
Min Temperature (Fahrenheit): 33
-
Outlet Shutoff Valve Type: No Shutoff Valve
-
Polymer Coating: No
-
Pressure Operation: Continuous
-
Protection Type: Backpressure and Backsiphonage
-
Seat Material: Brass
-
Series: 9D
-
Strainer: Yes
-
Applicable Standard: CSA B64, ASSE 1012
-
Installation Type: Vertical/Horizontal
-
Minimum Required Pressure (PSI): 25
-
Minimum Required Pressure (BAR): 1.7
-
Internal Parts Material: Stainless Steel
