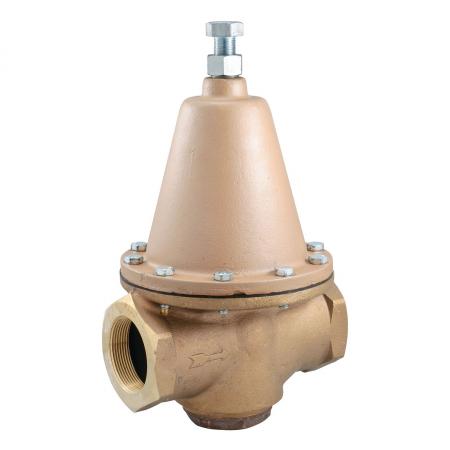

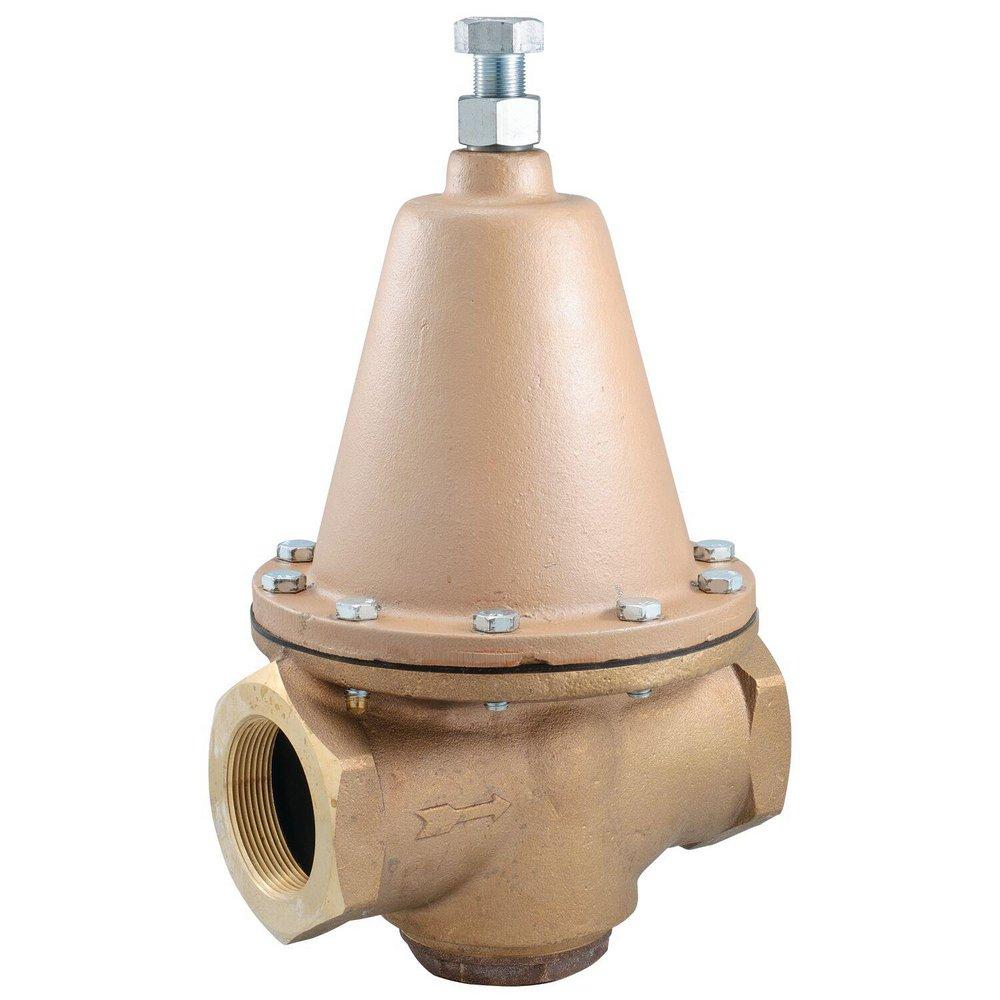

Watts 0298615 3 in. Water Pressure Reducing Valve

Product Description

The Watts pressure reducing valve, MPN 0298615, is designed to regulate water pressure in plumbing systems. It is essential for commercial and residential applications, ensuring that the water pressure remains at a safe level while protecting plumbing components.

• Lead-free brass body construction
• Adjustable pressure settings from twenty-five to seventy-five psi
• Enlarged diaphragm for effective pressure control

Product Highlights

This valve is ideal for installations in residential, commercial, and industrial settings. It features a lead-free brass body, an NPT threaded design, and a bypass for thermal expansion pressure control. The adjustable settings make it versatile for various applications.

Product Information

Standard Information

• Body Material: Cast Copper Silicon Alloy
• Inlet/Outlet Type: FNPT

Technical Specifications

• Pressure Range: 25 to 75 psi
• Nominal Size: 3 in
• Length: 10-1/2 in
• Temperature Rating: 33 to 160 deg F
• Series: LF223
• Sealed Spring Cage
• Max Working Pressure: 300 psi
