Watts 0204152 Thermostatic Mixing Valve 3/8 Inch Compression 150 PSI 0.25 GPM

Product Description

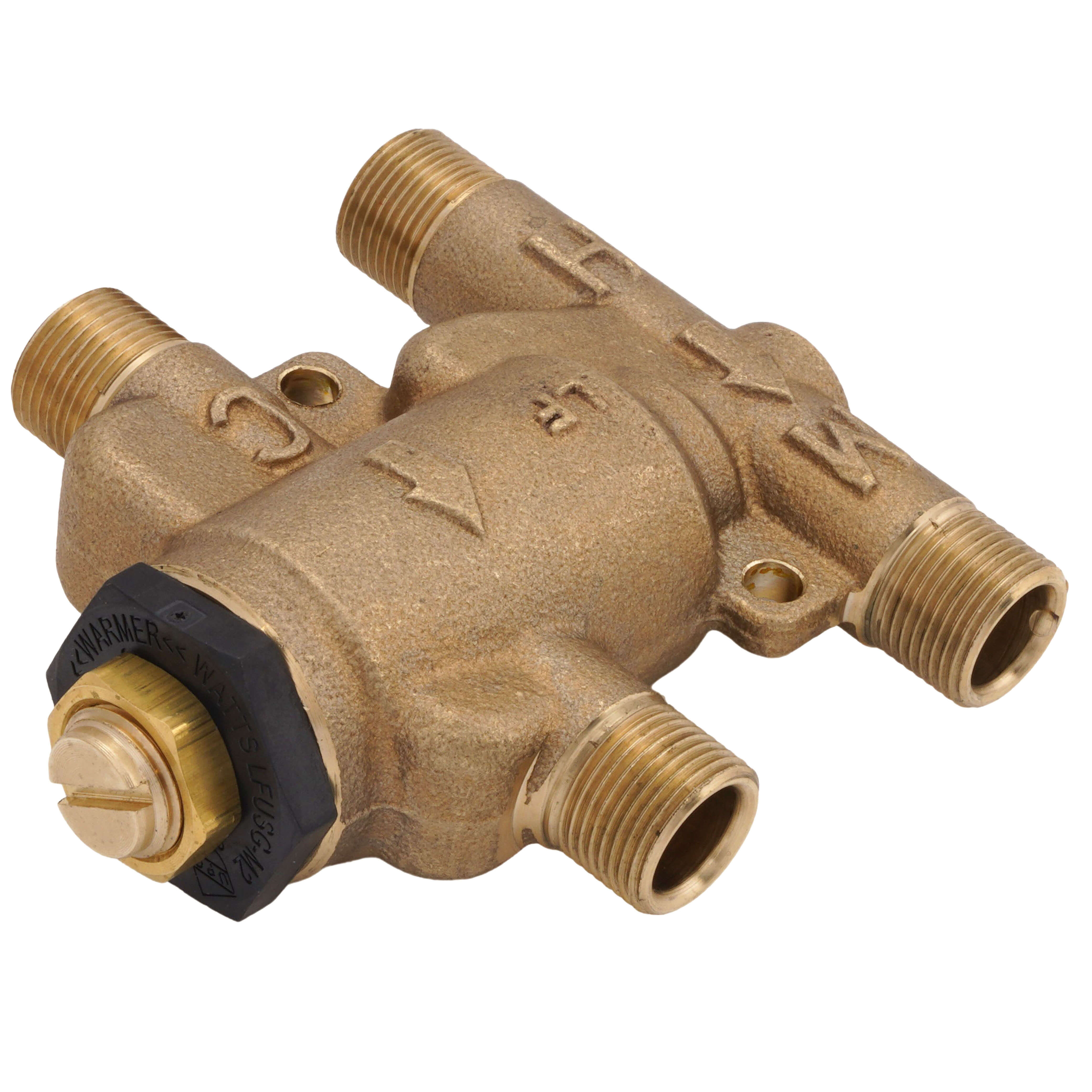

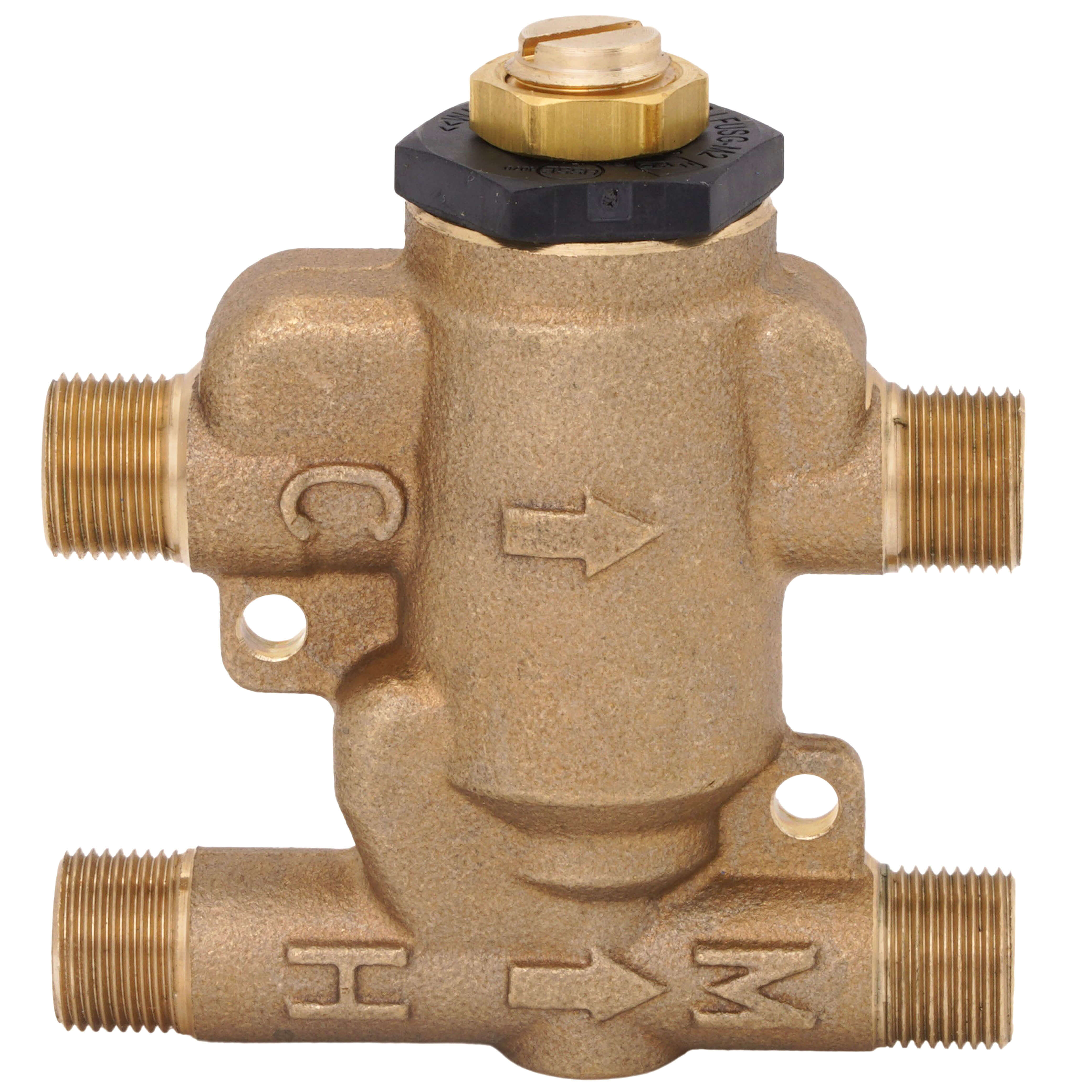

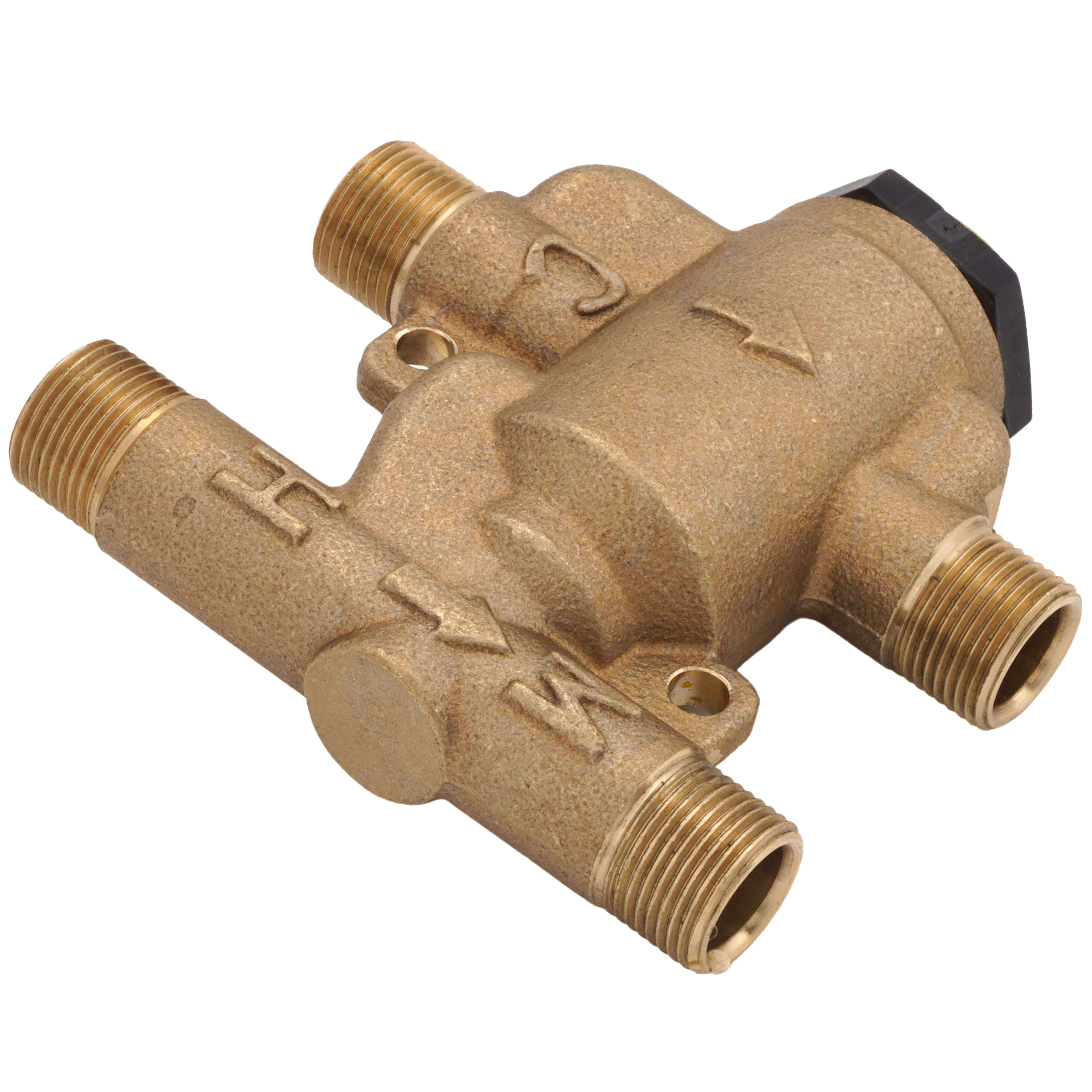

The WATTS 0204152 Under Sink Guardian Thermostatic Mixing Valve mixes hot and cold water to minimize scalding risks in commercial and residential under-sink applications. It features a lead-free brass body with 3/8 in. compression connections, check valves, and a tamper-resistant locking nut. The valve includes an integral strainer with 40 mesh stainless steel screens to filter debris.

• Lead free brass body construction
• 80 to 120 deg F temperature
• 150 psi maximum pressure

Product Highlights

This thermostatic mixing valve provides superior flow rate, accurate temperature control, and low pressure drop for under-counter installations.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0204152
• Country of Origin: Domestic

Technical Specifications

• Media: Hot/Cold Water
• Series: LFUSG-B
• Manufacturer: Watts Water Technologies
• Nominal Size: 3/8 in
• Body Material: Brass
• Flow Capacity: 0.25 gpm
• Pressure Rating: 150 psi
• Softgoods Material: Buna-N Rubber Disc, O-Ring
• Temperature Rating: 80 to 120 deg F
• Valve Application: Tempered Domestic Potable Water
• Valve Connection: Compression
• Inlet Connection Size: 3/8"
• Outlet Connection Size: 3/8 IN
• Minimum Flow GPM: 0.25 GPM
• Minimum Outlet Temperature: 80
• Maximum Outlet Temperature: 120
• Max Pressure: 150 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: No
• ASSE Classification: 1070
• Replaces: 0204143
• Alias: LFUSG-B-M2, LFUSG-B-M1
• UPC: 098268520774
• Model: LFUSG-B-M3
• Size: 3/8"
• Application: Point of Use
• Max Temp (F): 120 F
• Min Temp (F): 80 F
• Connection Type: Compression x Compression
• Connection Method: Compression
• Max Pressure (PSI): 150
• Min Pressure (PSI): 30
• Temperature Range (F): 80 F - 120 F
• Type: Thermostatic Mixing Valve
• Material: Lead Free Brass
• Connection_Size: 3/8"
• Connection_Type: Compression Joint
• Description: 3/8 In Lead Free Thermostatic Mixing Valve, Adjustable 80-120 F, Low Q Value, Model Lfusg-b-m3
• PDW MFR CAT: 0204152
• Pittman #: 228704
• Body Finish: Rough Bronze
• Capacity: 2.25 GPM
• Cold Inlet Temperature Range: 39 to 80 degree F
• Cold Water Bypass: No
• Cold Water Inlet Connection Size: 3/8 IN
• Cold Water Inlet Connection Type: Compression Joint
• Cold Water Inlet Thread Type: Does Not Apply To Product
• EAN: 098268520774
• Factory Set Temperature-Fahrenheit: 105
• Flow Rate: 0.25 to 2.25 GPM
• Hot Inlet Temperature Range: 120 to 180 degree F
• Hot Water Inlet Connection Size: 3/8 IN
• Hot Water Inlet Connection Type: Compression Joint
• Hot Water Inlet Thread Type: Does Not Apply To Product
• Lead Free: YES
• Maximum Pressure Differential: 20 Percent
• Maximum Working Pressure-PSI: 150
• Minimum Differential Temperature-Fahrenheit: 5
• Minimum Static Pressure-PSI: 30
• Outlet Connection Type: Compression Joint
• Outlet Temperature Accuracy: Plus/minus 3 degree F
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0204152
• Temperature Adjustment Range: 80 to 120 degree F
• Domestic/Import: Domestic
• End Style: Compression
• Trim Material: Stainless Steel
