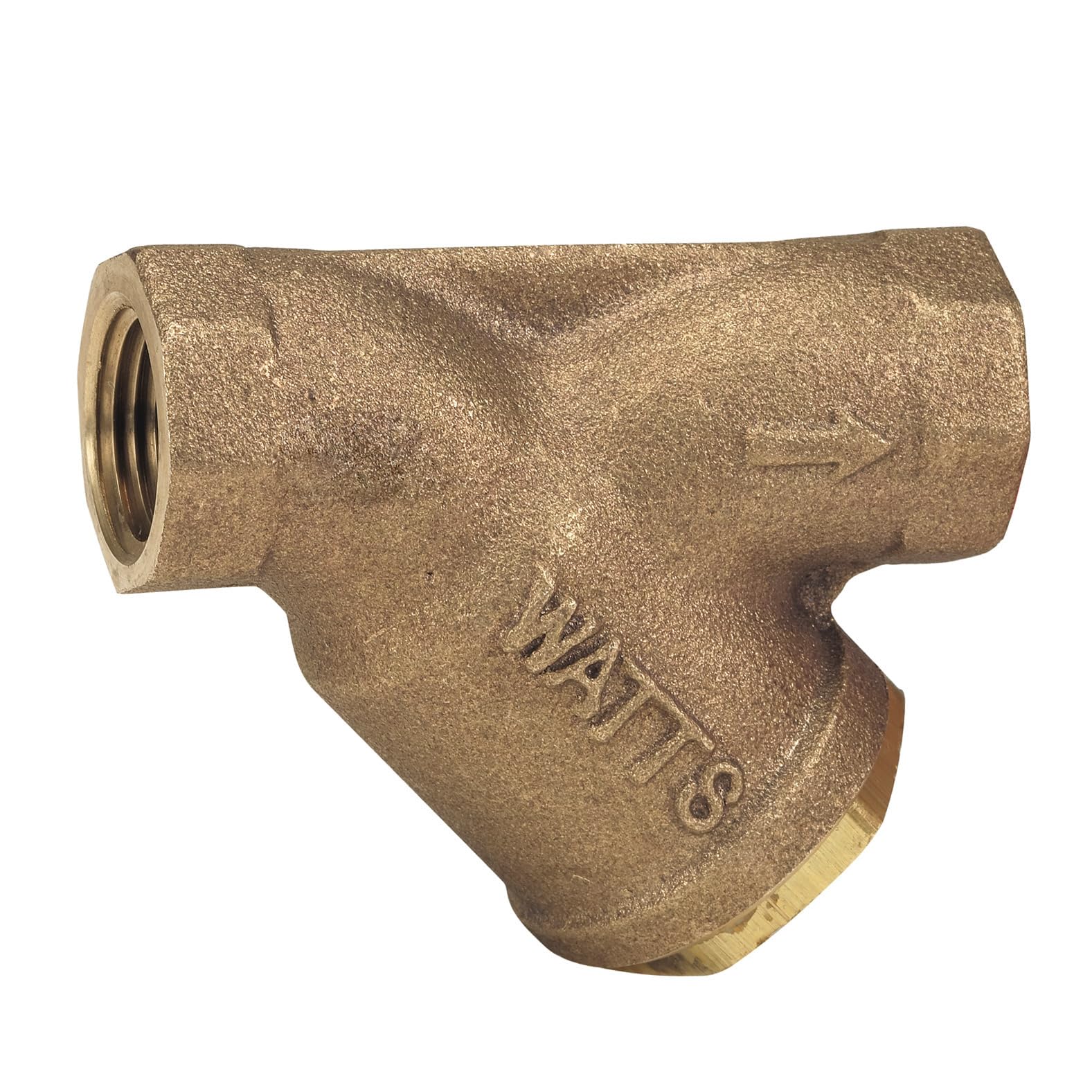

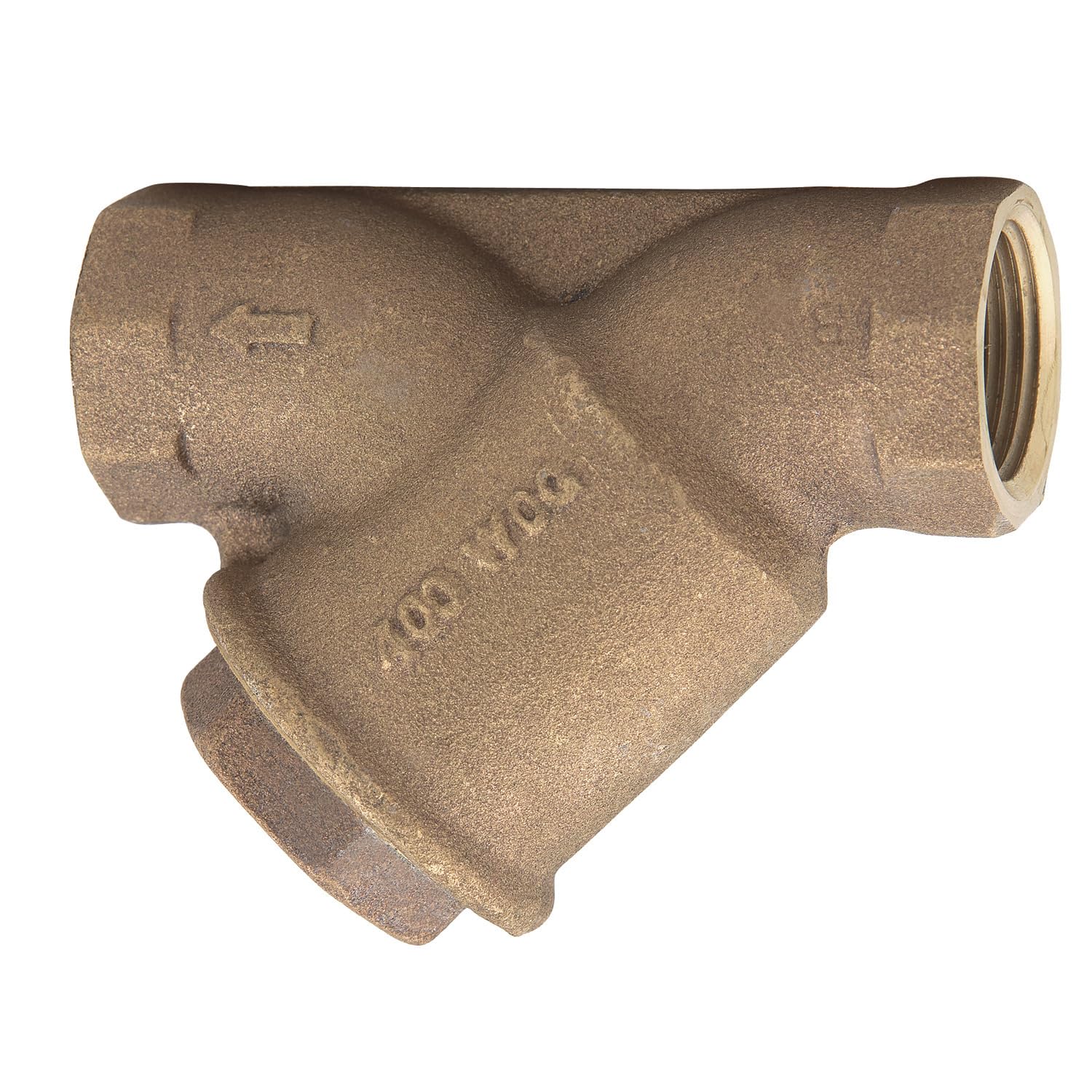

Watts 0123076 lf777m1-20 lead free wye pattern strainer 3/8 inch

Product Description

The WATTS 0123076 LF777M1-20 is a lead-free wye pattern strainer designed to protect system components from dirt, rust, and other damaging debris. Constructed from lead-free cast copper silicon alloy, this 3/8 inch strainer features threaded end connections and a 20 mesh stainless steel screen. It is pressure rated to 400 psi WOG at 210 F and 125 psi WSP at 353 F, ensuring durability in various water, oil, and gas systems.

• Wye pattern strainer protects system components from dirt, rust, and debris.
• Includes a 20-mesh stainless steel screen filter for effective particle removal.
• Features 3/8 inch NPT female threaded inlet and FPT female threaded outlet connections.

Product Highlights

Lead-free wye pattern strainer with 20 mesh screen and solid retainer cap for system protection.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0123076

Technical Specifications

• Product Type: Valve
• Model: LF777M1-20
• Size: 3/8 Inch
• End Connections: Threaded
• Screen Mesh: 20 Mesh
• Retainer Cap Type: Solid with Gasket
• Blowdown Outlet Connection: Female Connection
• Inlet Connection: 3/8" NPT Female Threaded
• Outlet Connection: 3/8" FPT Female Threaded
• Pressure Rating WOG: 400 psi (28 bar) at 210 F (99 C)
• Pressure Rating WSP: 125 psi (8.6 bar) at 353 F (178 C)
• Body Material: Lead-free cast copper silicon alloy
• Gasket Material: Garlock
• Inlet Connection Size Metric: 10 MM
• Lead Free: Yes
• Retainer Cover Material: Lead Free Copper Silicon Alloy
• Screen Material: Stainless Steel
• Series: LF777
• Strainer Type: Wye
• Cap Seal Material: EPDM O-Ring
