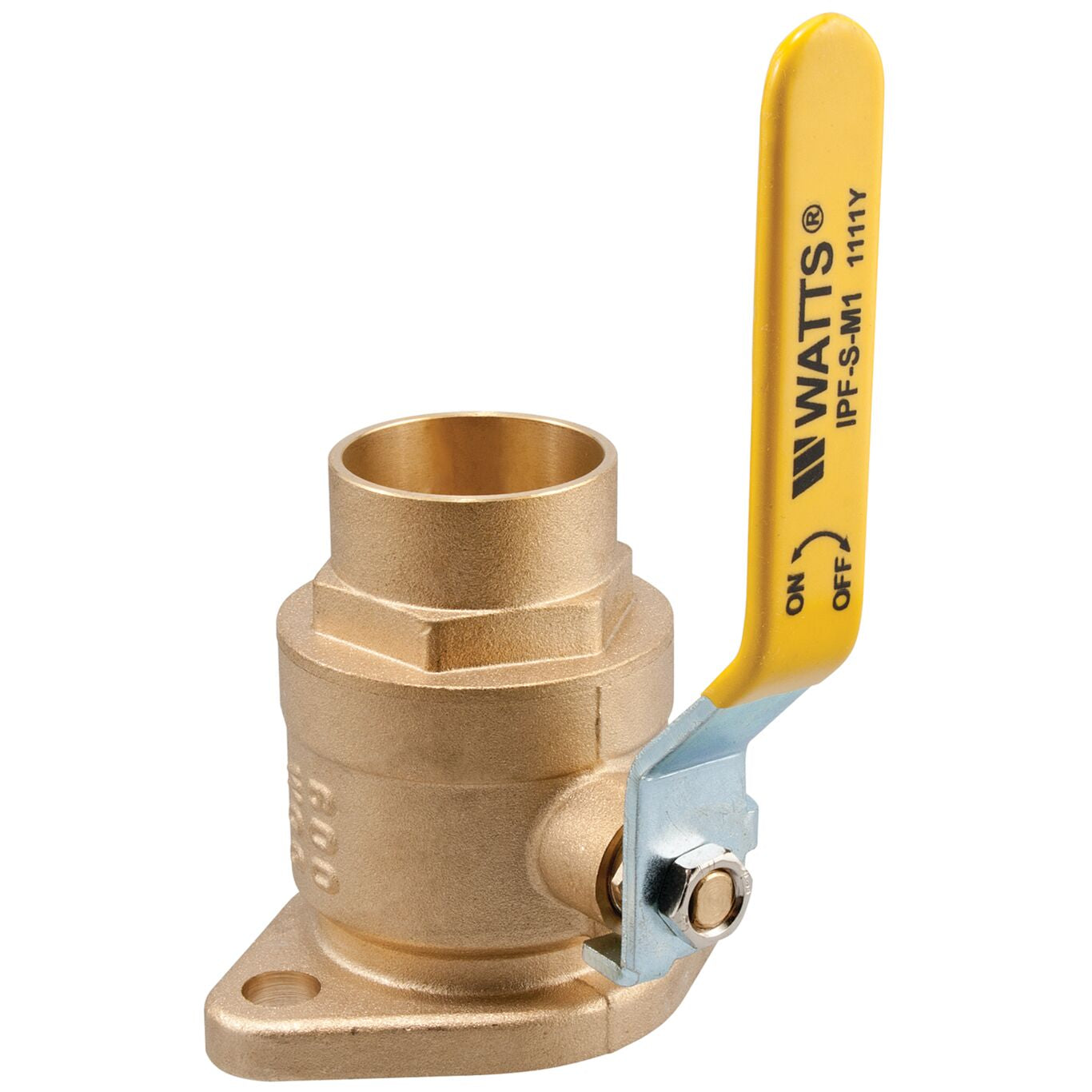

Watts 0068096 Series IPF 1 in. Isolation Pump Flanged

Product Description

The WATTS 0068096 Series IPF 1 in. Isolation Pump Flange is designed to isolate circulator pumps, which facilitates pump replacement or repairs. It features a brass body and flange with a bottom-loaded blowout-proof stem and a Buna-N stem O-Ring seal. The flange also includes virgin PTFE seats.

• Brass body and flange
• Buna-N stem O-Ring seal
• Solder end connection
• Virgin PTFE seats

Product Highlights

The WATTS Series IPF Isolation Pump Flanges are suitable for residential and commercial applications. They feature adjustable virgin PTFE packing and an optional T-handle.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0068096
• Country of Origin: CHINA

Technical Specifications

• Actuation: No
• Assembled Dry: No
• Balance Stop Plate: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Brass
• Brand: Watts
• Buy American Act Compliant: NO
• Class Rating: Does Not Apply To Product
• Control Type: Lever Handle
• CV Rating: Does Not Apply To Product
• EAN: 098268344387
• Electrical Rating: Does Not Apply To Product
• Inlet Connection Size: 1 IN
• Inlet Connection Size-Metric: 25 MM
• Inlet Connection Type: Socket
• Inlet Thread Type: Does Not Apply To Product
• Lead Free: Not In Scope
• Maximum Temperature-Fahrenheit: 406
• Minimum Temperature - Celsius: -40.00
• Minimum Temperature-Fahrenheit: -40
• Operating Torque: Does Not Apply To Product
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Flanged Joint
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0068096
• Port Type: Does Not Apply To Product
• Seat Material: Virgin PTFE
• Series: IPF
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Does Not Apply To Product
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Maximum Pressure: 600 psi
• Pipe Size: 1 in
• Temperature Rating: 406 deg F
• Manufacturer: Watts Water Technologies
• Manufacturer #: 0068096
• Maximum Temperature: 406°F (208°C) at 100psi (6.9 bar)
• Maximum Working Pressure: 600psi (41.4 bar) WOG
• Seat/Stem Packing Material: Virgin PTFE
