Watts 0067790 pipf-t 3/4 Isolation Pump Flange

Product Description

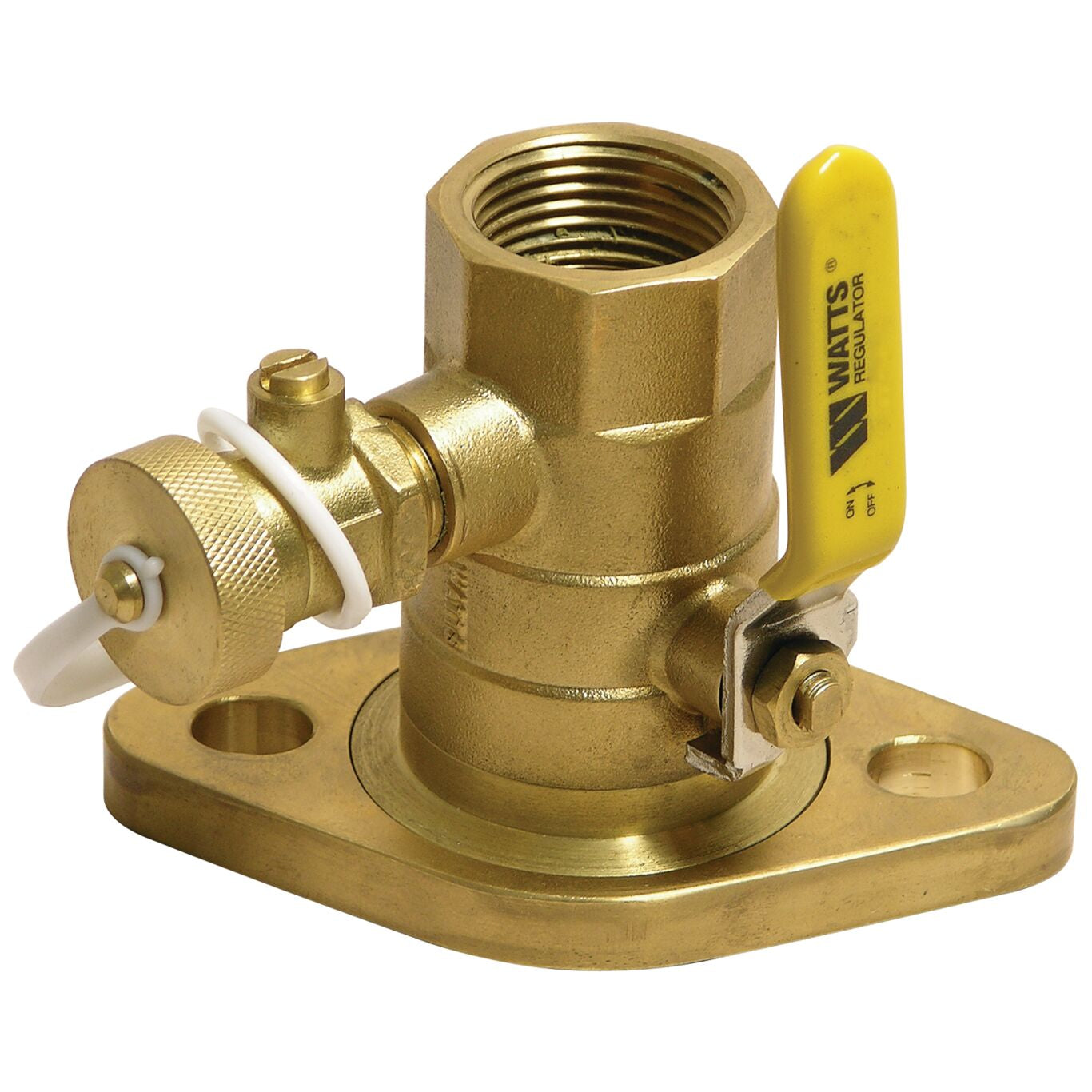

The WATTS 0067790 PIPF-T 3/4 isolation pump flange is designed to facilitate circulator pump replacement or repairs. It features a swivel flange that allows the purge port to be positioned for optimal purging convenience. Constructed with a brass body and flange, it also features a bottom-loaded blowout-proof stem and threaded NPT inlet and outlet.

• Brass body
• Double O-ring
• NPT threaded end connection

Product Highlights

Facilitates circulator pump replacement with integral purge port and swivel flange for optimal convenience.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0067790

Technical Specifications

• Body Material: Brass
• Brand: Watts
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 406
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Part Number: 0067790
• Port Type: Purge
• Series: PIPF
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• WOG Rating: 400 PSI
• Maximum Pressure: 600 psi
• Pipe Size: 3/4 in
• Material: Brass
• Inlet/Outlet Connection Size: 3/4 inch
• Maximum Temperature: 406°F (208°C) @ 100psi (6.9 bar)
• Maximum Working Pressure: 400psi (28 bar) WOG
• Max. Temp.: 406°F
• Mfr. Series: PIPF Series
• Outlet Size: 3/4"
• Body and Flange Material: Brass
• Stem: Bottom loaded blowout proof stem
• Stem Seal Technology: Advanced double O-ring
