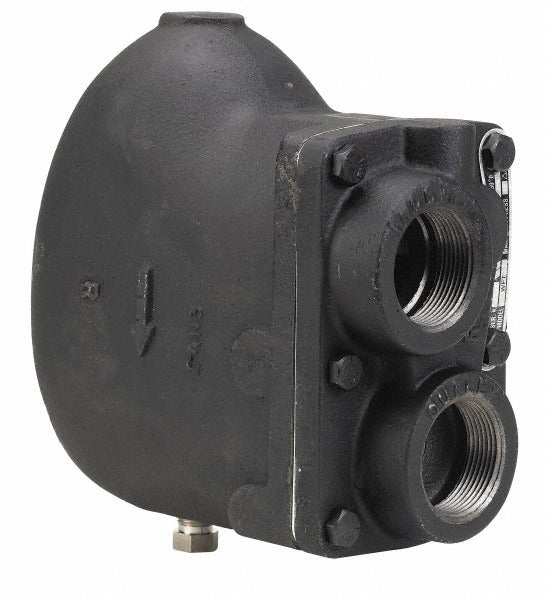

Watts 0037109 Float Thermostatic Steam Trap 4 Port

Product Description

The WATTS 0037109 is a float and thermostatic steam trap designed for use in steam heating and process piping systems. It features a cast iron body with four ports and a 3/4 inch pipe connection. Float and thermostatic traps continuously discharge condensate as it forms while venting air and non-condensable gases through the thermostatic air vent element. The unit is rated for a maximum working pressure of 30 psi. At 12.87 pounds, it is a robust, full-body trap suited for commercial and industrial steam system installations performed by licensed pipefitters or plumbing professionals.

This steam trap is appropriate for residential and commercial hydronic steam heating systems as well as light industrial process steam applications. The four-port configuration allows flexible installation in supply and return piping arrangements. It is typically installed on steam radiator runouts, unit heaters, or process equipment where reliable condensate drainage and air venting are required. Installation should follow the system piping layout as specified by the system designer or equipment manufacturer.

Key Features

• Float and thermostatic design continuously drains condensate and vents air automatically
• Cast iron body construction for durability in steam service
• Four-port configuration supports flexible piping connections
• 3/4 inch pipe connection size suits common steam distribution piping
• Rated to 30 psi maximum working pressure
• Maximum operating temperature of 673 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation steam trap for float and thermostatic trap applications in 3/4 inch steam piping systems rated up to 30 psi.

Installation Notes

Steam traps should be installed by a licensed pipefitter or plumbing professional familiar with steam system codes including applicable sections of the International Plumbing Code. Shut down and depressurize the steam system completely before removing or installing any trap. Verify pipe connection size and system working pressure do not exceed the trap rating before placing in service. Proper trap orientation per the manufacturer installation sheet is required for correct float and thermostatic element operation.
