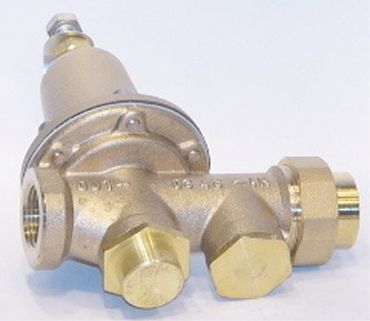

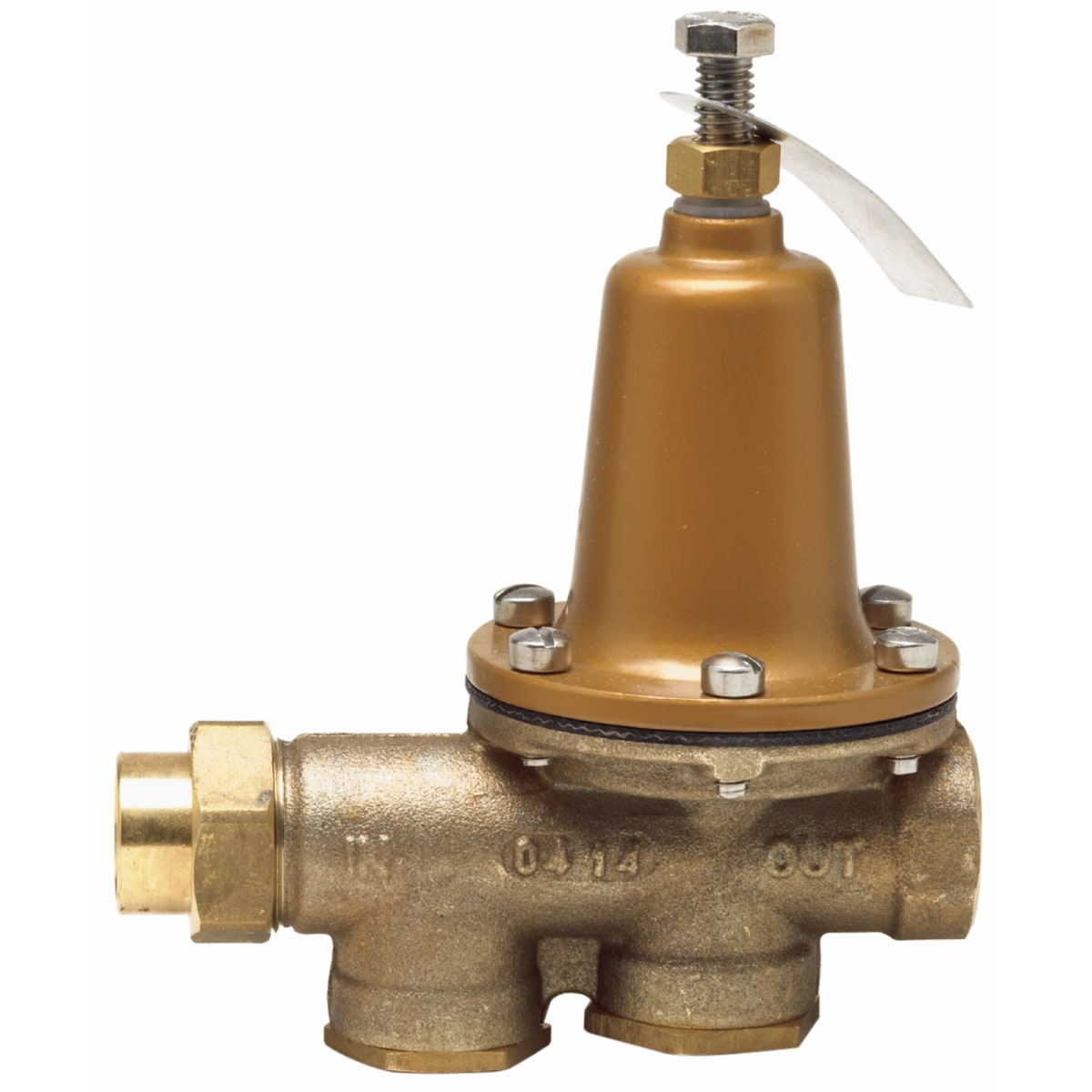

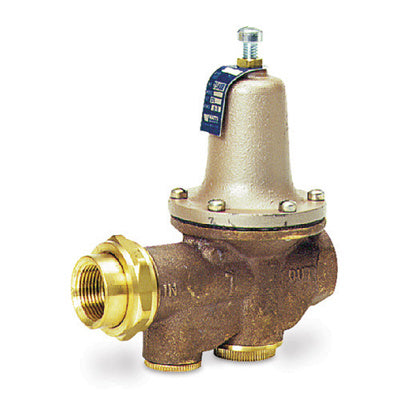

Watts 0009449 Series LF25AUB-Z3 2 in. 75-125 psi Pressure Reducing Valve

Product Description

The WATTS 0009449 Series LF25AUB-Z3 water pressure reducing valve is designed to reduce incoming water pressure, protecting plumbing systems and reducing water consumption. Suitable for supply pressures up to 300 psi, it can be adjusted from 25-75 psi. Features lead-free construction and a bypass to manage thermal expansion pressure. All parts are easily serviceable without removing the valve from the line.

• Bypass feature controls thermal expansion pressure
• High temperature resistant reinforced diaphragm for hot water
• Industry-trusted design with proven track record for longevity, reliability and flow performance

Product Highlights

Lead-free valve with adjustable pressure, serviceable in-line, and equipped with a bypass feature for thermal expansion control.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0009449

Technical Specifications

• Connection Size: 2 in
• Connection Type: Female Union x FNPT
• Disc Material: EPDM
• Item Name: Water Pressure Reducing Valve
• Material: Brass
• Pressure Rating: 75 - 125 psi
• Seat Material: Replaceable Stainless Steel
• Series: LF25AUB-Z3
• Temperature Rating: 33 - 160 deg F
• Trim Material: Stainless Steel
• Type: Standard
• Body Material: Copper Silicon Alloy
• Inlet Connection Size: 2 IN
• Inlet Connection Type: Union Joint
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Operating Temperature-Fahrenheit: 180
• Maximum Working Pressure-PSI: 300
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0009449
• Strainer: Yes
• Strainer Material: Stainless Steel
• Thermal Expansion Bypass: Yes
• Nominal Size: 2 in
• Media: Water
• End Style: FNPT Union x FNPT
