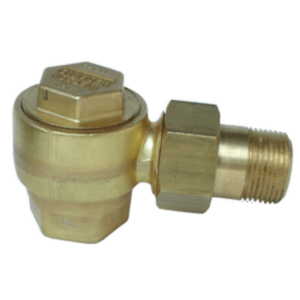

WATSON MCDANIEL TA125-13-N Steam Trap Power 3/4 inch

Product Description

The WATSON MCDANIEL TA125-13-N steam trap is suitable for use in HVAC applications, especially in two-pipe steam heating systems. This steam trap efficiently removes condensate and air. Its compact design is ideal for air vents in heat exchangers and OEM equipment.

• Used in HVAC environments
• Quick-disconnect right angle connection
• Strong air-handling capabilities

Product Highlights

The steam trap's stainless steel thermal element is built to resist water hammer, enhancing reliability and performance.

Product Information

Standard Information

• Size: 3/4 inch
• Connection: NPT

Technical Specifications

• Max Operating Pressure: 125 psig
• Max Allowable Pressure: 125 psig up to 450°F
• Max Allowable Temperature: 450°F at 125 psig
• Spring: 304 stainless steel
• Seat: Stainless steel, AISI 303
• Body: Forged brass, CA 377
• Cover: Forged brass, CA 377
• Element: Welded stainless steel, AISI 302
• Gasket: Brass ASTM B-21
• Union Nipple: Brass ASTM B-16
• Union Nut: Brass ASTM B-16
