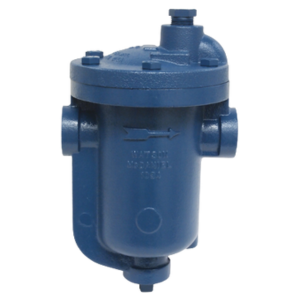

WATSON MCDANIEL IB1032-14-N-015 Inverted Bucket Steam Trap 1 Inch

Product Description

The Watson McDaniel IB1032-14-N-015 is an inverted bucket steam trap designed for drip applications. It effectively removes condensate from steam mains and supply lines. The top-mounted discharge orifice minimizes issues from dirt and debris, ensuring reliable operation. This steam trap is built to withstand a maximum operating pressure of fifteen psig with a one-quarter inch orifice size.

• Suitable for drip applications in steam systems.
• Features a top-mounted discharge orifice for enhanced resistance to debris.
• Constructed with stainless steel internals for durability.

Product Highlights

The IB series steam traps are essential for efficiently removing condensate in steam systems where air discharge is not critical.

Product Information

Standard Information

• Size: 1 inch
• Connection: NPT

Technical Specifications

• Orifice Size: 1/4 inch
• Max. Operating Pressure (psig): 15
• Max. Allowable Pressure (psig): 250 PSIG up to 450 °F
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
