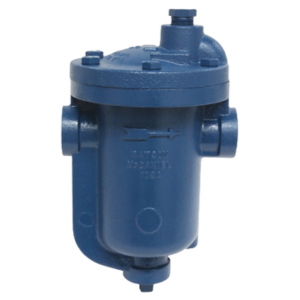

WATSON MCDANIEL IB1032-13-N-015 Inverted Bucket Steam Trap 15 PSIG (3/4) Replacement MPN

Product Description

The WATSON MCDANIEL IB1032-13-N-015 is an inverted bucket steam trap ideal for drip applications that help remove condensate from steam mains and supply lines. The unique design includes a top-mounted discharge orifice that reduces the risk of blockages from dirt and debris. This steam trap serves essential functions for various process applications like unit heaters and laundry equipment.

• Suitable for drip applications in steam mains and supply lines.
• Top-mounted discharge orifice minimizes failure risk due to debris.
• Made with a cast iron body and stainless steel internals.

Product Highlights

The WATSON MCDANIEL inverted bucket steam trap is designed to efficiently manage condensate removal in steam systems, with robust construction that ensures reliable operation.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• MPN: IB1032-13-N-015

Technical Specifications

• Size: 3/4 inches
• Connection: NPT
• Orifice Size: 1/4 inches
• Max. Operating Pressure: 15 psig
• Max. Allowable Pressure: 250 psig up to 450 degrees Fahrenheit
• Body: Cast Iron
• Cover: Cast Iron
• Valve: 420 SS
• Seat: 420 SS
• Strainer: 316 SS
• Bucket: 304 SS
• Internals: Stainless Steel
