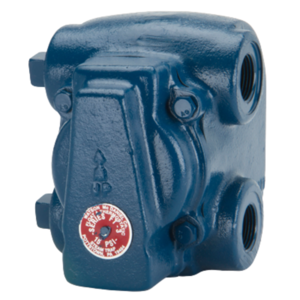

WATSON MCDANIEL FT77L-075-16-N Steam Trap 1-1/2 In

Product Description

The WATSON MCDANIEL FT77L-075-16-N is a steam trap suitable for operating pressures up to seventy-five pounds per square inch gauge (PSIG). This float and thermostatic steam trap is typically used in lower pressure HVAC applications and light industrial processes, including unit heaters, water heaters, pressing machines, and heat exchangers. It features a dual inlet-outlet H-Pattern connection for flexible installation.

• H-pattern design allows for piping from either side.
• Excellent air handling capability for quick air discharge and steam entry during startup.
• Welded stainless steel thermostatic air vent resists water hammer shock.

Product Highlights

The FT Series steam traps offer superior air-handling capability, combined with a dual inlet-outlet H-Pattern connection for versatile installation options.

Product Information

Standard Information

• End Style: NPT
• Material: Cast Iron

Technical Specifications

• Nominal Size: 1-1/2 In
• Pressure Rating: 75 psi
• Series: FT
• Max. Operating Pressure (psig): 75
• Max. Allowable Pressure (psig): 75 PSIG up to 450°F
• Body: Cast Iron
• Cover: Cast Iron
• Seat: Stainless Steel
• Disc: Stainless Steel
• Thermostat: Stainless Steel
• Float: Stainless Steel
• Internals: Stainless Steel
