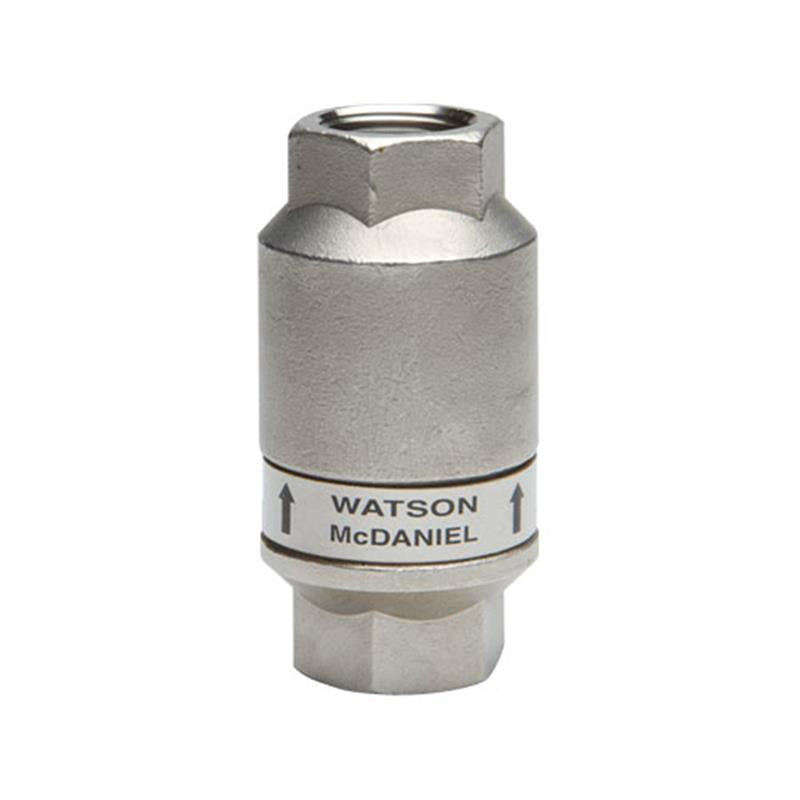

Watson Mcdaniel AV2003-13-N Thermostatic Air Vent (3/4 inches NPT, 5/16 inches Orifice)

Product Description

The Watson McDaniel AV2003-13-N is a thermostatic air vent used to remove air and non-condensable gases from steam process equipment, vessels, and piping. It is constructed with a stainless steel body, features a 5/16 inch orifice on a 3/4 inch NPT connection, and is rated for saturated steam service up to 650 psig. The vent can be installed in any orientation and includes maximum allowable limits of 1032 psig at 100�F and 750�F at 800 psig.

• Thermostatic automatic vent for release of air and non-condensable gases in steam systems
• 3/4 inch NPT connection with 5/16 inch orifice; stainless steel body for steam applications
• Rated for saturated steam up to 650 psig; installable in any orientation; MAWP 1032 psig @ 100�F

Product Highlights

Thermostatic air vent for industrial steam systems; 3/4" NPT, 5/16" orifice; stainless steel construction; 650 psig operating rating.

Product Information

Standard Information

• Brand: WATSON MCDANIEL
• Manufacturer Part Number: AV2003-13-N
• Country of Origin: United States
