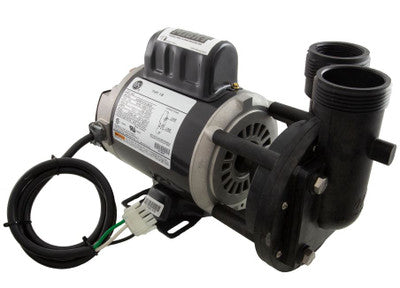

Waterway Plastics 3410030-0X86 Uni-Might Circulation Pump 1/8hp 115v 1-Spd 48Fr 50/60Hz

Product Description

The WATERWAY PLASTICS 3410030-0X86 Uni-Might Circulation Pump features 1/8 horsepower and operates at 115 volts. This 1-speed pump has a 48 frame and is designed for 50/60Hz. It is designed for continuous 24-hour operation and delivers 40 GPM, compatible with high flow 15"x2" heaters.

• Operates at 115 volts
• 1/8 horsepower
• Thru-Bolt style 48 frame motor
• 24-hour circulation

Product Highlights

The Waterway Uni-Might circulation pump is designed for continuous operation in spas and delivers efficient water flow. It features a robust 48-frame motor and is suitable for various spa configurations.

Product Information

Standard Information

• Brand: WATERWAY PLASTICS
• Manufacturer Part Number: 3410030-0X86
• Country of Origin: America

Technical Specifications

• Brand: Waterway Plastics
• MPN: 3410030-0X86
• Horsepower: 1/8hp
• Voltage: 115v
• Speed: 1-Speed
• Frame: 48Fr
• Frequency: 50/60Hz
• Phase: 1 Phase (1ph)
• Motor Style: Thru Bolt
• Manufacturer: Waterway
• Accessory Pump Type: Circulation
• Pump Model: Uni-Might
• Motor Voltage: 115v
• Suction Style: Top
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 1-1/2"
• Discharge Style: Top
• Discharge Connection Type: Female Pipe Thread (fpt), Male Buttress Thread (mbt)
• Discharge Pipe Size: 1-1/2"
• Motor Amperage/Wattage: 1.3A
• GPM: 40
• Amperage: 1.3A
• Hertz: 60 Hz
• Suction Size: 1-1/2" MBT
• Discharge Size: 1-1/2" FPT/MBT
• Compatible With: Waterway
• Intake and Discharge: 1.5"
