Watco 38702-BN Trip Lever Trim Kit

Product Description

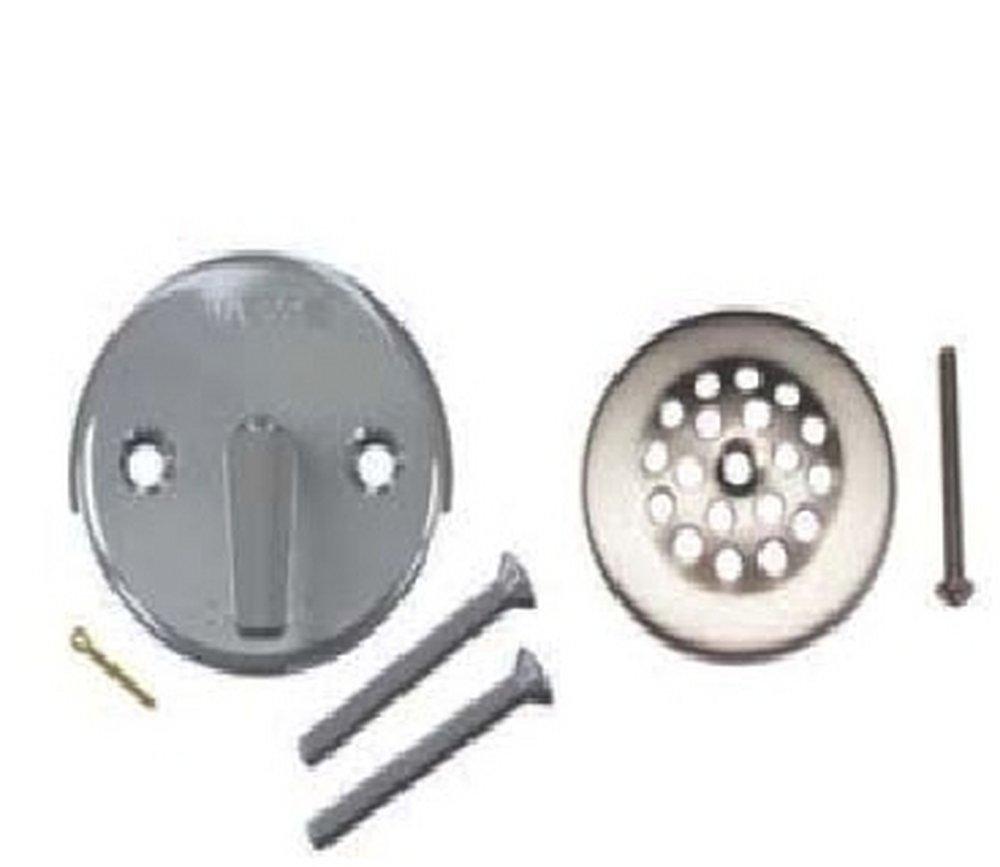

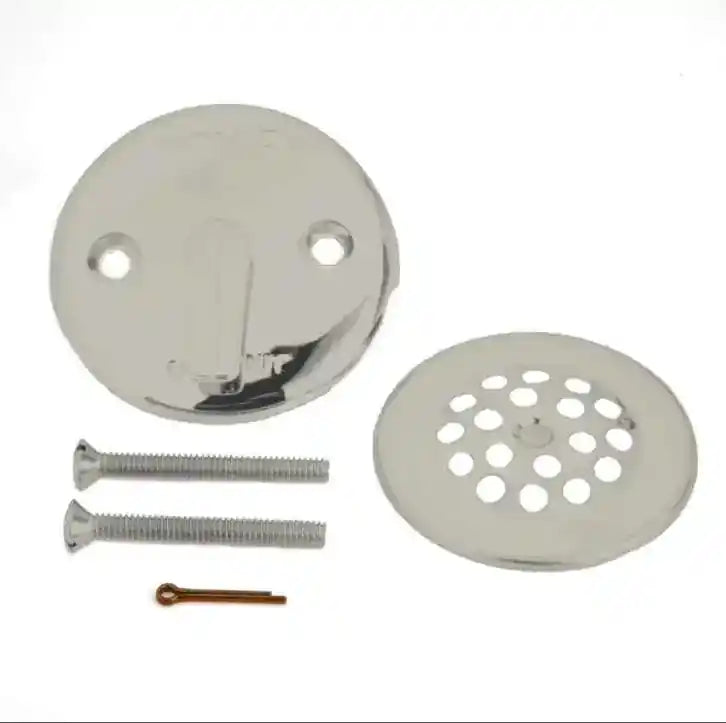

The WATCO 38702-BN Trip Lever Trim Kit is designed for use with Watco SLIP LOCK tub drains. The trim kit includes a trip lever handle, a flange, and a stopper. It is designed to provide reliable mechanical operation and durable service life in tub waste and overflow assemblies.

• Designed for use with Watco SLIP LOCK tub drains
• Includes a trip lever handle, a flange, and a stopper
• Constructed from corrosion-resistant materials

Product Highlights

This trim kit is compatible with most standard SLIP LOCK configurations and meets industry standards for mechanical and dimensional performance.

Product Information

Standard Information

• Brand: WATCO
• Manufacturer Part Number: 38702-BN
• Country of Origin: USA

Technical Specifications

• Product Type: Bath Waste and Overflow Trip Lever Trim Kit
• Finish: Brushed Nickel (BN)
• Product Line: Trim Kits/Tub Close
• Model: 38702-BN
• Manufacturer: Watco Manufacturing
• Product Name: Trip Lever Trim Kit with Linkage and Strainer Body
• Part Number: 1899532
• Alternate Part Number: 1899532
• System Compatibility: Watco SLIP LOCK® and standard 1-1/2" bath waste systems
• Material Composition: Brass and zinc components with stainless hardware
• Mounting Type: Wall-mounted overflow plate and drain-mounted strainer body
• Actuation Type: Mechanical trip lever with linkage assembly
• Included Components: Trip lever faceplate assembly, Two (2) overflow plate screws, Cotter pin and linkage rod assembly, Strainer body dome cover with screws
• Strainer Thread Size: 1-1/2" NPSM
• Faceplate Diameter: 3-1/8" (nominal)
• Overflow Plate Type: Two-screw mounting
• Operating Mechanism: Lift and turn trip lever connected to adjustable linkage
• Corrosion Resistance: Meets ASTM B456 requirements for decorative nickel finishes
• Pressure Rating: Non-pressure drain system component
• Temperature Rating: Up to 180°F (82°C)
• Compliance: ASME A112.18.2 / CSA B125.2 (waste fittings)
• Installation Standard: Compatible with IAPMO/UPC-listed bath waste systems
• Item Type: Tub and Shower Parts
