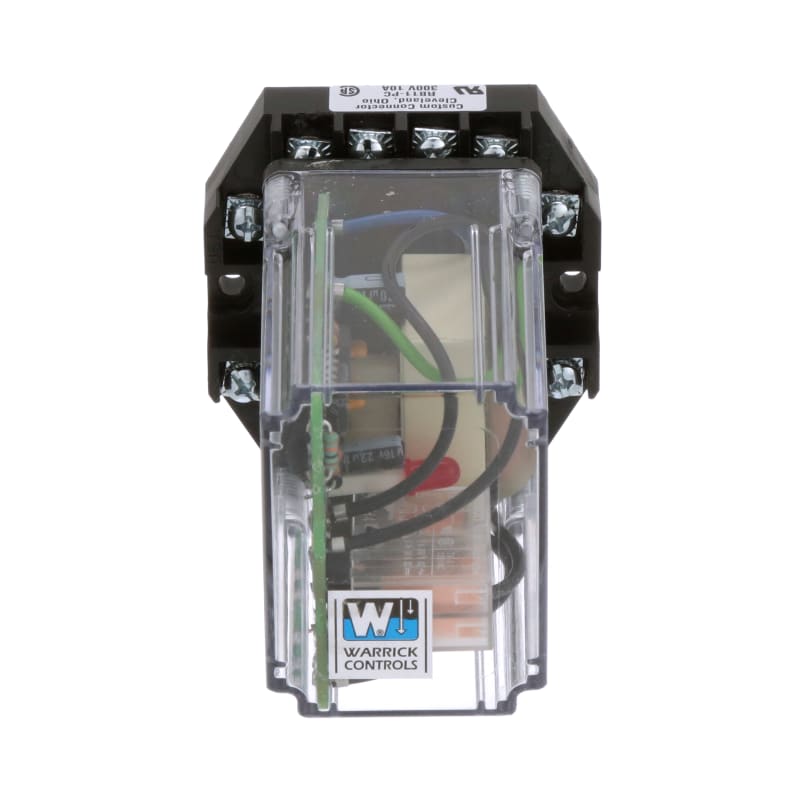

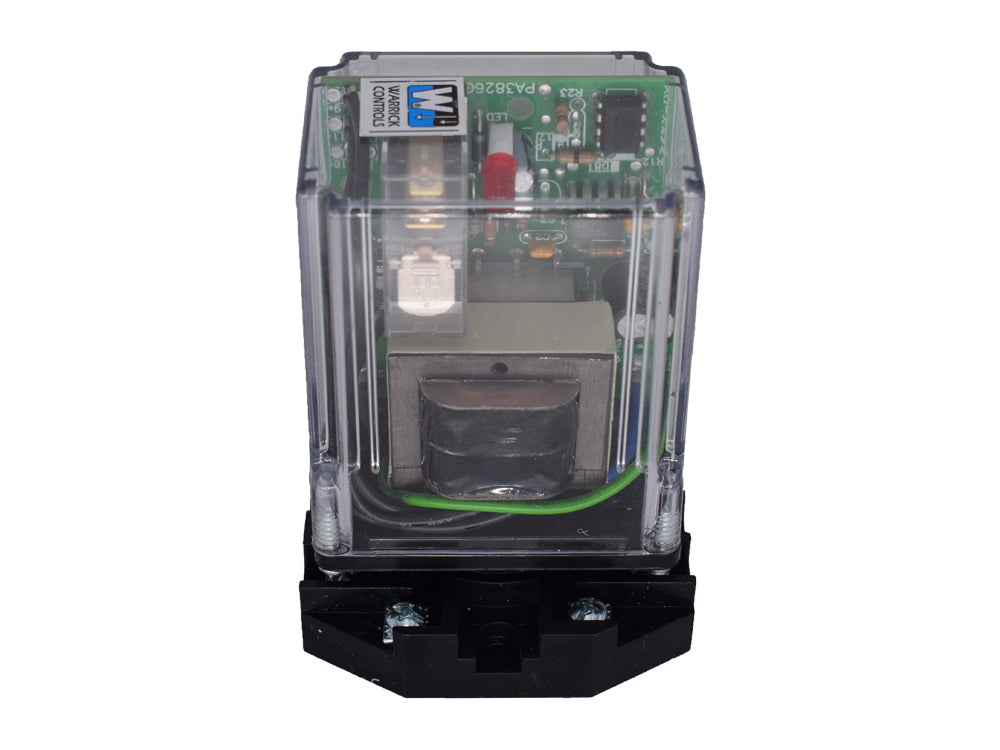

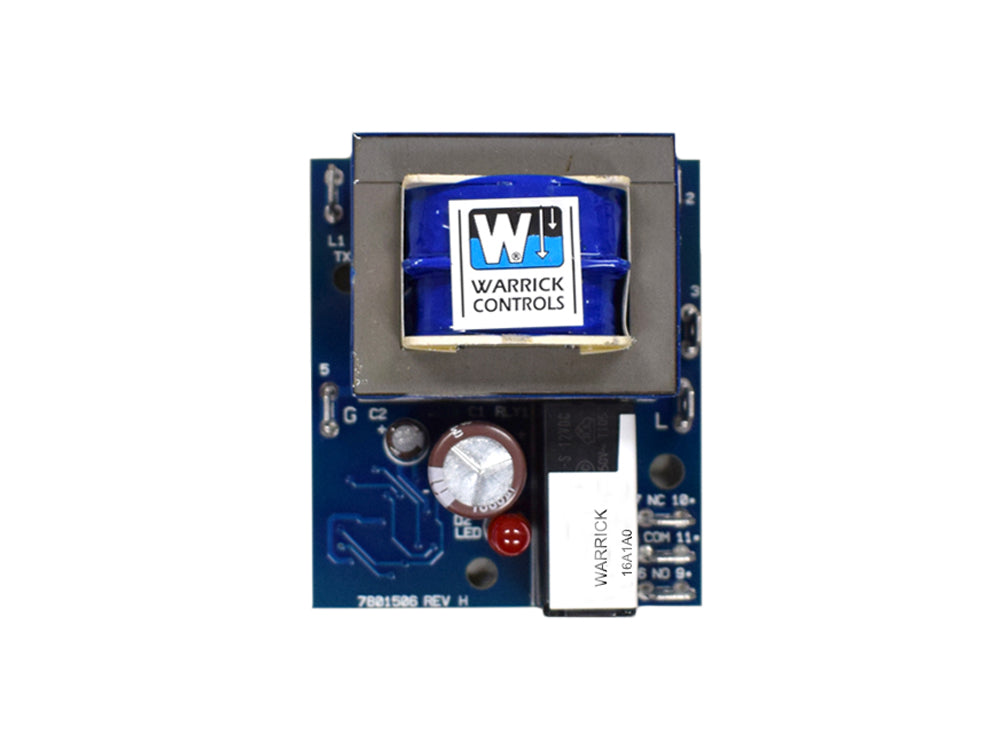

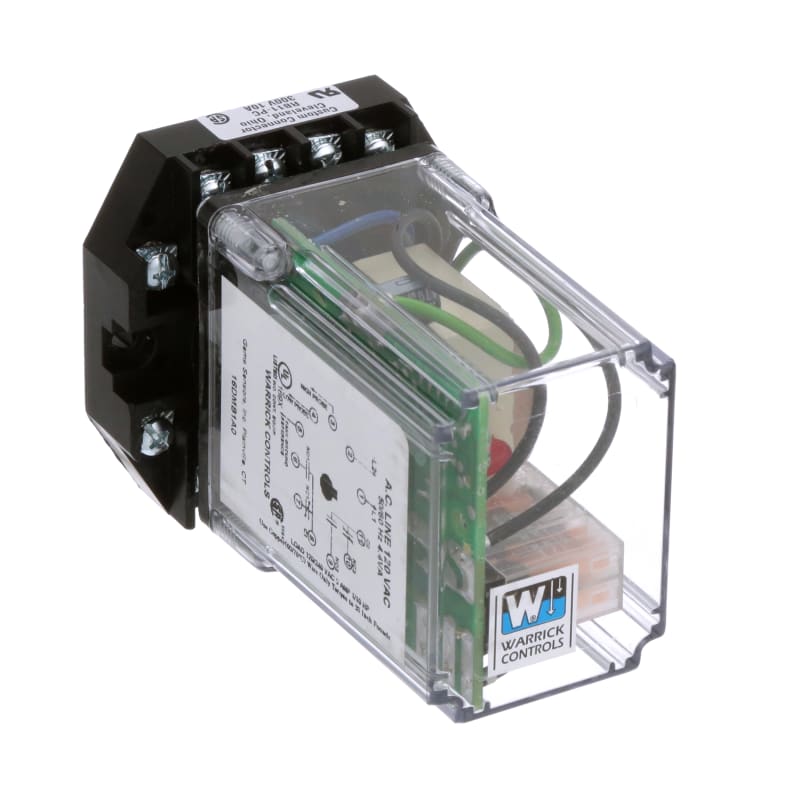

WARRICK-GEMS SENSORS & CONTROLS 16DMB1M0 Level Controller

Product Description

The WARRICK-GEMS SENSORS & CONTROLS 16DMB1M0 is a reliable level controller designed for single-level or differential applications. It features a solid-state design with a DPDT load contact, which means no slave relays are needed. Its compact size is convenient for limited panel space, and the unit connects easily with its 11-pin octal plug. This model is U.L. listed and includes LED indicators for operational status, ensuring reliable performance at all times.

• Features DPDT load contacts, eliminating slave relays.
• Compact, modular plug-in design saves panel space.
• Compatible with general-purpose single-level or differential applications.

Product Highlights

This level controller is ideal for environments needing efficient level sensing and control. With a high sensitivity of 10K ohms, it provides accurate readings and operation in various conditions.

Product Information

Standard Information

• Manufacturer: Warrick (Gems Sensors)
• MPN: 16DMB1M0

Technical Specifications

• Mounting Style: Panel Mount
• Isolation Voltage: 12 VAC
• Maximum Operating Temperature: 150 °F (65 °C)
• Minimum Operating Temperature: -40 °F (-40 °C)
• Supply Voltage: 120 VAC
• Temperature Operating Range: -40 to 150 °F (-40 to 65 °C)
• Overall Width: 2.5 inches (63 mm)
• Overall Depth: 3.5 inches (89 mm)
• Overall Length: 2.6 inches (66 mm)
• Type: Liquid Level Controller
• Termination: Screw Connector
• Current Rating: 5 A
• Contact Configuration: 2 Normally Open, 2 Normally Closed
• Sensitivity: 10K ohms
• Control Style: Plug-In Module
• Secondary Voltage: 12 VAC
