Product Description

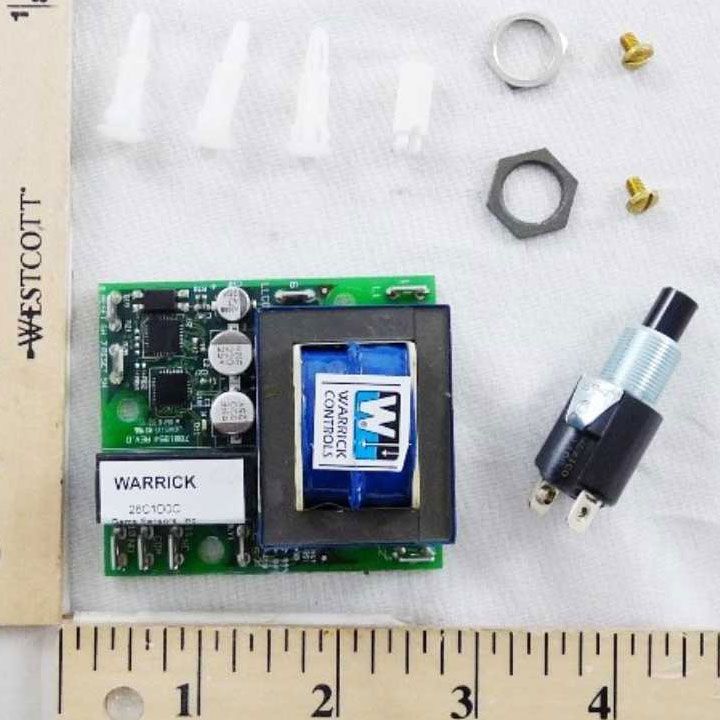

The Warrick 26C1D0C is a liquid level control board designed for low water cut-off applications. It operates on one hundred twenty volts and is configured for direct action without an enclosure, utilizing a retrofit standoff style. The control features a single pole double throw relay with both normally open and normally closed paths. It includes a three-second built-in time delay and a manual reset option. The design allows for a remote-mounted, normally closed pushbutton and comes equipped with spade terminals for easy connections.
- General purpose application
- Manual control reset feature
- Remote-mountable pushbutton
Product Highlights
This product is essential for monitoring water levels and ensuring safe operation in various systems. It features a user-friendly design that simplifies installation in retrofit scenarios.
Product Information
Standard Information
Technical Specifications
-
MPN: 26C1D0C
-
Application: General Purpose
-
Voltage: 120V
-
Installation Method: Standoff Panel
-
Control Reset: Manual
-
Enclosure: None
-
Max Water Temperature: 150
-
Max Ambient Temperature: 150
-
Ohms Sensitivity: 26,000 ohm
-
Weight: 0.50
