Ward Mfg 66246733630 Street Elbow 3/4 in Nominal 150 lb E.BMS45L

Product Description

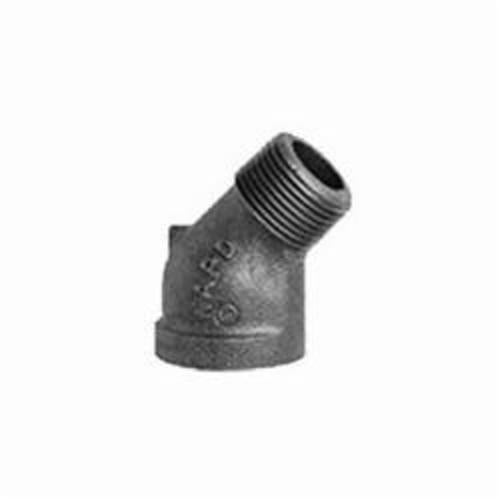

The Ward Mfg Street Elbow, MPN 66246733630, is an elbow fitting designed for connecting pipes at a 45 degree angle. It features a nominal size of three-fourths of an inch with a MNPT x FNPT end style. This product is constructed from malleable iron and is rated for a pressure class of 150 lb.

• Constructed from durable malleable iron
• Temperature rating from -20 to 150 degrees Fahrenheit
• Meets ASME and ANSI standards

Product Highlights

This street elbow is suitable for various plumbing applications, including sprinkler and drainage systems. Its precise threading and chamfered openings ensure easy installation and a reliable connection.

Product Information

Standard Information

• Manufacturer: Ward Mfg
• UPC: 66246733630

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Black
• Fitting Type: 45 degree elbow
• Manufacturer Part Number: E.BMS45L
• Material: Malleable iron
• Nominal Size: 3/4 inch
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Standards/Approvals: ASME B16.14/B16.4/B1.20.1, ANSI B1.20.1, FM Approved, NSF 61-G, UL/ULC Listed, WW P521
• Temperature Rating: -20 to 150 degrees Fahrenheit
