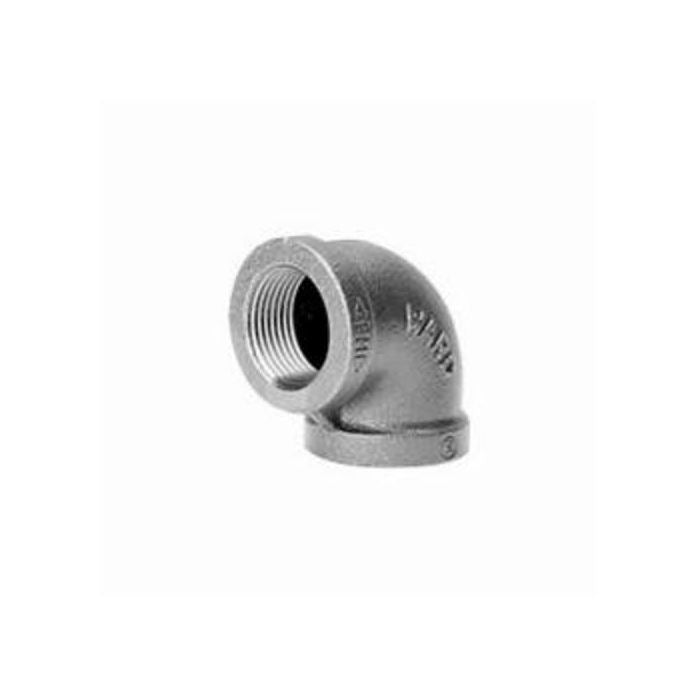

Ward E.BML 90 Deg Elbow 3/4 in (Class 150)

Product Description

Ward E.BML is a 90-degree malleable iron elbow designed for threaded pipe systems. This 3/4 in nominal FNPT fitting is SCH 40/STD and rated Class 150 (150 lb) with a 300 psi pressure rating and a temperature range of -20 to 150 deg F. The fitting features precision machining, chamfered openings, and an extra-strong cast construction for sprinkler, drainage, and general threaded piping installations.

• Material: malleable iron with precision machining and chamfered openings; thread type: FNPT
• Pressure/Class: Class 150 (150 lb), pressure rating 300 psi; Schedule: SCH 40/STD; temperature range -20 to 150 deg F
• Dimensions and fit: nominal size 3/4 in, center-to-end 1.31 in, thread length 1/2 in L, take-out 0.76 in

Product Highlights

90-degree malleable iron elbow, 3/4 in FNPT, Class 150 (300 psi), SCH 40/STD, temperature -20 to 150 deg F

Product Information

Standard Information

• Brand: WARD
• Manufacturer Part Number: E.BML
• Country of Origin: United States
