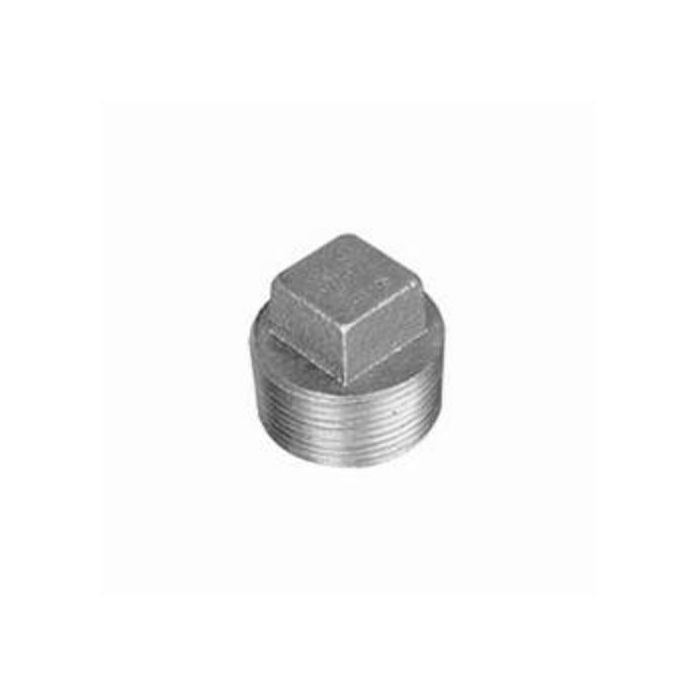

Ward 1.BP Square Head Cored Plug (1 in)

Product Description

Ward 1.BP is a cast iron square head cored plug with a 1 in MNPT connection for pipe fitting applications. Manufactured to ASTM A126 Class A and SCH 40/STD, the plug has a black finish and precision threading. It is rated Class 125 with a working pressure of 175 psi at 150 deg F and a temperature range of -20 to 150 deg F.

• Cast iron construction per ASTM A126 Class A with black finish; 1 in MNPT connection and square head cored design.
• Rated Class 125; 175 psi W.O.G. at 150 deg F and 125 psig for saturated steam; temperature range -20 to 150 deg F.
• Dimensions and machining: 13/16 in width across flats, 3/4 in thread length, 1/2 in square height; meets ASME B16.14, ANSI/ASME B1.20.1, ASME B16.4, UL, ULC, FM, NSF 61.

Product Highlights

1 in MNPT square head cored plug; ASTM A126 Class A cast iron; 175 psi; -20 to 150 deg F

Product Information

Standard Information

• Brand: WARD
• Manufacturer Part Number: 1.BP
• Country of Origin: Domestic
