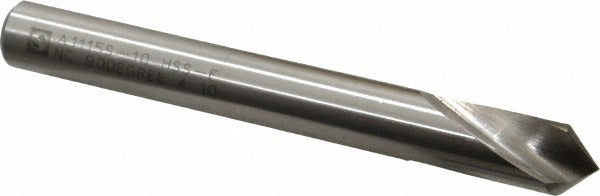

Walter-titex 5153694 Spotting Drill 10mm 90 Degree Hss

Product Description

The WALTER-TITEX 5153694 is a single-ended spotting drill designed to create precise pilot indentations that guide twist drills and prevent walking on entry. Built from high-speed steel with a bright, uncoated finish, it features a 90-degree point angle and a 10 mm cutting diameter. The overall length is 3.504 inches (89 mm), with a 0.984-inch (25 mm) flute length and a 10 mm straight-cylindrical shank. The two-flute spiral geometry promotes clean chip evacuation during the spotting operation. Machinists and tool-and-die professionals use this drill in general-purpose production and job-shop environments.

This spotting drill is suited for use on CNC machining centers, manual mills, and drill presses in both production and maintenance settings. Its 90-degree included angle matches common twist-drill geometries, helping to locate holes accurately before full-depth drilling. The right-hand cutting direction and straight shank allow direct mounting in standard ER collet chucks, drill chucks, and hydraulic toolholders. It is appropriate for use in steel, aluminum, cast iron, and similar workpiece materials in general-purpose machining applications.

Key Features

• 90-degree point angle matches common twist-drill geometries for accurate hole location
• 10 mm cutting diameter with matching 10 mm straight-cylindrical shank for straightforward toolholder compatibility
• High-speed steel construction provides toughness across a wide range of workpiece materials
• Bright, uncoated finish suitable for general-purpose spotting applications
• Two-flute spiral geometry promotes chip clearance during spotting
• Single-ended design, Series A1115S

Compatibility

Designed as a general-purpose spotting drill in the WALTER-TITEX A1115S series, compatible with standard straight-shank toolholders including ER collet chucks and drill chucks sized for 10 mm shanks.

Installation Notes

Installation and use should be performed by qualified machinists familiar with rotating cutting tool safety. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Verify that the toolholder bore and collet are clean and free of debris before clamping to maintain runout accuracy. Follow the machine manufacturer and applicable shop safety guidelines for speeds, feeds, and coolant application.
